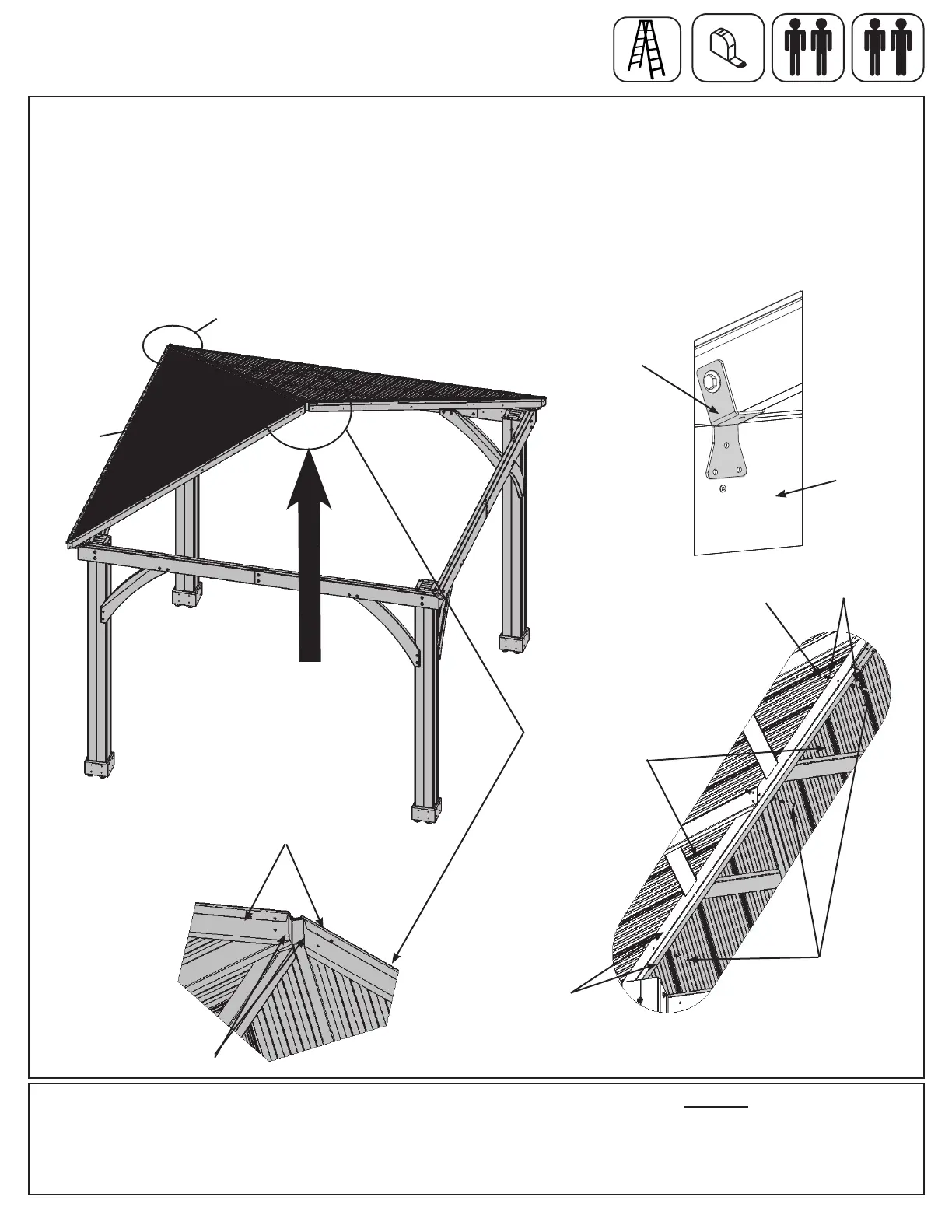

Step 11: Attach Roof Panels to Frame
Part 2
Fig. 11.4
C: Lift a second Roof Panel Assembly with Rafter Beam Brackets over Beam Assembly taking care not to drag
the panel on the beams. Make sure the middle Rafter Beam Bracket lines up to the centre mark and (729) Corner
LT and (737) Corner RT are ush with each other. One person must remain on the centre ladder to hold both
panels in place until three panels are up and secure. (g. 11.2, 11.3 and 11.4)
D: Starting at the bottom and working up connect Roof Panel Assemblies through (729) Corner LT and (737)
Corner RT with three 1/4 x 2-3/4” Hex Bolts (with two 1/4-5/16” large washers and one 1/4” lock nut). To align bolt
holes helper in the centre may have to push up the centre of the panels and others make sure corners are aligned.
Make sure all bolts are tight. (g. 11.2 and 11.5)
Fig. 11.2
Flush
Fig. 11.3
x 3
Fig. 11.5
Hardware
3 x 1/4 x 2-3/4” Hex Bolt
(1/4-5/16” large washer x 2, 1/4” lock nut)
Corner
LT & RT
1/4” Lock
Nut
1/4 x 2-3/4”
Hex Bolt
Roof Panel
Assembly
Make sure
corners are
aligned
Roof Panel
Assembly
Start at bottom and
work up the rafters
1/4-5/16”
Large Washer
One assembler
to support roof
panel(s) at all
times until secure
Corner
LT & RT
Rafter
Beam
Bracket
Beam
Assembly
Line middle
bracket to
centre mark
To Next Page
