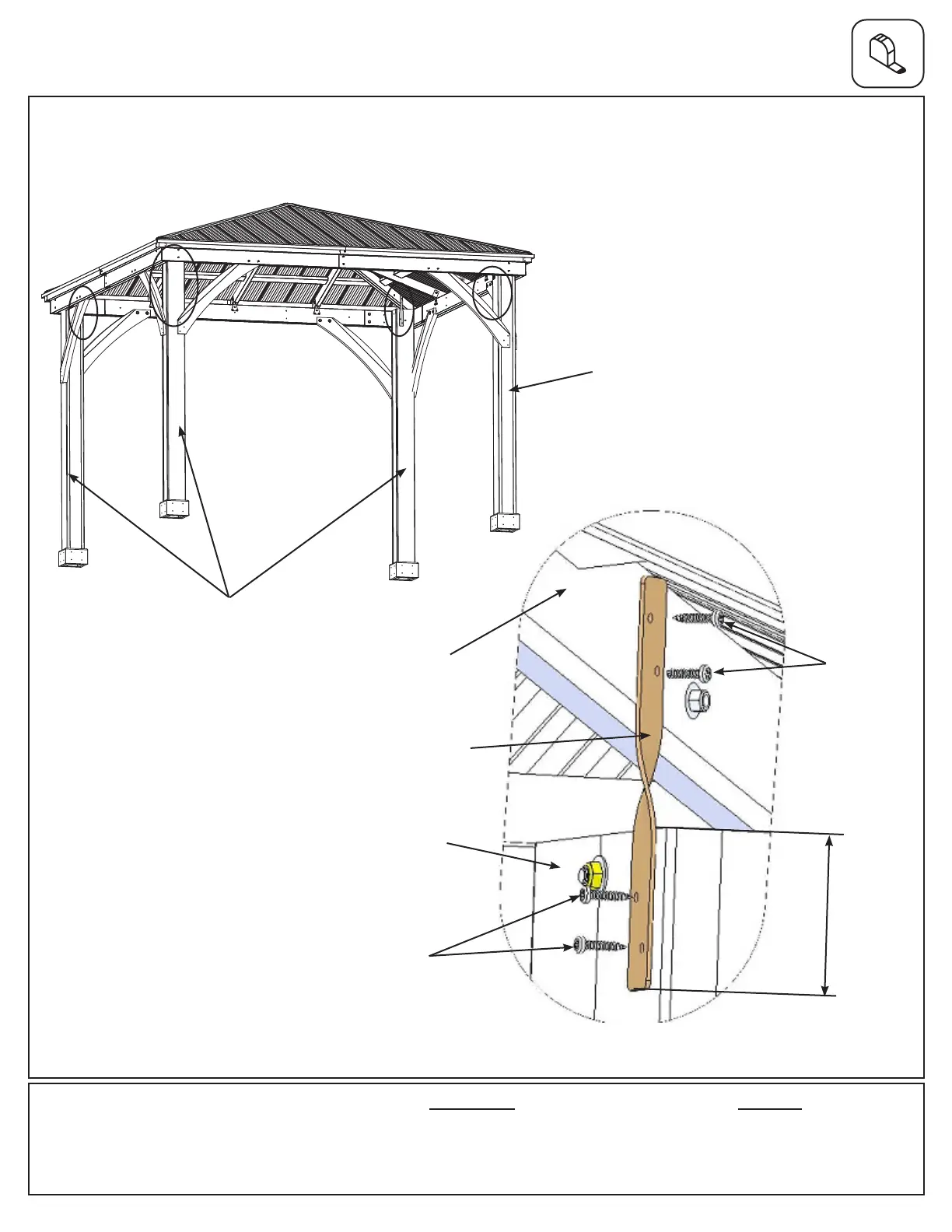

A: Measure 5-3/4”(146.1 mm) down from the inside of each (752) Post, place bottom of either 45° Twist Bracket
LT or 45° Twist Bracket RT at measured location then attach to (752) Post and (729) Corner LTs and (737) Corner
RTs with four #10 x 1-1/4” Pan Screws per bracket. (g. 20.1 and 20.2)
Step 20: Attach Twist Brackets
Components
2 x 45° Twist Bracket LT
2 x 45° Twist Bracket RT
45° Twist
Bracket
(LT/RT)
#10 x 1-1/4”
Pan Screw
Hardware
16 x #10 x 1-1/4” Pan Screw
Fig. 20.1
5-3/4”
#10 x 1-1/4”
Pan Screw
Fig. 20.2
Corner
LT & RT
Post
Post
Post
(146.1 mm)
