Using your Robertson Drill Bit,Fasten snaps
•Y06992-908 Male Snap x4 per post
From the top measure 4 inches down. Mark holes 4" from short side of Post for first snaps and 3" from Long side of Post.
Move curtain aside in order to measure snap locations.
•#12 Screw Bezel
Important
Hardware
Insect Screen Inst - Attach Male Studs
Using your Robertson Drill Bit,Fasten snaps
•Y06992-908 Male Snap x4 per post
From the top measure 4 inches down. Mark holes 4" from short side of Post for first snaps and 3" from Long side of Post.
Move curtain aside in order to measure snap locations.
•#12 Screw Bezel
Important
Hardware
Insect Screen Inst - Attach Male Studs

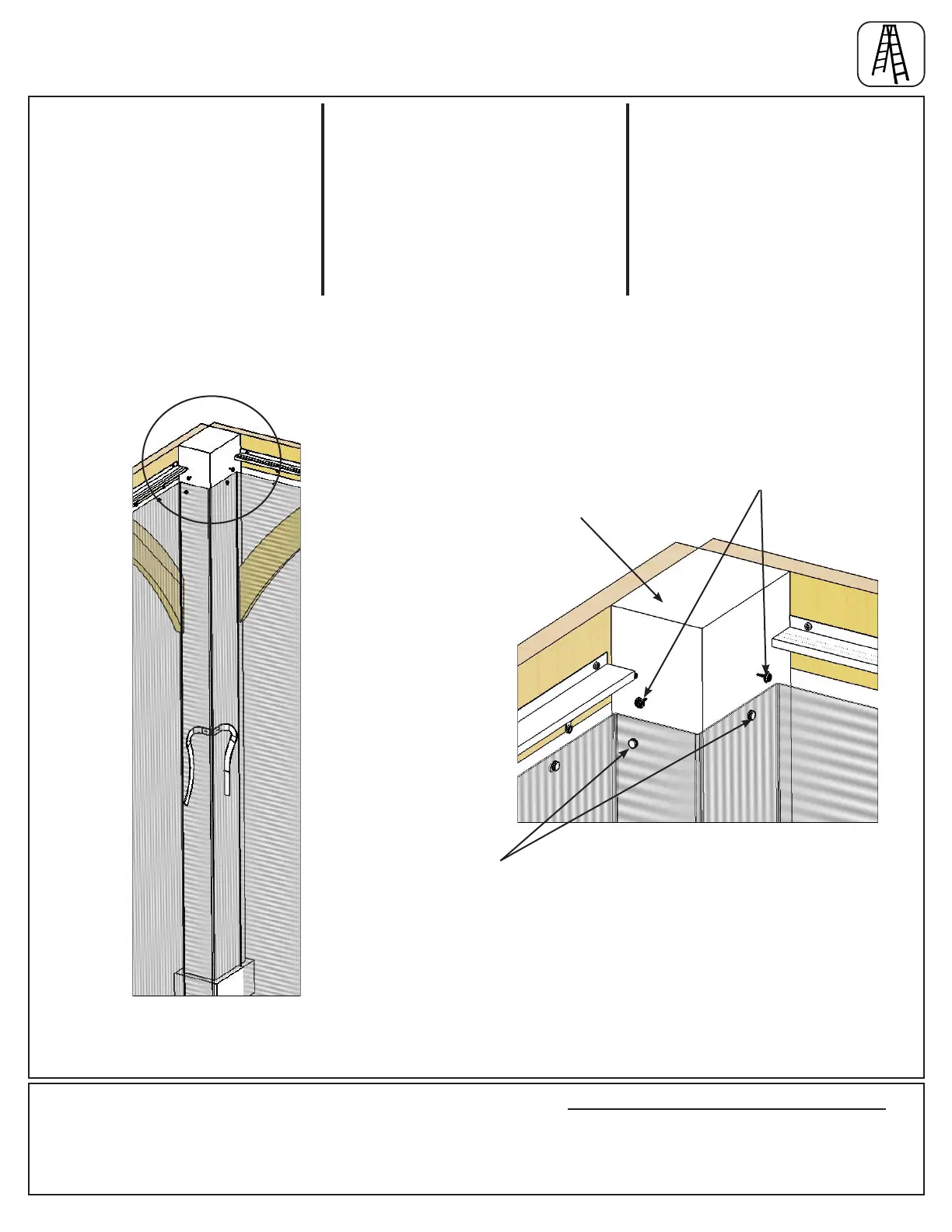

A: At the top of each Post
Assembly locate Button Snaps
on Insect Panel then fasten
Male Snaps with Screw to Post
Assembly so it lines up with the
Button Snap. Connect Button
Snaps to Male Snaps. (F7.1 and
F7.2)
F7.1
F7.2
8 x Male Snap with Screw / Broche Macho con Tornillo /
Fixation mâle avec vis
Hardware / Tornillos y accesorios / Quincaillerie
Male Snap with Screw / Broche
Macho con Tornillo / Fixation
mâle avec vis
Top of Post Assembly / Parte
superior del Ensamble del Poste /
Dessus de l’assemblage de montant
Post Assembly /
Ensamble del Poste /
Assemblage de montant
Button Snap / Botón
a presión / Fixation
à bouton
Step 7: Attach Insect Panels to Posts - Paso 7: Fijación de los paneles mosquiteros
a los postes - Étape 7 : Fixation des panneaux pour insecte aux montants
A: En la parte superior de cada
Ensamble del Poste, ubique los
Botones a Presión de los Paneles
Mosquiteros y ajuste los Broches
Machos con Tornillo al Ensamble del
Poste de manera que coincidan con
los Botones a Presión. Conecte los
Botones a Presión con los Broches
Machos. (F7.1 y F7.2)
A: Au haut de chaque Assemblage
de montant, situez les Fixations
à bouton sur le Panneau pour
insecte, puis posez les xations
mâles à l’assemblage de montant
en les alignant avec les Fixations
à bouton. Fermez les xations en
les joignant. (F7.1 et F7.2)
