19.1 x 127 x 177.8mm (3/4 x 5 x 7")
16pc. (738) -
Plinth
Y50142-738
34.9 x 165.1 x 926.9mm (1-3/8 x 6-1/2 x 36-1/2")
4pc. (739) -
Short Left Gusset
Y70142-739

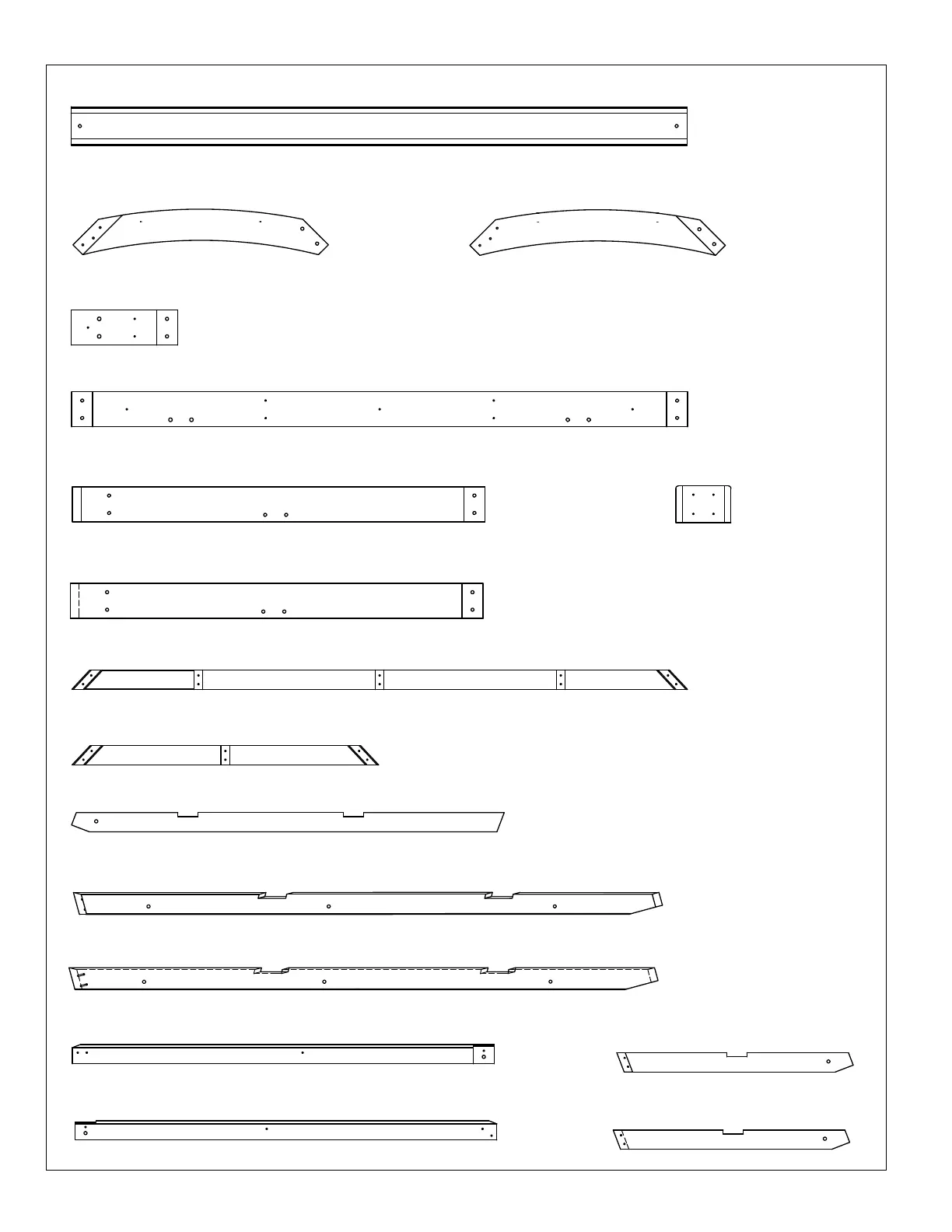

Part Identification ( )
Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.
139.7 x 139.7 x 2235.2mm (5½ x 5½ x 88")
4pc. (752) -
Post
Y70142-752
34.9 x 165.1 x 926.9mm (1-3/8 x 6-1/2 x 36-1/2")
4pc. (740) -
Short Right Gusset
Y70142-740
Y50142-726
31.8 x 127 x 1497mm (1-1/4 x 5 x 58-15/16")
4pc. (726) -
Right Outside Beam
Y50142-732
28.6 x 69.9 x 1112.5mm (1-1/8 x 2-3/4 x 43-3/4")
4pc. (732) -
Short Strap
31.8 x 127 x 385.8mm (1-1/4 x 5 x 15-3/16")
8pc. (727) -
Inside Short Beam
Y50142-727
Y50142-728
31.8 x 127 x 2235.2mm (1-1/4 x 5 x 88")
4pc. (728) -
Inside Long Beam
31.8 x 127 x 1497mm (1-1/4 x 5 x 58-15/16")
4pc. (725) -
Left Outside Beam
Y50142-725
28.6 x 69.9 x 2234.5mm (1-1/8 x 2-3/4 x 88")
4pc. (733) -
Strap Long
Y50142-733
Y50142-729
25.4 x 80 x 2137mm (1 x 3-1/8 x 84-1/8")
4pc. (729) -
Corner LT
Y50142-734
28.6 x 69.9 x 858mm (1-1/8 x 2-3/4 x 33-3/4")
4pc. (734) -
Rafter Short Right
Y50142-731
28.6 x 69.9 x 1530.8mm (1-1/8 x 2-3/4 x 60-1/4")
4pc. (731) -
Fascia Left Short
28.6 x 69.9 x 1570mm (1-1/8 x 2-3/4 x 61-13/16")
4pc. (736) -
Rafter
Y50142-736
25.4 x 80 x 2137mm (1 x 3-1/8 x 84-1/8")
4pc. (737) -
Corner RT
Y50142-737
Y50142-730
28.6 x 69.9 x 1530.8mm (1-1/8 x 2-3/4 x 60-1/4")
4pc. (730) -
Fascia Right Short
Y50142-735
28.6 x 69.9 x 858mm (1-1/8 x 2-3/4 x 33-3/4")
4pc. (735) -
Rafter Short Left
