Hardware
8 x #8 x 2-1/2” Wood Screw

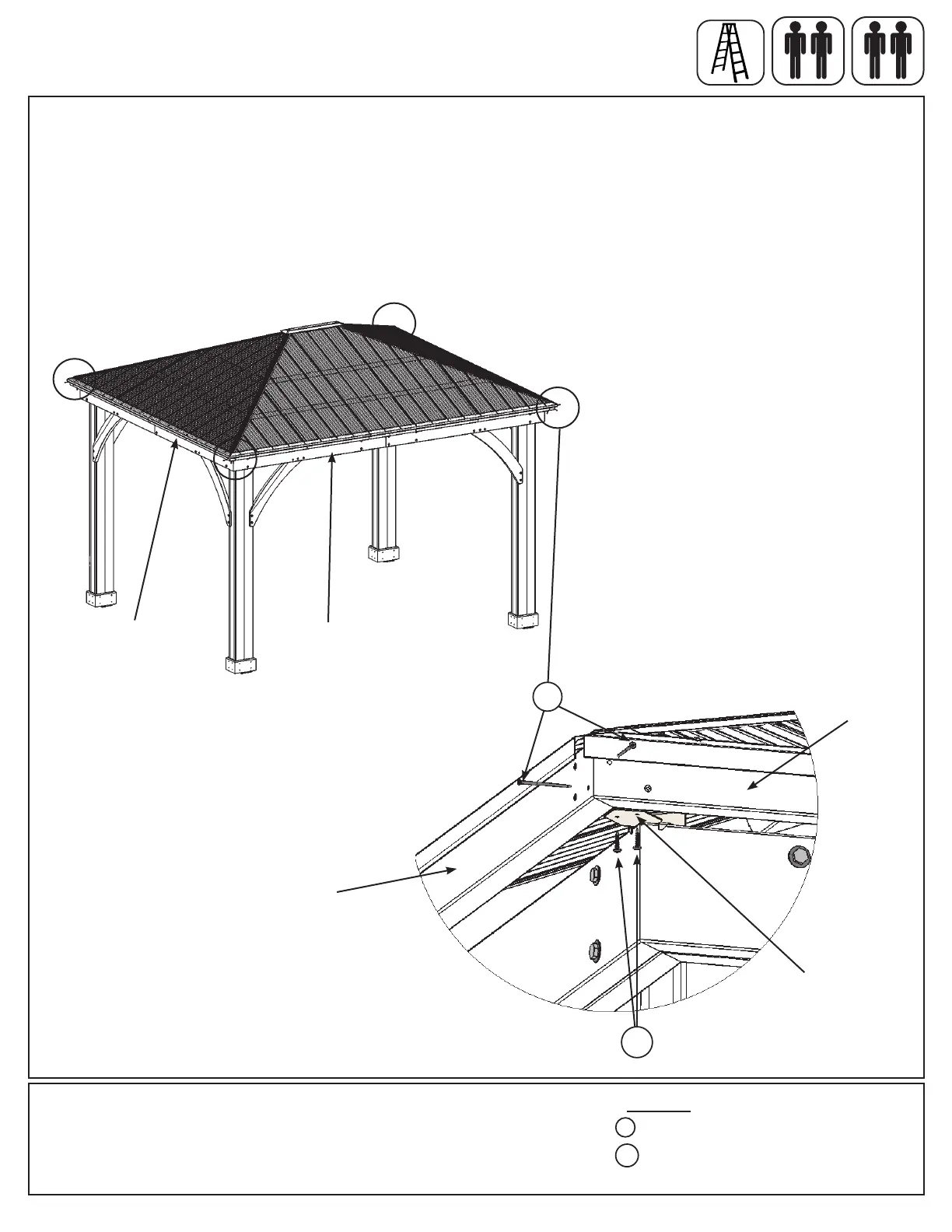

A: Make sure middle Roof to Beam Brackets are ush and tight to the Beam Assemblies. Lift in center if needed.
B: From outside the assembly attach Roof Panel Assemblies together at the ends of the Fascia Beam
Assemblies with two S3 per corner. A helper may need to lift the center of the roof to bring the corners tight
together. (F20.1 and F20.2)
C: Align Roof Panel Assemblies to sit centered on Roof to Post Brackets then attach with two S10 per bracket.
(F20.2)
F20.1
F20.2
Fascia Beam
Assembly
Large Fascia
Beam Assembly
Large Fascia
Beam Assembly
Roof to Post
Bracket
Fascia Beam
Assembly
Step 20: Secure Roof Corners
x 3
S3
S10
8 x #8 x 1” Pan Screw
S3
S10
To Next Page
