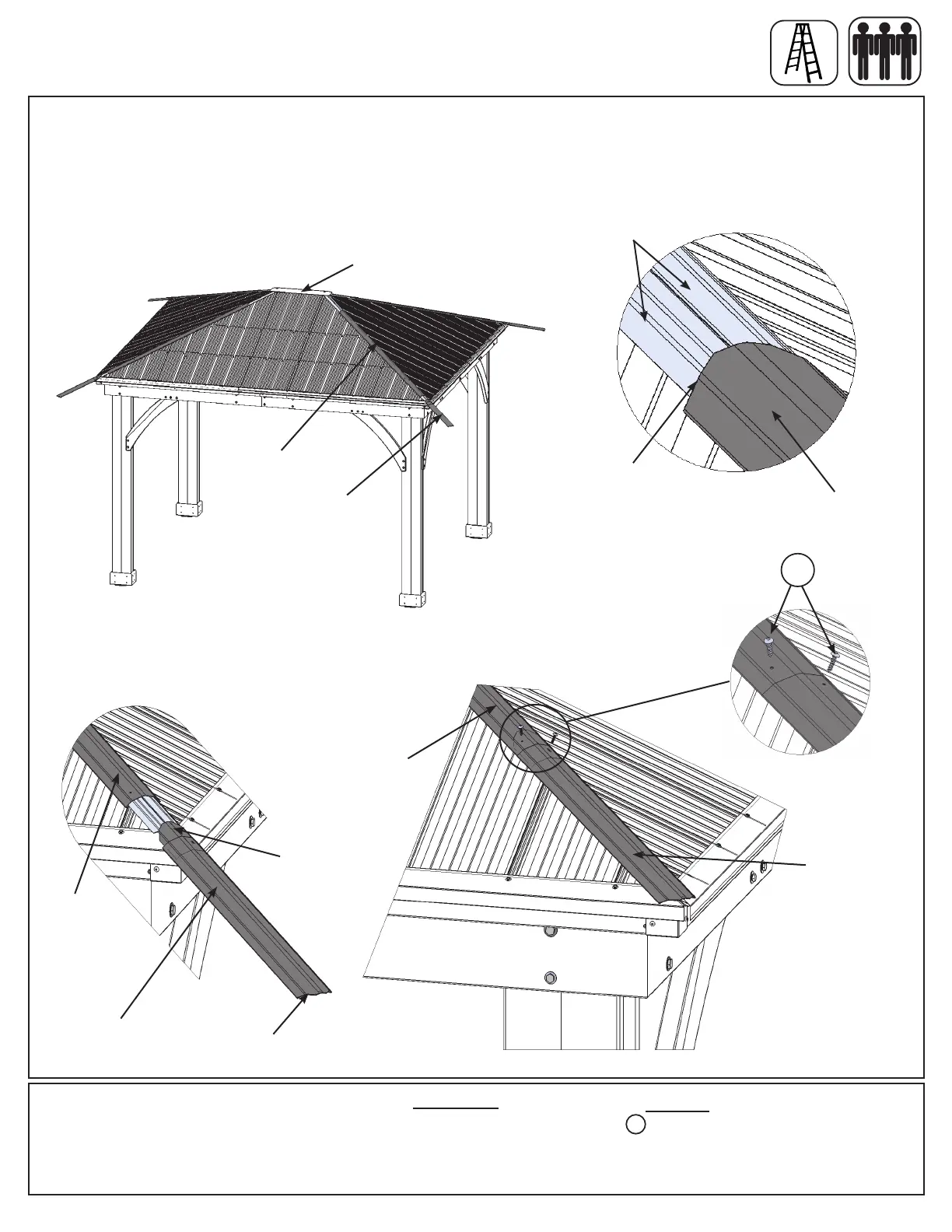

A: On each corner of the assembly slide one Ridge Cap Long 81.5 over the Ridge Clips from the bottom up, with
cut end leading. Slide Ridge Cap Short 25.2 over the Ridge Clips leading with the insert end to push the Ridge
Cap Long 81.5 to the top. Lift Peak Cap Long by pushing up the Peak Loop so Ridge Cap Long 81.5s t under
Peak Cap Long. Make sure the holes align then attach with two SM0 per Ridge Cap set. (F24.1, F24.2, F24.3,
F24.4 and F24.5)
B: Tighten Loop to secure Roof Peak Set.
Step 24: Attach Ridge Caps to Roof Panels
Hardware
Components
4 x Ridge Cap Long 81.5
4 x Ridge Cap Short 25.2
Ridge Cap
Short 25.2
Ridge Clip
102.5
F24.1
F24.3
F24.4
x 3
Cut End
Note: To help Ridge Caps
slide on easier use a
lubricant such as liquid soap.
F24.2
Ridge Cap
Long 81.5
Insert End
F24.5
Peak Cap
Long
Folded
End
Ridge Cap
Short 25.2
Ridge Cap
Long 81.5
Ridge Cap
Short 25.2
Ridge Cap
Long 81.5
Ridge Cap
Long 81.5
SM0
8 x #8 x 3/4” Sheet Metal Screw
SM0
