53 support@yardistrystructures.com

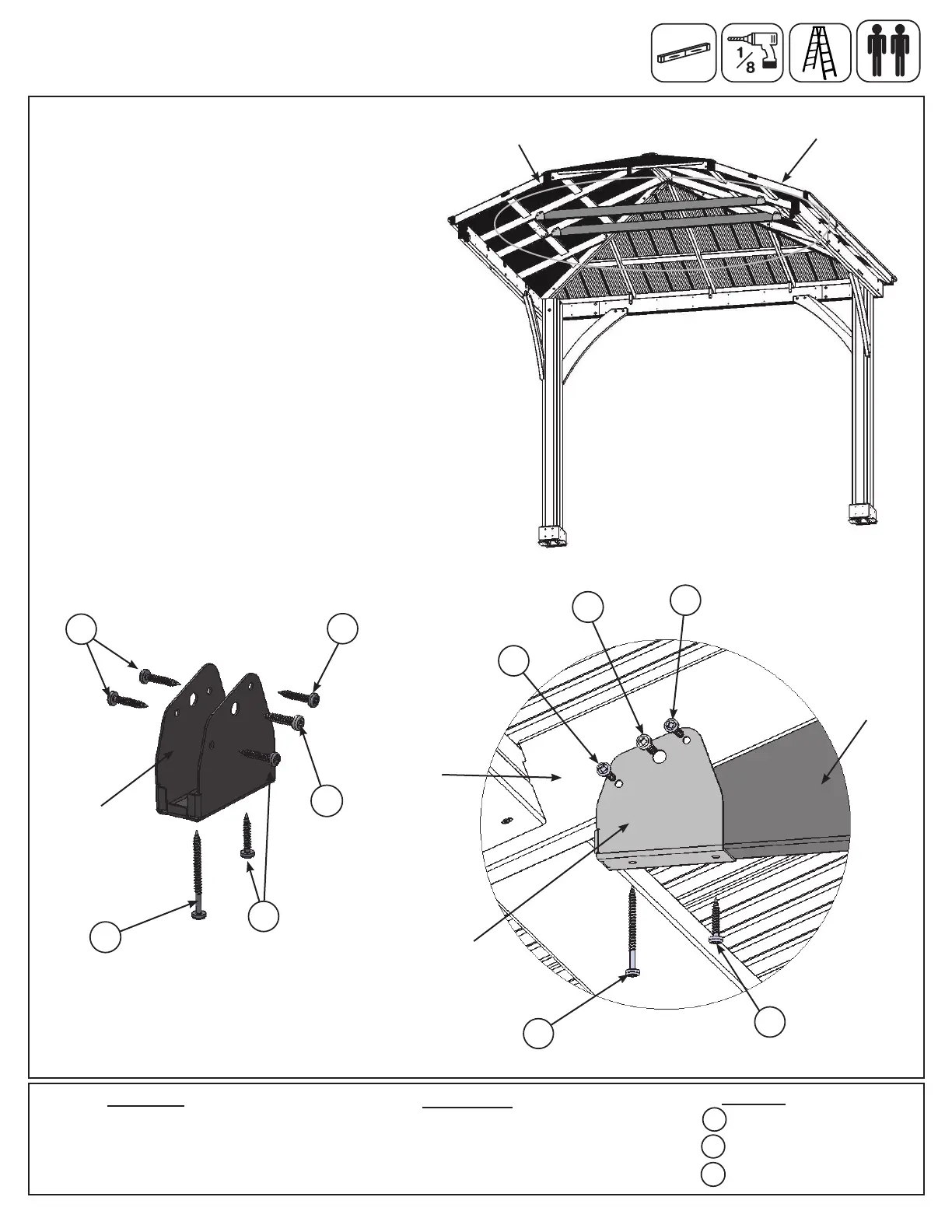

A: Attach one Tie Wrap Bracket to each end of
one (2205) with one S12 per bracket using the
inside holes. (2205) is tight to end of bracket.
(F25.1, F25.2 and F25.3)
B: With a helper place (2205) with brackets
against a (2206) on each Large Roof Panel so
(2205) is tight to (2206) and level. Attach Tie
Wrap Bracket to (2206) with two S12 on both
sides of each bracket and one S34 on one side of
each bracket. (F25.1, F25.2 and F25.3)
C: Pre-drill with a 1/8” drill bit and secure Tie
Wrap Brackets to (2205) and (2206) with one S23
per bracket. (F25.1, F25.2 and F25.3)
D: Repeat Steps A to C for a second (2205).
Components:
4 x Tie Wrap Bracket
Wood Parts
2 x (2205) Tie
Hardware
F25.1
(pre-drill before installing)
(2205)
(2206)
Tie Wrap
Bracket
Parts removed
for clarity
Step 25: Attach Tie Wrap Brackets and Ties
F25.2
F25.3
Tie Wrap
Bracket
Large Roof
Panel
Large Roof Panel
S12
S12
S12
S12
S12
S12
S23
S34
20 x #10 x 1-1/4” Pan Screw
S12
4 x #10 x 2-1/2” Pan Screw
S23
4 x #12 x 1-1/4” Pan Screw
S34
S34
S23
