Yardistry YM12935 - Step 4: Long Beam Assembly Part 2

18 support@yardistrystructures.com
4- Inside End Beam (1094)
2- Inside Beam Long (1079)
2- Right Outside Beam Long -(1095)
2- Left Outside Beam Long -(1096)
36 - #8 x 2-1/2" W.S
4- Inside End Beam (1094)
2- Inside Beam Long (1079)
2- Right Outside Beam Long -(1095)
2- Left Outside Beam Long -(1096)
36 - #8 x 2-1/2" W.S
Hardware
32 x #8 x 2-1/4” Wood Screw
D: Place one Outside Long Beam Assembly tight to one Long Beam End Assembly so the ends are ush. Match
the bolt holes in each (1094) Inside End Beam and (1079) Inside Beam Long with the bolt holes in (1095) Right
Outside Beam Long and (1096) Left Outside Beam Long. Attach with 16 #8 x 2-1/4” Wood Screws. (F4.4 and
F4.5)
E: Repeat Step D to make a second Long Beam Assembly.

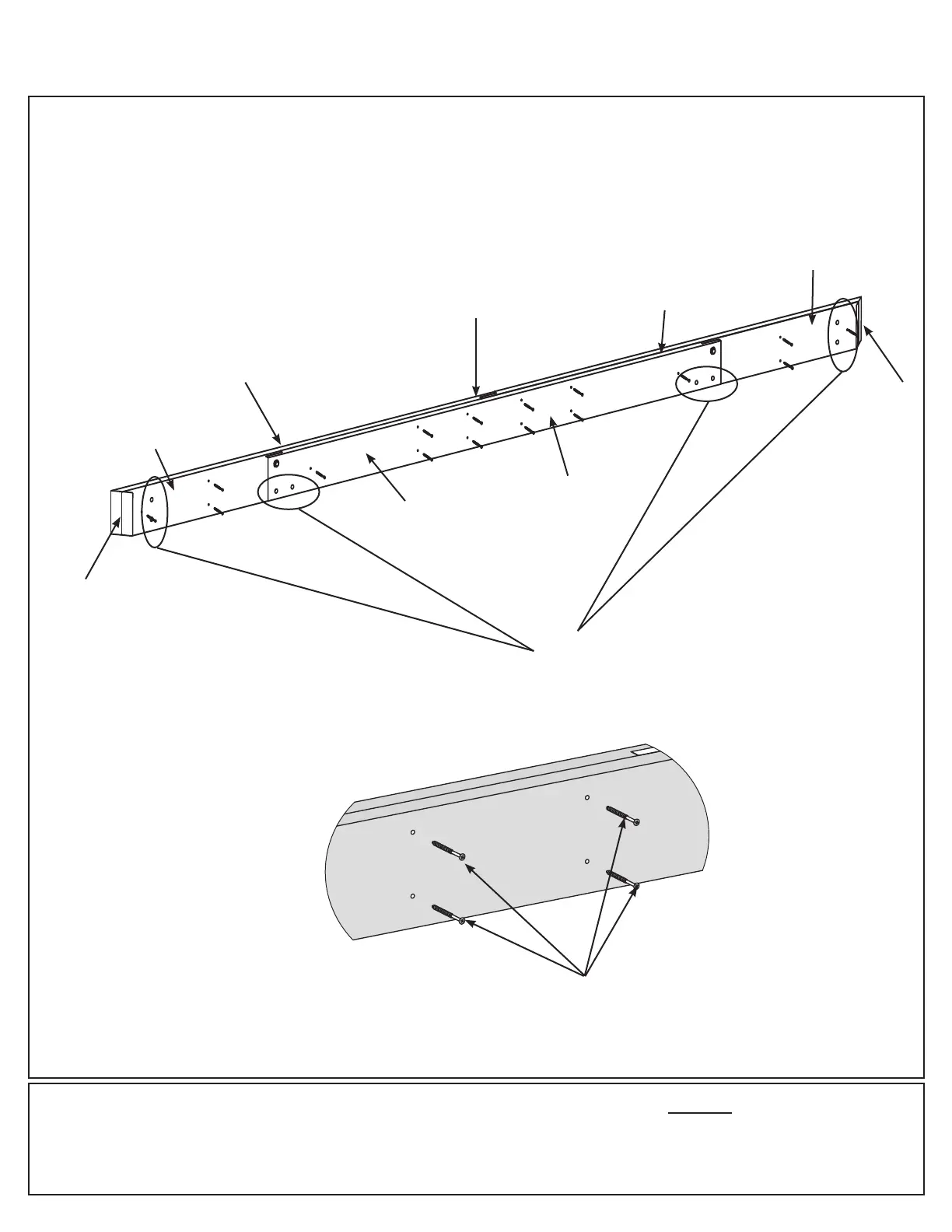

Step 4: Long Beam Assembly
Part 2
Long Beam
End Assembly
Outside Long
Beam Assembly
F4.4
Flush
Flush
#8 x 2-1/4” Wood Screws
(x 16 per assembly)
F4.5
(1094) Inside
Beam End
(1095) Right Outside
Beam Long
(1096) Left Outside
Beam Long
(1094) Inside
Beam End
Match
bolt
holes
Hint: Use bolts at
both ends to line up
bolt holes. Remove
bolts once step is
complete
(1079) Inside
Beam Long
