Yardistry YM12935 - Step 5: Frame Assembly Part 1 - Short Side

19 support@yardistrystructures.com
Washer)
4- 5/16 x 4-3/4" Lag Screw (5/16
4- 3/8 x 10" Hex Bolts
(2x 3/8 large washer, 3/8 Lock nut)
2- Short Beam Assemblies
4- Posts -Y70000-1100
4- 5/16 x 4-3/4" Lag Screw (5/16
Washer)
4- 3/8 x 10" Hex Bolts
(2x 3/8 large washer, 3/8 Lock nut)
2- Short Beam Assemblies
4- Posts -Y70000-1100
4- 5/16 x 4-3/4" Lag Screw (5/16
Washer)
4- 3/8 x 10" Hex Bolts
(2x 3/8 large washer, 3/8 Lock nut)
2- Short Beam Assemblies
4- Posts -Y70000-1100
F5.1
Hardware
4 x 3/8 x 10” Hex Bolt (3/8” large washer x 2, 3/8” lock nut)
3/8”
Lock
Nut
3/8 x 10”
Hex Bolt
Short Beam
Assembly
Post Assembly
Post
Assembly
Short Beam
Assembly
Short Side
3/8” Large
Washer
Use
bottom
hole
Step 5: Frame Assembly
Part 1 - Short Side
F5.2
Flush

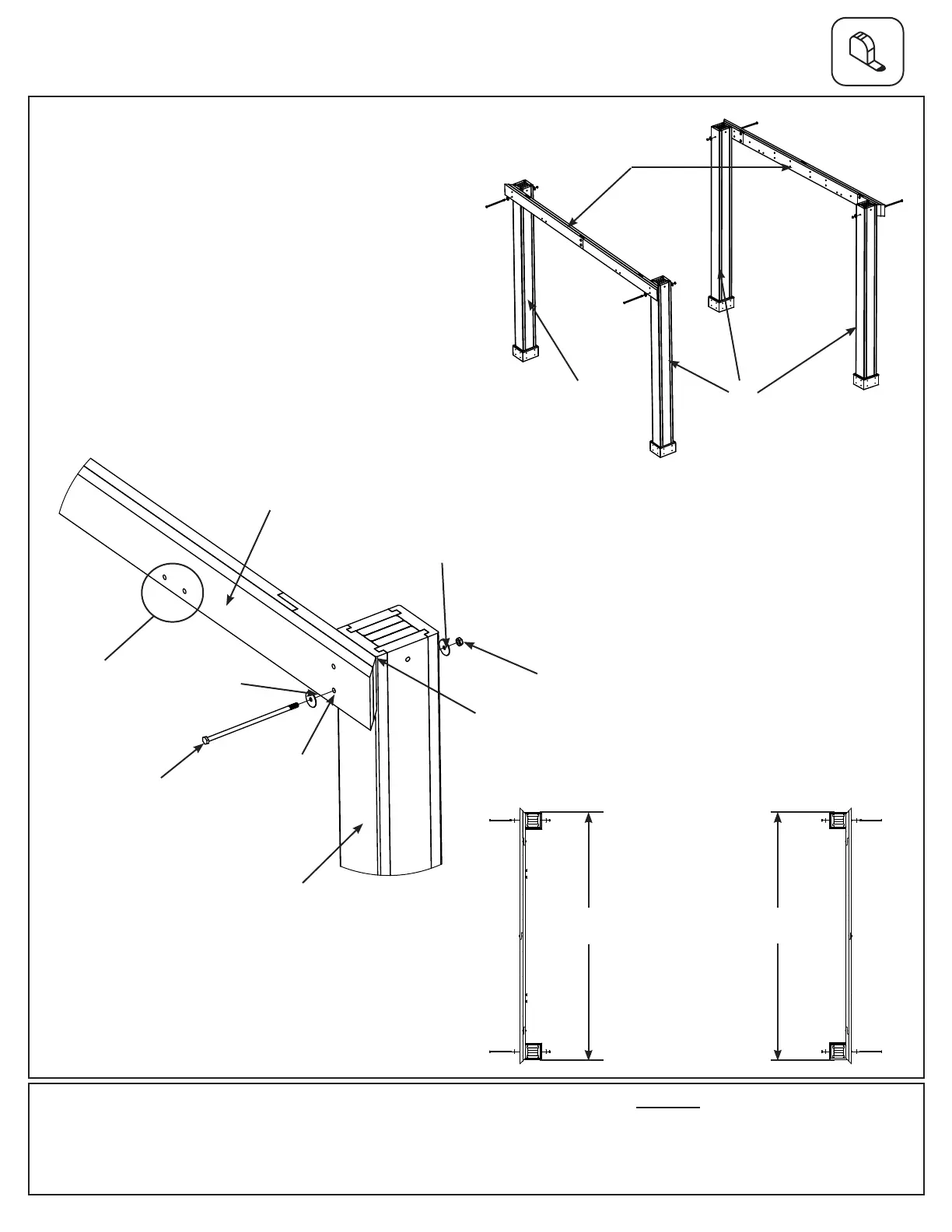

A: On a hard, at surface place one Short Beam
Assembly against the outside of two Post Assemblies
on the short sides, ush to the tops and outside corners.
Notice bolt holes are towards the bottom. Attach Beam
to Post, through the bottom hole, with one 3/8 x 10” Hex
Bolt (with two 3/8” large washers and one 3/8” lock nut)
per post. (F5.1 and F5.2)
The distance from the outside of one Post Assembly to
the outside of the second Post Assembly should be 9’
1-7/8” (2.791m). See F5.3 for accurate positioning of
Posts.
B: Repeat Step A for second Short Beam Assembly.
These will now be referred to as Short Side Assemblies.
(F5.1 and F5.2)
Notice bolt
holes towards
the bottom
3/8” Large
Washer
Post
Assembly
2.791 m
9’ 1-7/8”
F5.3
2.791 m
9’ 1-7/8”
