Yardistry YM12935 - Step 5: Frame Assembly Part 3 - Short Side

21 support@yardistrystructures.com
4- 5/16 x 4-3/4" Lag Screw
(5/16" Flat Washer)
8- 1/4 x 1-15/16" Hex Lag
(5/16 Large Washer)
Step 5: Frame Assembly
Part 3 - Short Side
E: Make sure the assembly is still square then in the top hole of the Short Beam Assembly attach to Post
Assembly with one 5/16 x 4-3/4” Lag Screw (with 1/4-5/16” large washer) per end. (F5.6 and F5.7)
F: Repeat Steps C - E for second Short Side Assembly.
Hardware
4 x 5/16 x 4-3/4” Lag Screw (1/4-5/16” large washer)
4- 5/16 x 4-3/4" Lag Screw
(5/16" Flat Washer)
8- 1/4 x 1-15/16" Hex Lag
(5/16 Large Washer)

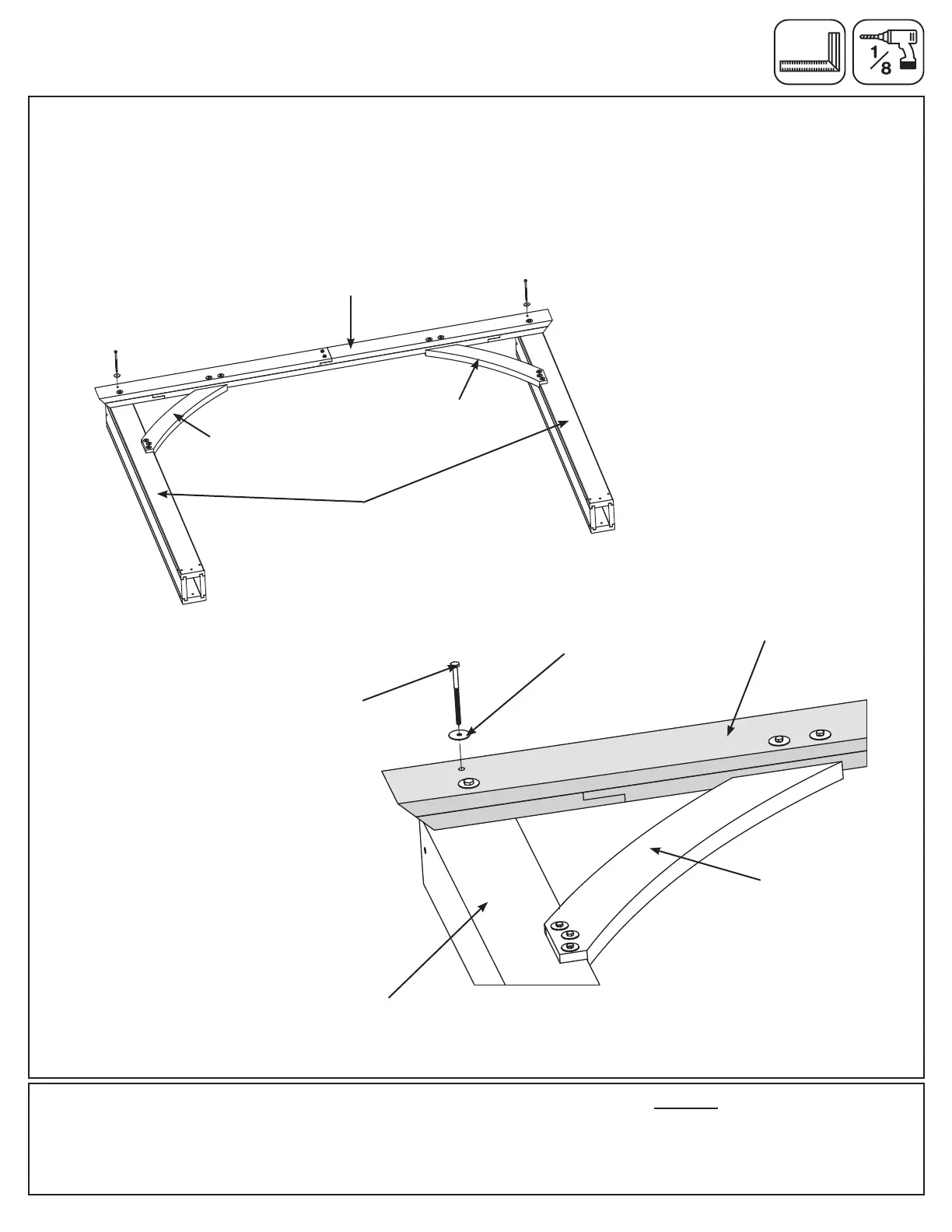

F5.6
F5.7
5/16 x 4-3/4”
Lag Screw
1/4-5/16”
Large Washer
(739) Short
Left Gusset
(740) Short
Right Gusset
Post Assembly
Gusset
Short Beam
Assembly
Post Assembly
Short Beam
Assembly
