Yardistry YM12935 - Step 6: Frame Assembly Part 1 - Long Side; Final Location Setup

22 support@yardistrystructures.com
2- Gusset Right
2- Long Beam Assemblies
2- Gusset Left
8- 5/16 x 3-1/4" Hex Bolts
(5/16 large washer, lock
washer, T nut)
4- 1/4 x 1-15/16" Hex Lag
(5/16 Large Washer)
2- Gusset Right
2- Long Beam Assemblies
2- Gusset Left
8- 5/16 x 3-1/4" Hex Bolts
(5/16 large washer, lock
washer, T nut)
4- 1/4 x 1-15/16" Hex Lag
(5/16 Large Washer)
F6.1
F6.2
3/8 x 9”
Hex Bolt
Long Beam
Assembly
Short Side
Assembly
Long Beam
Assembly
3/8” Large
Washer
3/8” Lock
Nut
Long Side
x 3

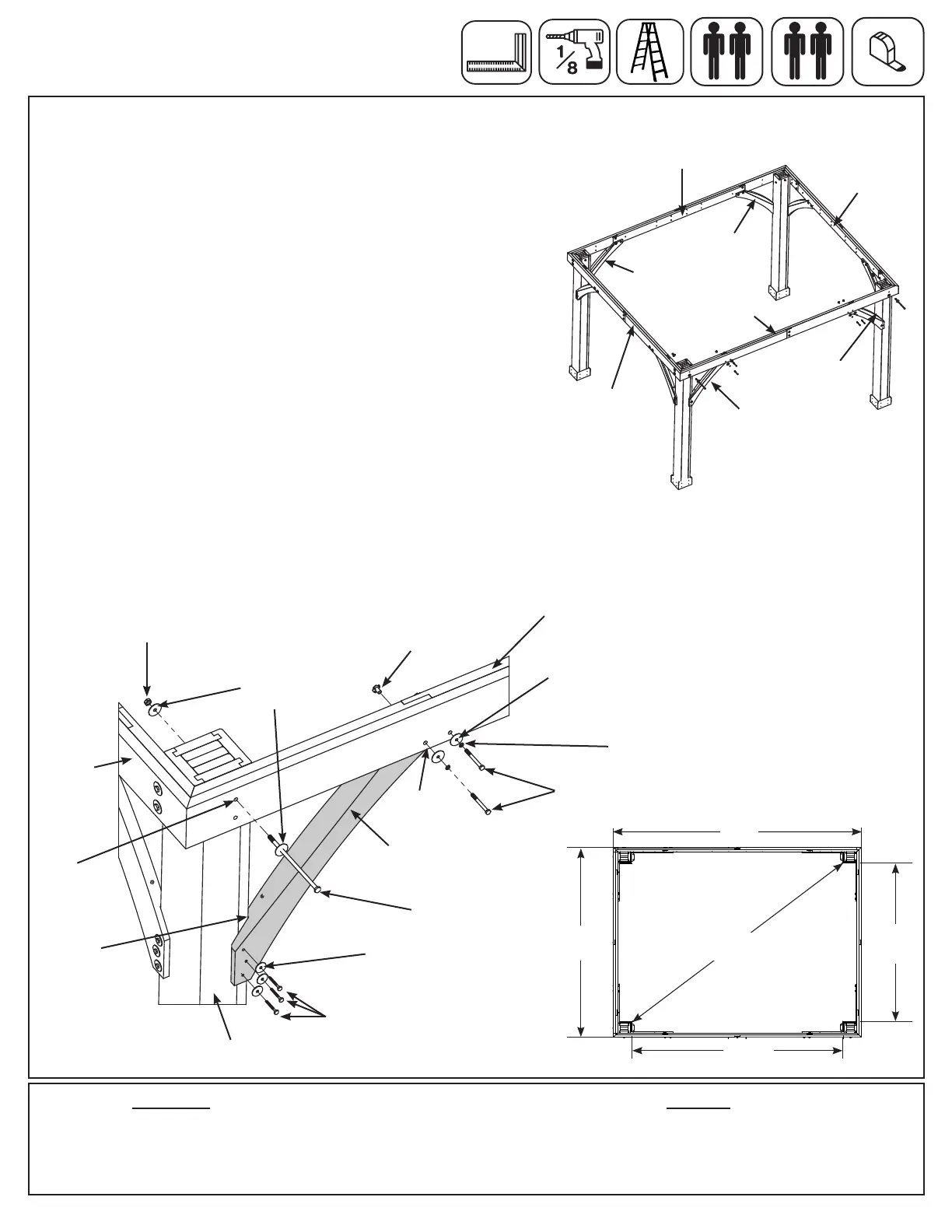

Step 6: Frame Assembly
Part 1 - Long Side
A: Move your Post Assemblies to the nal location. Make sure
the ground is at and level before continuing assembly.
B: Stand each Short Side Assembly then place one Long Beam
Assembly against the long sides of each post, ush to the tops
tight to the Short Side Assemblies. Notice bolt holes on the Long
Beam Assembly are towards the bottom. Attach Long Beam
Assemblies to each post with one 3/8 x 9” Hex Bolt (with two 3/8”
large washers and one 3/8” lock nut) per post in the top holes.
The distance from the outside of one Post to the outside of the
second Post should be 11’ 1-7/8” (3.400 m). (F6.1, F6.2 and
F6.3)
C: Make sure Assembly is square then facing each Long Beam
Assembly from the outside place one (740) Short Right Gusset
on the right hand side so the top ts tight to the Long Beam
Assembly and the bottom ts tight to the Post Assembly. Attach
gussets to Long Beam Assemblies with two 5/16 x 3-1/4” Hex
Bolts (with 5/16” lock washer, 1/4-5/16” large washer and 5/16”
t-nut) per gusset. Pre-drill with a 1/8” drill bit then attach gussets
to Post Assemblies with three 1/4 x 1-15/16” Lag Screws (with
1/4-5/16” large washer). (F6.1 and F6.2)
D: Repeat Step C on the left hand sides with one (739) Short
Left Gusset per Long Beam Assembly. (F6.1 and F6.2)
Short Side
Assembly
Use
top
hole
Long Beam
Assembly
Tight
Hardware
4 x 3/8 x 9” Hex Bolt (3/8” large washer x 2, 3/8” lock nut)
12 x 1/4 x 1-15/16” Lag Screw (1/4-5/16” large washer)
8 x 5/16 x 3-1/4” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
Wood Parts
2 x (740) Short Right Gusset
2 x (739) Short Left Gusset
(739) Short
Left Gusset
(740) Short
Right Gusset
(739) Short
Left Gusset
(740) Short
Right Gusset
F6.3
Short Side
Assembly
5/16” T-nut
5/16” Lock
Washer
5/16 x 3-1/4”
Hex Bolt
1/4-5/16”
Large Washer
Tight
Gusset
Post Assembly
1/4-5/16”
Large Washer
1/4 x 1-15/16”
Lag Screw
YM12935 - 12 x 10 Gazebo
2.791
9'2"
Outside
Posts
3.935
12'11"
Post to Post
2.441
8'0"
Plinth to
Plinth
3.007
9'10.4"
Plinth to
Plinth
3.401
11'2"
Outside Posts
Post to Post
9’ 1-7/8”
Post to Post
11’ 1-7/8”
8’ 1-7/8”
Inside Post to
Inside Post
12’ 10-3/4”
Post to Post
9’ 11-7/8”
3.931 m
3.400 m
3.045 m
2.486 m
2.791 m
Inside Post to
Inside Post
