Yardistry YM12935 - Step 6: Frame Assembly Part 2 - Long Side; Anchoring Guidance

23 support@yardistrystructures.com
(5/16 Large Washer)
4- 5/16 x 4-3/4" Lag Screw
8- 1/4 x 1-15/16" Hex Lag
(5/16 Large Washer)
(5/16 Large Washer)
4- 5/16 x 4-3/4" Lag Screw
8- 1/4 x 1-15/16" Hex Lag
(5/16 Large Washer)
x 3

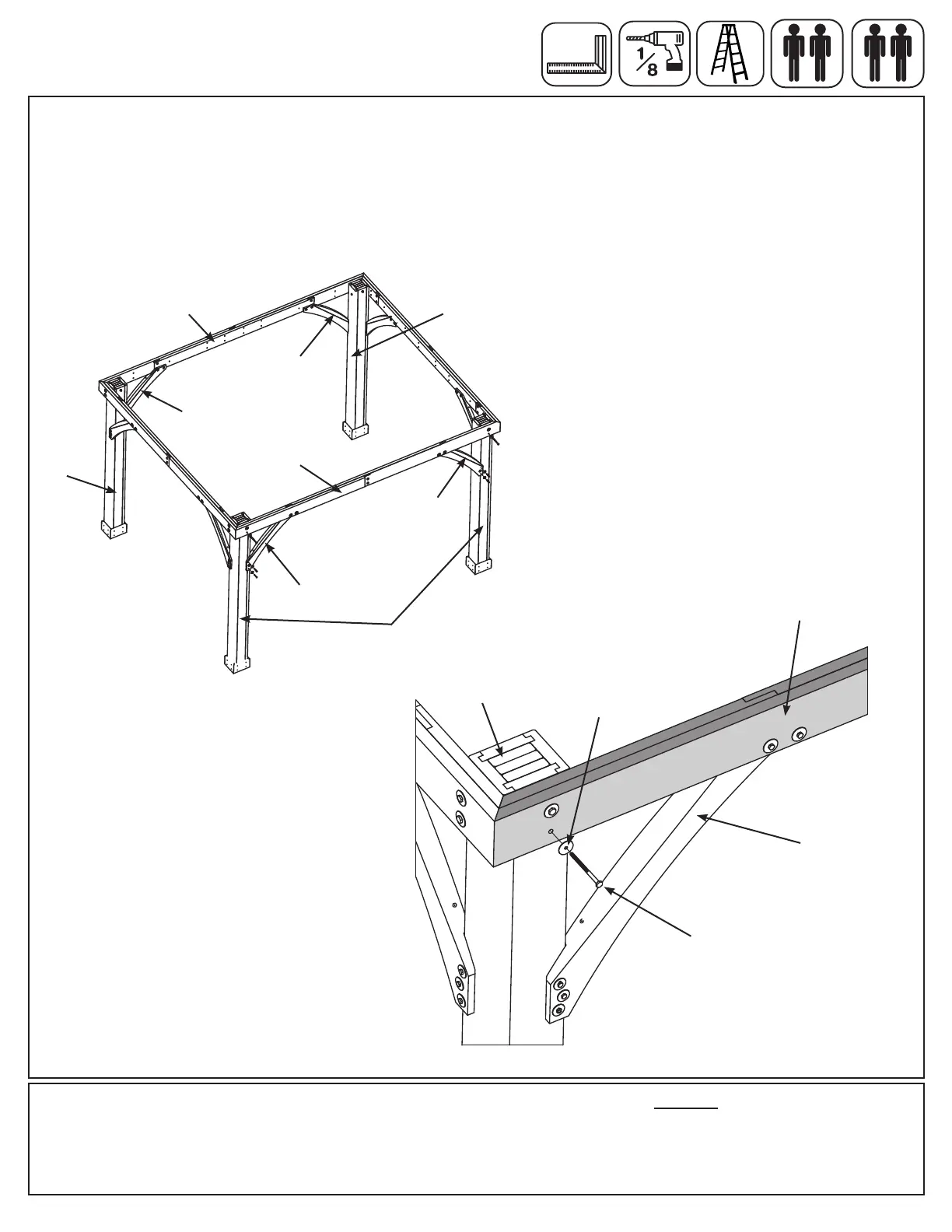

Step 6: Frame Assembly
Part 2 - Long Side
E: Make sure the assembly is still square then in the bottom holes of the Long Beam Assemblies attach to Post
Assemblies with one 5/16 x 4-3/4” Lag Screw (with 1/4-5/16” large washer) per end. (F6.4 and F6.5)
F: Depending on what you are placing the Gazebo on will determine how you anchor it to that surface. Please
refer to pages 6 and 7 for installation examples.
Hardware
4 x 5/16 x 4-3/4” Lag Screw (1/4-5/16” large washer)
F6.5
5/16 x 4-3/4”
Lag Screw
1/4-5/16”
Large Washer
Gusset
Post
Assembly
F6.4
(739) Short
Left Gusset
(740) Short
Right Gusset
Post Assembly
Long Beam
Assembly
Long Beam
Assembly
Post
Assembly
Post
Assembly
(739) Short
Left Gusset
(740) Short
Right Gusset
Long Beam
Assembly
Any hardware or extra materials for
mounting will have to be purchased in advance.
