Yardistry YM12935 - Step 7: Fascia Beam Assemblies

24 support@yardistrystructures.com
4- 5/16 x 1-1/4" Hex Bolts
4-(5/16 T-nut, Lock Washer)
4- 5/16 Large Flat Washer
2- Fascia Right Short
2- Fascia Leftt Short
2- Fascia Right Long
2- Fascia Left Long
4- 5/16 x 1-1/4" Hex Bolts
4-(5/16 T-nut, Lock Washer)
4- 5/16 Large Flat Washer
2- Fascia Right Short
2- Fascia Leftt Short
2- Fascia Right Long
2- Fascia Left Long
4- 5/16 x 1-1/4" Hex Bolts
4-(5/16 T-nut, Lock Washer)
4- 5/16 Large Flat Washer
2- Fascia Right Short
2- Fascia Leftt Short
2- Fascia Right Long
2- Fascia Left Long
4- 5/16 x 1-1/4" Hex Bolts
4-(5/16 T-nut, Lock Washer)
4- 5/16 Large Flat Washer
2- Fascia Right Short
2- Fascia Leftt Short
2- Fascia Right Long
2- Fascia Left Long
A: Tightly connect one (1083) Fascia Left Short and one (1082) Fascia Right Short using one 5/16 x 1-1/4” Hex
Bolt (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) as shown in F7.1 and F7.2. Repeat to make
a second Fascia Beam Assembly.
B: Tightly connect one (1092) Fascia Left Long and one (1091) Fascia Right Long using one 5/16 x 1-1/4” Hex
Bolt (with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) as shown in F7.3 and F7.4. Repeat to make
a second Large Fascia Beam Assembly.

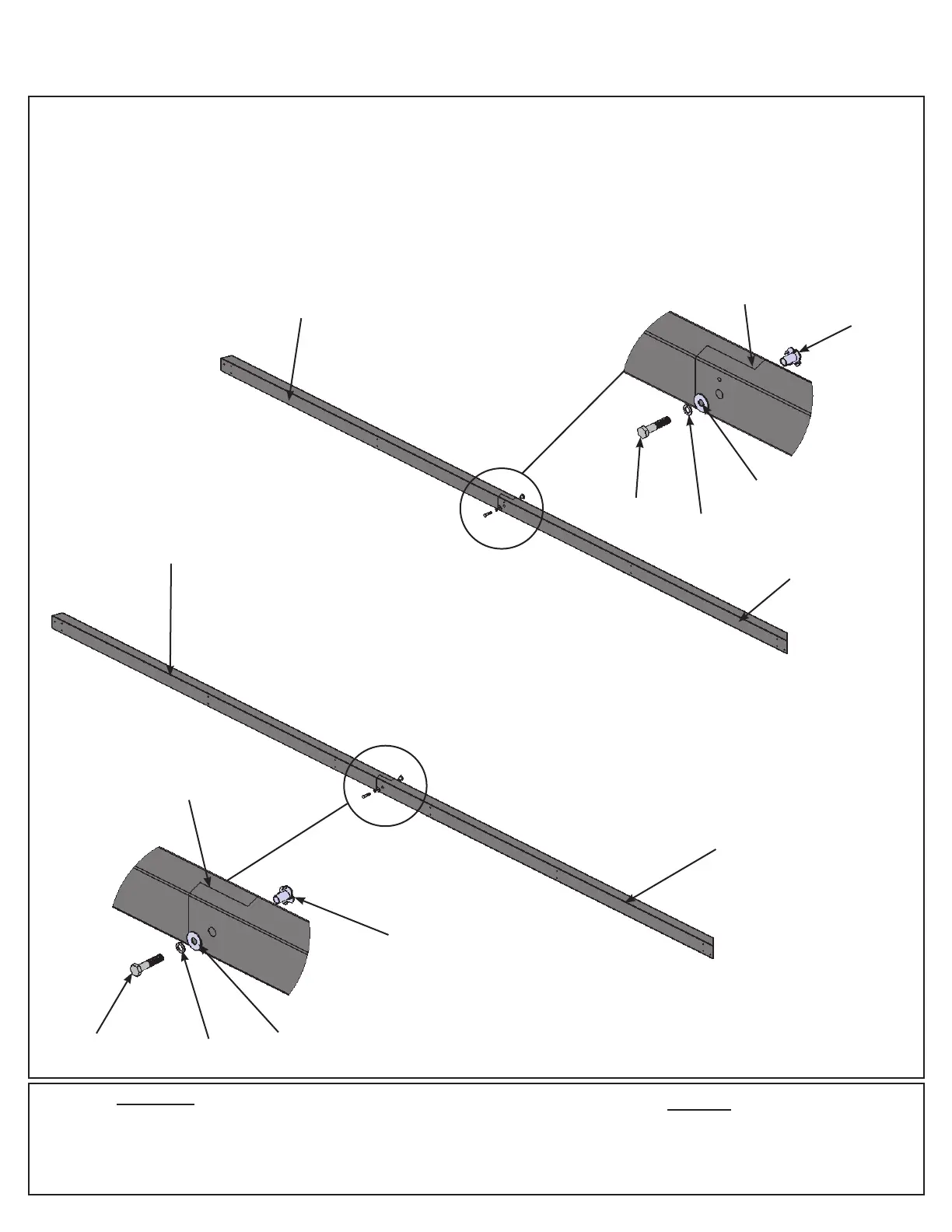

Step 7: Fascia Beam Assemblies
F7.1
F7.2
Hardware
Wood Parts
2 x (1082) Fascia Right Short
2 x (1083) Fascia Left Short
2 x (1091) Fascia Right Long
2 x (1092) Fascia Left Long
4 x 5/16 x 1-1/4” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
(1083) Fascia
Left Short
5/16”
T-nut
5/16 x 1-1/4”
Hex Bolt
Tight
F7.3
F7.4
5/16” Lock
Washer
(1092) Fascia
Left Long
5/16”
T-nut
5/16 x 1-1/4”
Hex Bolt
Tight
5/16” Lock
Washer
1/4-5/16”
Large Washer
1/4-5/16”
Large Washer
(1082) Fascia
Right Short
(1091) Fascia
Right Long
