Yardistry YM12935 - Step 8: Small Roof Rafter Assembly Part 1

25 support@yardistrystructures.com
2- #8 x 2-1/4” Screws
12- #8 x 2” Screws
2- Corner LT
2- Corner RT
2- Rafter
2- Small Fascia Assemblies
2- #8 x 2-1/4” Screws
12- #8 x 2” Screws
2- Corner LT
2- Corner RT
2- Rafter
2- Small Fascia Assemblies
2- #8 x 2-1/4” Screws
12- #8 x 2” Screws
2- Corner LT
2- Corner RT
2- Rafter
2- Small Fascia Assemblies

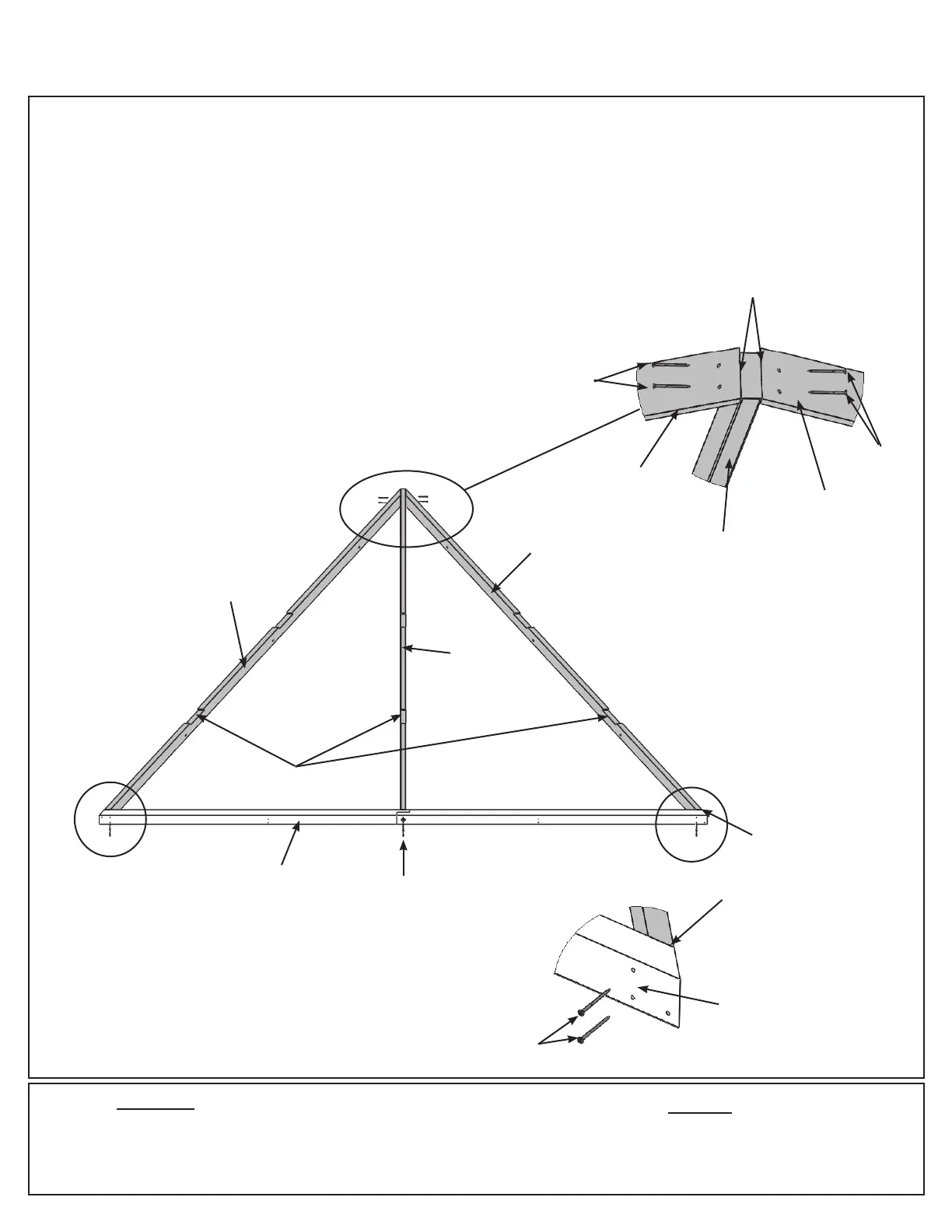

A: On each side of one (1088) Rafter place one (1080) LT Corner Rafter and one (1081) RT Corner Rafter so
the tops and edges are ush then attach with two #8 x 2” Wood Screws per side. (F8.1 and F8.2)
B: Place Fascia Beam Assembly from Step 7A on the bottom of (1080) LT Corner Rafter, (1081) RT Corner
Rafter and (1088) Rafter so the sides are ush then attach with two #8 x 2” Wood Screws at each end and one
#8 x 2-1/4” Wood Screw in the middle. (F8.1 and F8.3)
C: Repeat Steps A and B to make a second Small Roof Rafter Assembly.
Wood Parts
Step 8: Small Roof Rafter Assembly
Part 1
2 x (1088) Rafter
2 x (1080) LT Corner Rafter
2 x (1081) RT Corner Rafter
Hardware
16 x #8 x 2” Wood Screw
2 x #8 x 2-1/4” Wood Screw
#8 x 2”
Wood
Screw
Top View
Fascia Beam
Assembly
F8.1
F8.3
Note notches
facing up
Flush
Fascia Beam
Assembly
(1088) Rafter
#8 x 2“
Wood
Screws
#8 x 2”
Wood
Screws
Flush
F8.2
(1080) LT
Corner Rafter
Front View
Note angle
side up
#8 x 2-1/4”
Wood Screws
(1081) RT
Corner Rafter
(1080) LT
Corner Rafter
(1081) RT
Corner Rafter
(1088)
Rafter
