Yardistry YM12935 - Step 8: Small Roof Rafter Assembly Part 2

26 support@yardistrystructures.com
4- #8 x 2-1/4” Wood Screw
40- #8 x 1-1/2” Wood Screw
2- Short Strap
2- Long Strap
2- Rafter Short Right
2- Rafter Short Left
Hardware
F8.4
Step 8: Small Roof Rafter Assembly
Part 2
40 x #8 x 1-1/2” Wood Screw
8 x #8 x 2-1/4” Wood Screw

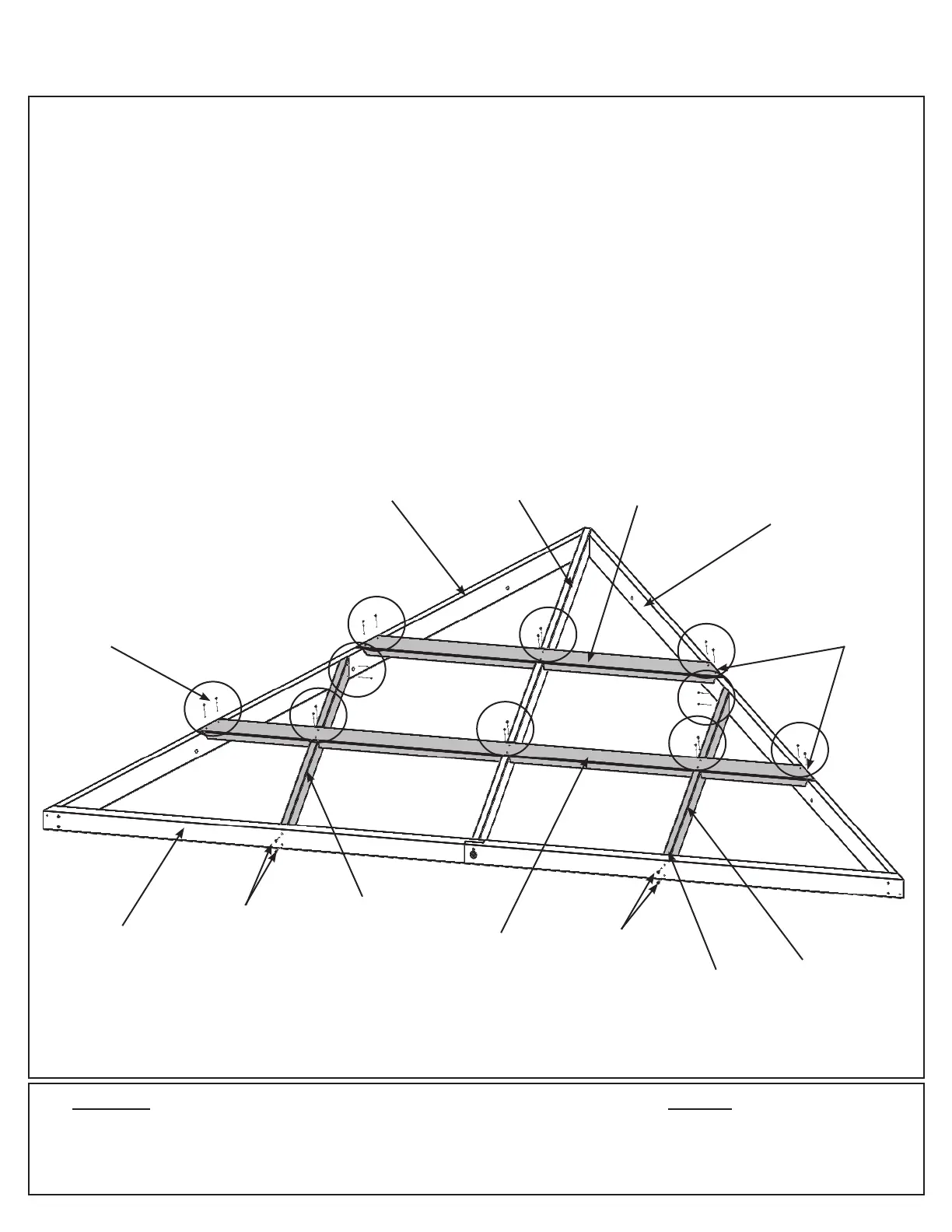

D: Place one (1084) Short Strap in the notches of (1080) LT Corner Rafter, (1081) RT Corner Rafter and (1088)
Rafter so the ends do not overhang the outside edges of the outside boards then attach with six #8 x 1-1/2”
Wood Screws. (F8.4)
E: Place one (1085) Long Strap in the notches of (1080) LT Corner Rafter, (1081) RT Corner Rafter and (1088)
Rafter so the ends do not overhang the outside edges of the outside boards. Do not attach yet. (F8.4)
F: Place one (1086) Rafter Short Right and one (1087) Rafter Short Left in the notches of (1085) Long Strap
and attach as shown in F8.4 with four #8 x 1-1/2” Wood Screws and two #8 x 2-1/4” Wood Screws per board.
G: Attach (1085) Long Strap to (1080) LT Corner Rafter, (1081) RT Corner Rafter and (1088) Rafter with six #8
x 1-1/2” Wood Screws. (F8.4)
H: Complete Steps D, E, F and G for both Small Roof Rafter Assemblies.
#8 x 1-1/2” Wood Screws
x 20 per assembly
No
Overhang
Fascia Beam
Assembly
Flush
(1084) Short
Strap
(1087) Rafter
Short Left
(1085) Long
Strap
(1086) Rafter
Short Right
#8 x 2-1/4”
Wood Screws
#8 x 2-1/4”
Wood Screws
Wood Parts
2 x (1084) Short Strap
2 x (1085) Long Strap
2 x (1086) Rafter Short Right
2 x (1087) Rafter Short Left
Front View
(1080) LT
Corner Rafter
(1081) RT
Corner Rafter
(1088)
Rafter
