Yardistry YM12935 - Step 9: Attach Rafter Beam Brackets - Small Roof Rafter Assembly

27 support@yardistrystructures.com
6
0
0 0
---
3- Rafter to Beam Brackets
3- 1/4
x 2" Hex Bolts
3- 1/4
Lock Nut
6 - 5/1 6 Large Flat Washer
6
0
0 0
---
3- Rafter to Beam Brackets
3- 1/4
x 2" Hex Bolts
3- 1/4
Lock Nut
6 - 5/1 6 Large Flat Washer
F9.1
F9.2

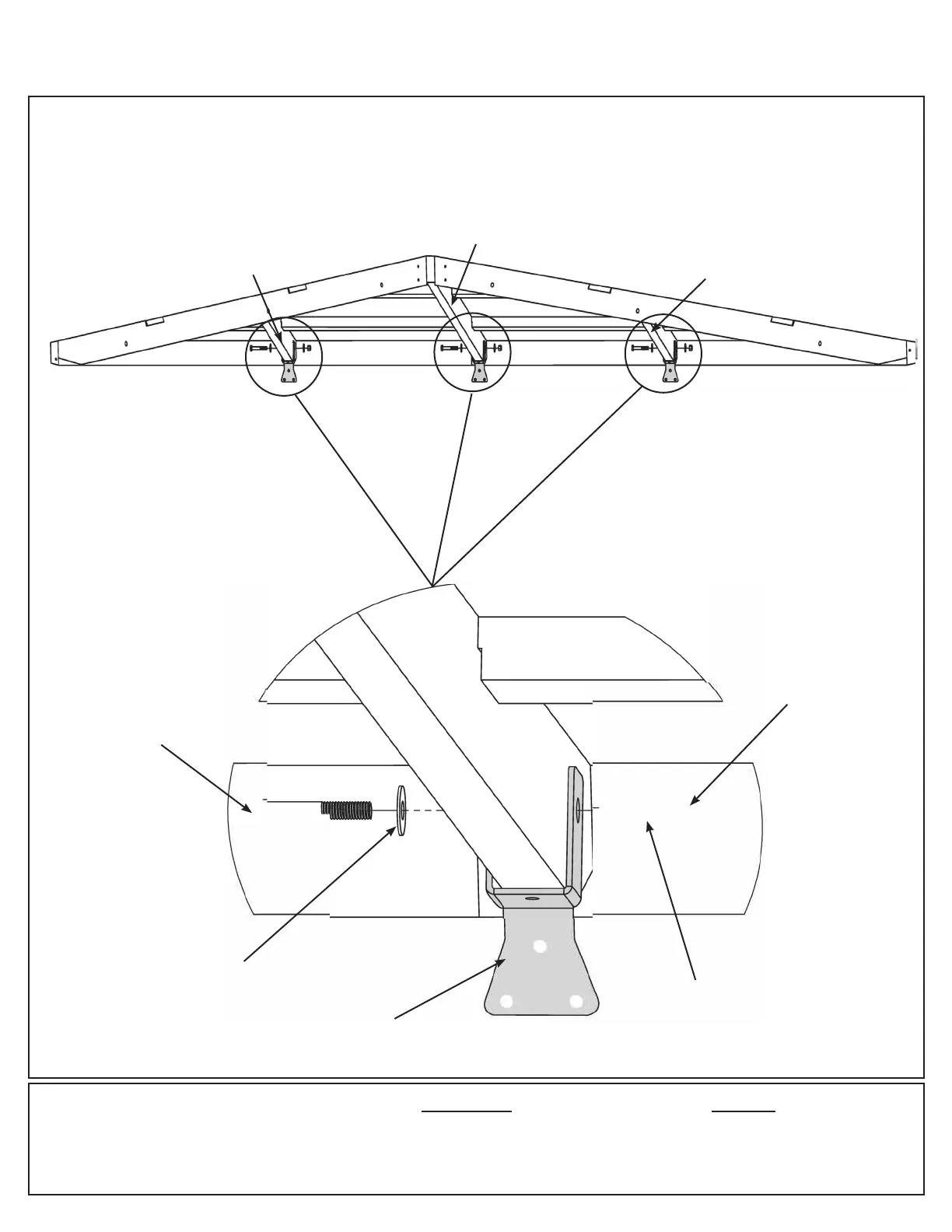

A: On the Back of one Small Roof Rafter Assembly place one Rafter Beam Bracket on (1086) Rafter Short Right,
(1087) Rafter Short Left and (1088) Rafter. Loosely attach each bracket to rafters with one 1/4 x 2” Hex Bolt (with
two 1/4-5/16” large washers and one 1/4” lock nut). Make sure to only install on one Small Roof Rafter Assembly,
the second will not have brackets. (F9.1 and F9.2)
Step 9: Attach Rafter Beam Brackets -
Small Roof Rafter Assembly
Back View
Hardware
Rafter Beam
Bracket
3 x 1/4 x 2” Hex Bolt
(1/4-5/16” large washer x 2, 1/4” lock nut)
(1088)
(1087)
(1086)
Components:
3 x Rafter Beam Bracket
1/4”
Lock
Nut
1/4 x 2”
Hex Bolt
1/4-5/16”
Large
Washer
1/4-5/16”
Large
Washer
