Yardistry YM12935 - Step 10: Large Roof Rafter Assembly Part 1

28 support@yardistrystructures.com
4- Rafter
2-Long Fascia Assemblies
2- Top
16-#8 x 2-1/4” Screws
4- Rafter
2-Long Fascia Assemblies
2- Top
16-#8 x 2-1/4” Screws
4- Rafter
2-Long Fascia Assemblies
2- Top
16-#8 x 2-1/4” Screws

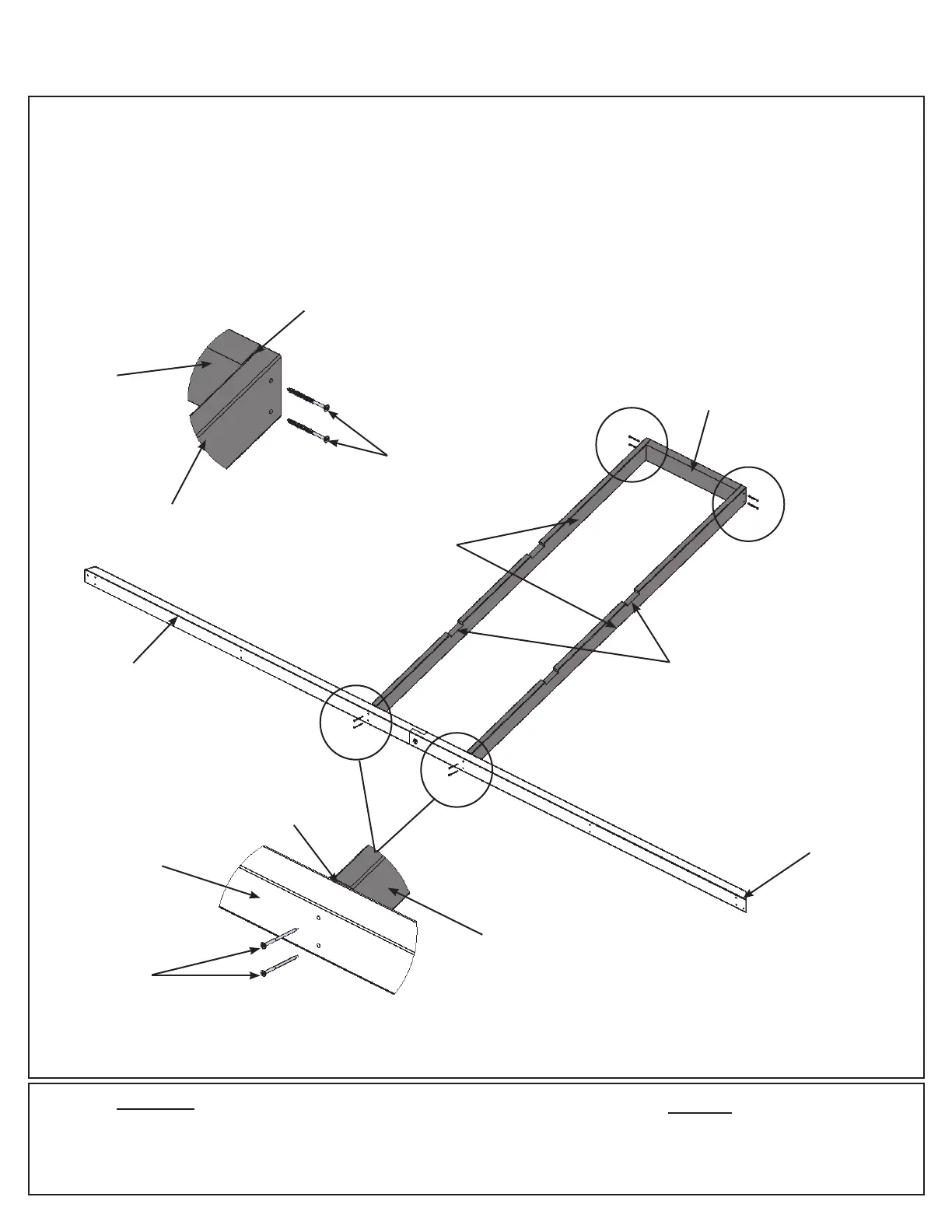

A: On each side of one (1097) Top place one (1088) Rafter so the tops and edges are ush then attach with
two #8 x 2-1/4” Wood Screws per side. (F10.1 and F10.2)
B: Place Large Fascia Beam Assembly from Step 7B on the bottom of (1088) Rafters so the sides are ush
and holes are centred on the (1088) Rafters then attach with two #8 x 2-1/4” Wood Screws per (1088) Rafter.
(F10.1 and F10.3)
C: Repeat Steps A and B to make a second Large Roof Rafter Assembly.
Hardware
Wood Parts
(1088)
Rafter
Step 10: Large Roof Rafter Assembly
Part 1
F10.1
16 x #8 x 2-1/4” Wood Screw4 x (1088) Rafter
2 x (1097) Top
F10.3
Note notches
facing up
Large Fascia
Beam Assembly
Large Fascia
Beam Assembly
Flush
#8 x 2-1/4”
Wood Screws
Flush
F10.2
Note angle
side up
(1097) Top
#8 x 2-1/4”
Wood Screws
(1088)
Rafter
(1097)
Top
(1088)
Rafter
