Yardistry YM12935 - Step 10: Large Roof Rafter Assembly Part 2

29 support@yardistrystructures.com
2- Corner LT
2- Corner RT
16-#8 x 2” Screws
8-#8 x 2-1/4” Screws
2- Corner LT
2- Corner RT
16-#8 x 2” Screws
8-#8 x 2-1/4” Screws
2- Corner LT
2- Corner RT
16-#8 x 2” Screws
8-#8 x 2-1/4” Screws
HardwareWood Parts
F10.5
8 x #8 x 2-1/4” Wood Screw
8 x #8 x 2” Wood Screw

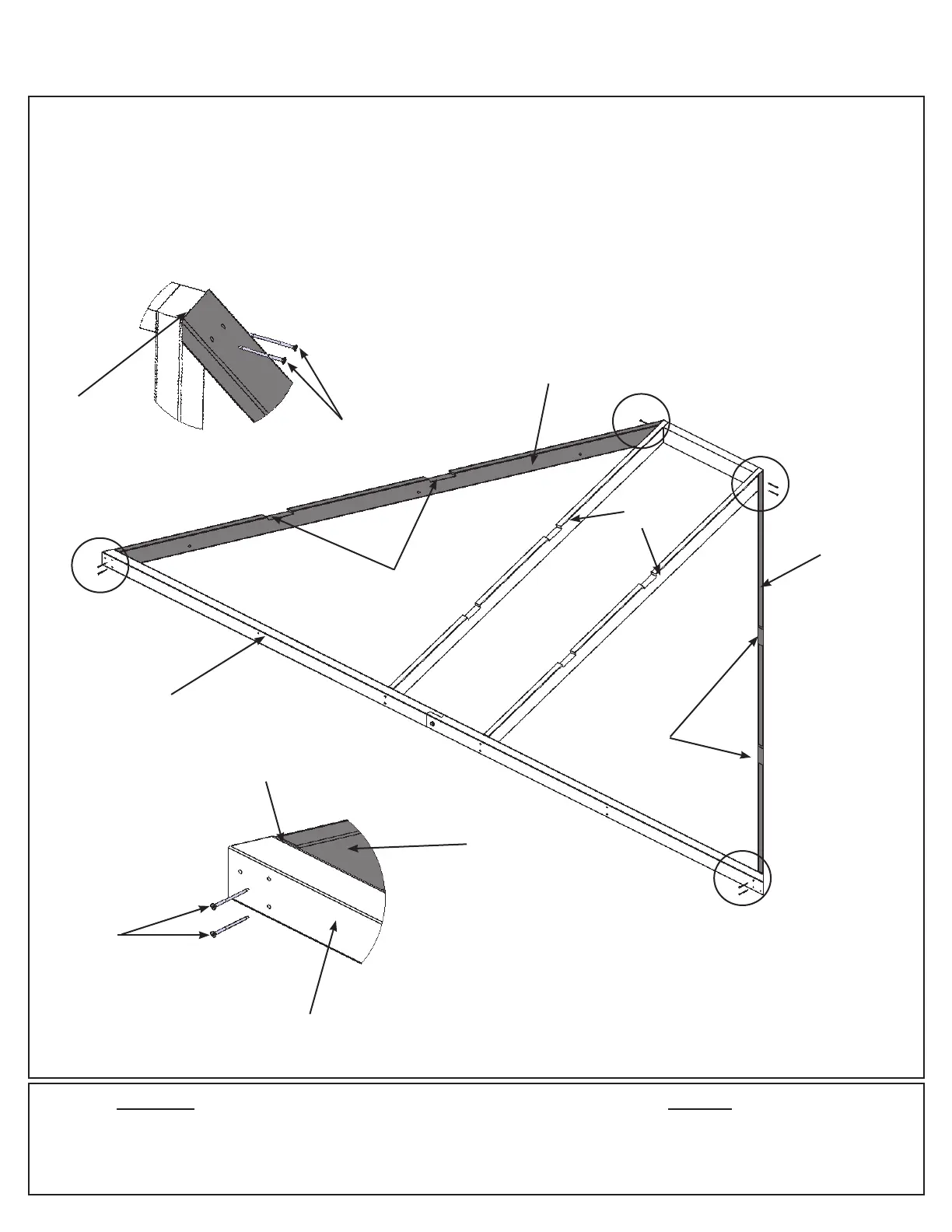

D: Beside each (1088) Rafter place one (1080) LT Corner Rafter and one (1081) RT Corner Rafter so the tops
and edges are ush and the bottom edges are ush to Large Fascia Beam Assembly then attach with two #8 x
2-1/4” Wood Screws to the top and and two #8 x 2” Wood Screws in the bottom of the rafters per side. (F10.4,
F10.5 and F10.6)
E: Repeat Step D for the second Large Roof Rafter Assembly.
(1088)
Rafter
Large Fascia
Beam Assembly
Flush
#8 x 2”
Wood
Screws
#8 x 2-1/4”
Wood Screws
Step 10: Large Roof Rafter Assembly
Part 2
F10.4
Rafter
Corner
Left and
Right
Large Fascia
Beam Assembly
Note notches
facing up
Note notches
facing up
Flush
F10.6
(1080) LT
Corner Rafter
(1081) RT
Corner Rafter
2 x (1080) LT Corner Rafter
2 x (1081) RT Corner Rafter
