Step 10: Large Roof Rafter Assembly

Part 3

2 x (939) Strap Long

2 x (1086) Rafter Short Right

2 x (1087) Rafter Short Left

2 x (1098) Strap Long LT

2 x (1099) Strap Long RT

F: Place one (939) Strap Long in the notches of (1080) LT Corner Rafter, (1081) RT Corner Rafter and both (1088)

Rafters so the ends do not overhang the outside edges of the outside boards then attach with eight #8 x 1-1/2”

Wood Screws. (F10.7)

G: Place one (1098) Strap Long LT in the notches of (1080) LT Corner Rafter and both (1088) Rafters and one

(1099) Strap Long RT in the notches of (1081) RT Corner Rafter and one (1088) Rafter, tight to (1098) Strap Long

LT. Make sure the ends do not overhang the outside edges of the outside boards. Boards are tight in the centre.

Attach both boards with ten #8 x 1-1/2” Wood Screws. Notice screws are installed at an angle where

(1098) Strap Long LT and (1099) Strap Long RT meet. (F10.7 and F10.8)

H: Place one (1086) Rafter Short Right in the notches of (1099) Strap Long RT and one (1087) Rafter Short Left in

the notches of (1098) Strap Long LT and attach to (1080) LT Corner Rafter and (1081) RT Corner Rafter with two #8

x 1-1/2” Wood Screws per board and to Large Fascia Beam Assembly with two #8 x 2-1/4” Wood Screws per board.

(F10.7)

I: Attach (1098) Strap Long LT to (1087) Rafter Short Left and (1099) Strap Long RT to (1086) Rafter Short Right

with two #8 x 1-1/2” Wood Screws per board. (F10.7)

J: Repeat Steps F - I for the second Large Roof Rafter Assembly.

Hardware

Wood Parts

52 x #8 x 1-1/2” Wood Screw

8 x #8 x 2-1/4” Wood Screw

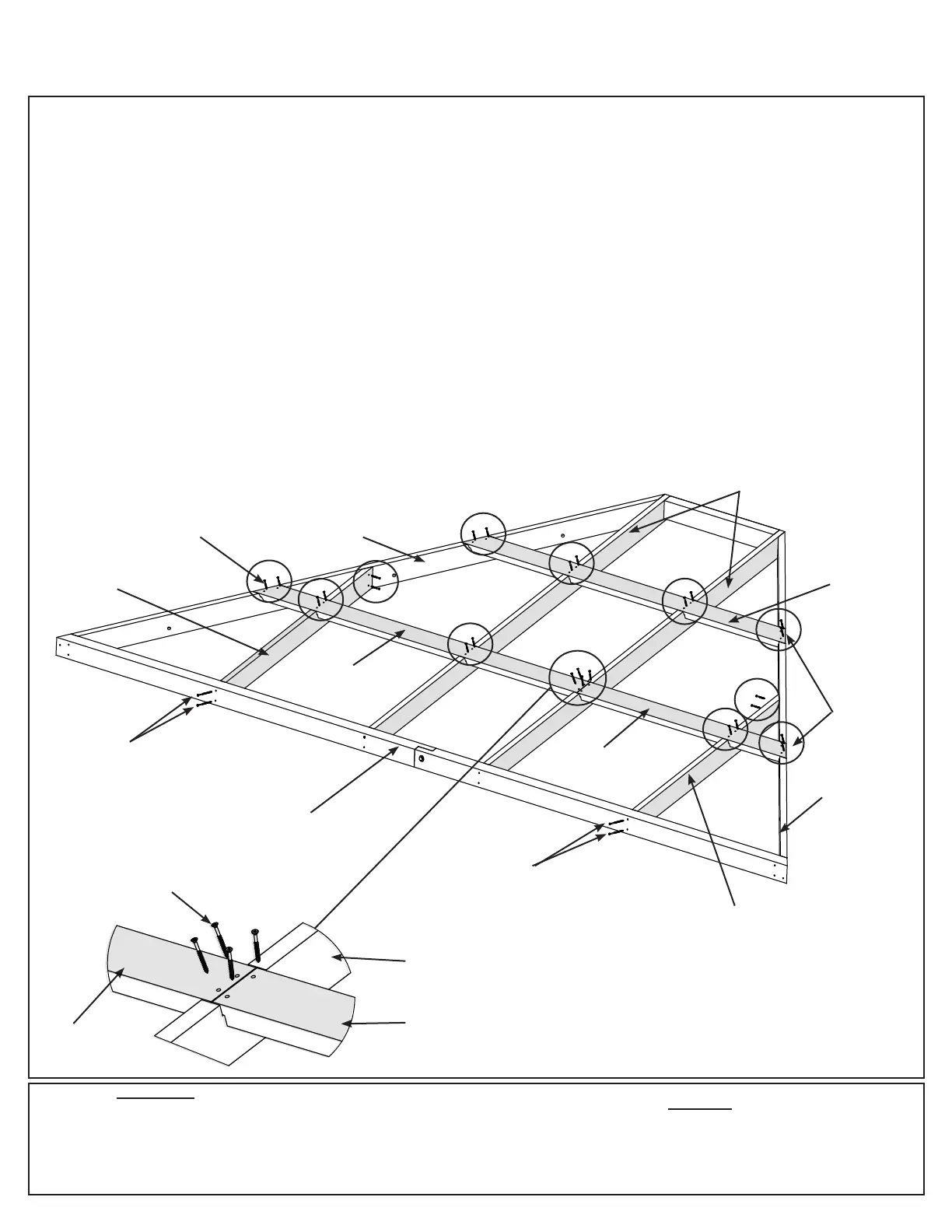

F10.7

Overhang

#8 x 1-1/2” Wood

Screws (x 26)

(939) Strap

Long

(1087) Rafter

Short Left

(1098) Strap

Long LT

(1086) Rafter

Short Right

Large Fascia

Beam Assembly

#8 x 2-1/4”

Wood Screws

#8 x 2-1/4”

Wood Screws

(1099) Strap

Long RT

F10.8

Notice screws

installed at an

angle
