Yardistry YM12935 - Step 12: Attach Roof Panels - Small Roof Part 2; Panel Fit and Screw Placement

35 support@yardistrystructures.com
Hardware
50 x #8 x 1” Roong Screw
Roof Parts
2 x Short Panel Left
2 x Short Panel Right
E: Place one Short Panel Left on Small Roof Rafter Assembly so it overlaps the Long Panel Left and it is ush
to the sides of (1080) LT Corner Rafter and a slight overhang at the bottom of the Fascia Beam Assembly.
There should be no overhanging at the corners. (F12.3 and F12.4)
F: Place one Short Panel Right on Small Roof Rafter Assembly so it overlaps the Long Panel Right and it is
ush to the side of (1081) RT Corner Rafter and a slight overhang at the bottom of the Fascia Beam Assembly.
There should be no overhanging at the corners. (F12.3 and F12.4)
G: Attach all panels to Small Roof Rafter Assembly with 25 #8 x 1” Roong Screws in locations shown in F12.3.
Do not place any screws along the bottom row. Be sure not to overtighten screws.
H: Repeat Steps E - G for both Small Roof Rafter Assemblies.
(1088)
Rafter
(hidden)

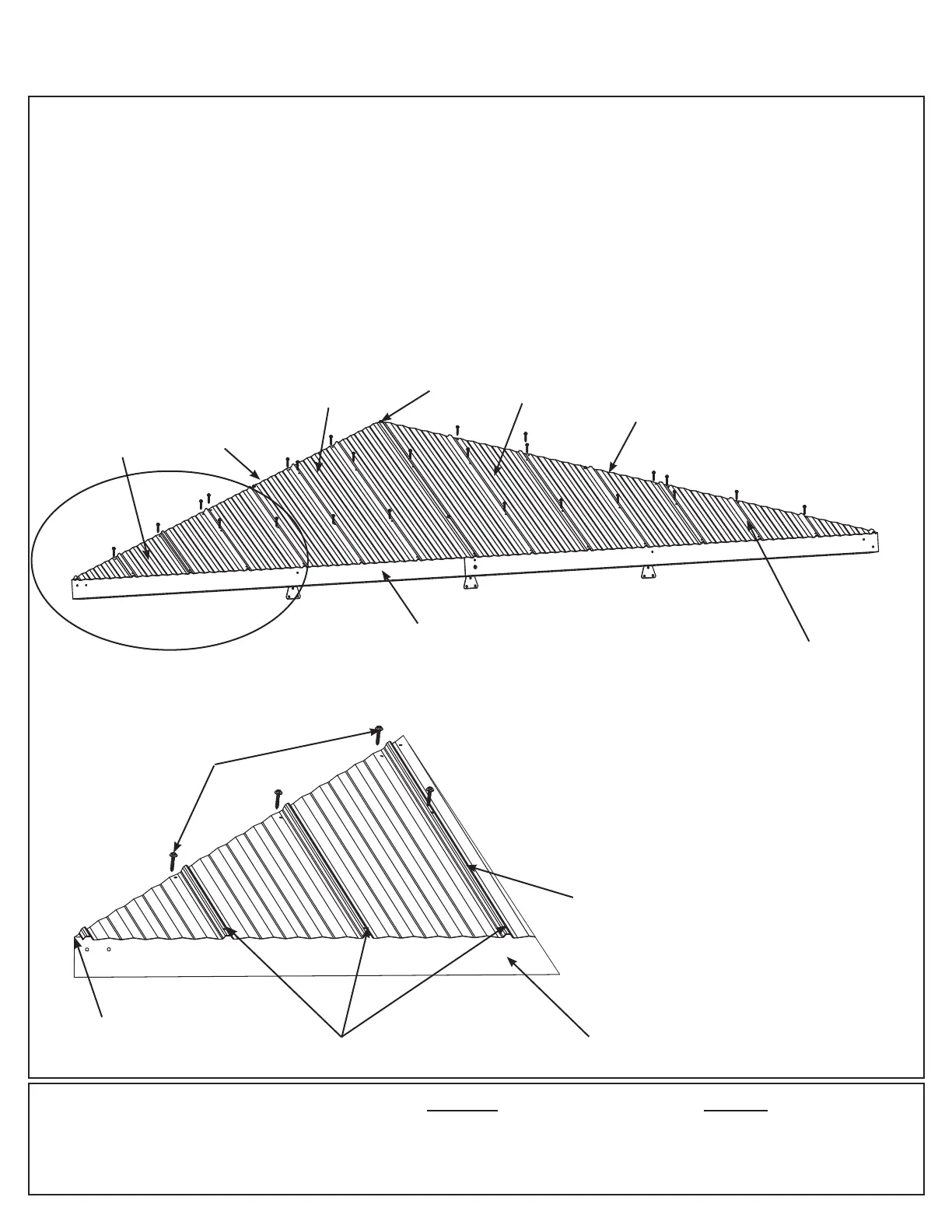

Step 12: Attach Roof Panels - Small Roof
Part 2
F12.4
F12.3
#8 x 1” Roong
Screws (x 25)
Long Panel
Left
Long Panel
Right
Short Panel
Left
Short Panel Right
Panels ush
to corners, no
overhang
Panels overlap
at the seams
Fascia Beam
Assembly
Fascia Beam
Assembly
No screws along bottom row
DO NOT overtighten
screws, could cause
damage to roong
material
(1080) LT
Corner Rafter
(hidden)
(1081) RT
Corner Rafter
(hidden)
