Step 13: Attach Ridge Clips and Roof Edges - Small Roof
Hardware
26 x #8 x 1” Roong Screw
16 x #7 x 3/4” Wood Screw

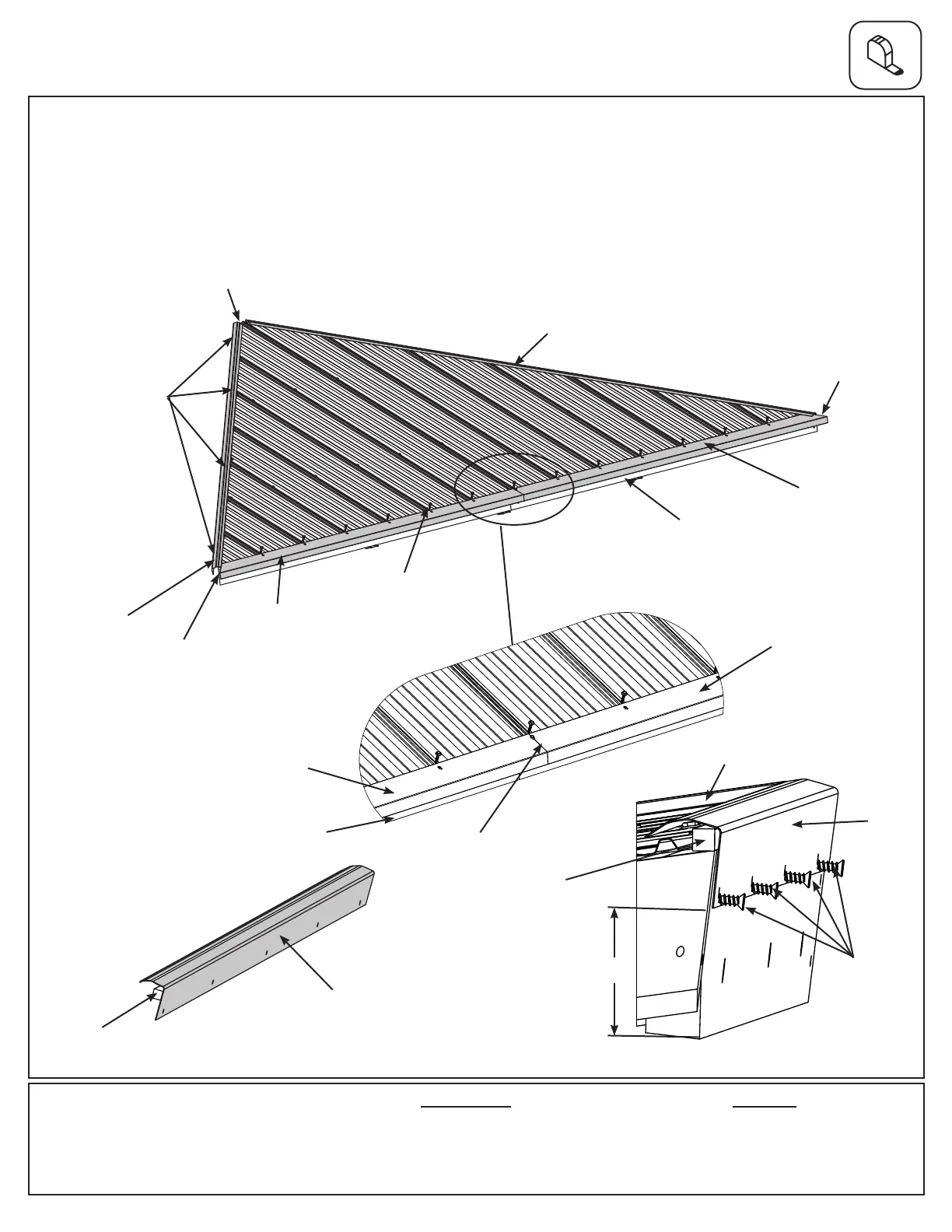

A: Place one Roof Edge Left 59-3/4 and one Roof Edge Right 59-3/4 on the bottom of each Small Roof Rafter
Assembly so the ends are ush with the outside ends of the Fascia Beam Assembly and meet tight in the centre.
Attach both Roof Edges with 13 #8 x 1” Roong Screws per Small Roof Rafter assembly. (F13.1 and F13.2)
B: Place one Weather Seal on the inside of each Ridge Clip 85.25 then place one Ridge Clip 85.25 on each side
of each Small Roof Rafter Assembly so they cover the panels and attach with four #7 x 3/4” Wood Screws per
Ridge Clip 85.25. (F13.1, F13.3 and F13.4)
Components:
2 x Roof Edge Left 59-3/4
2 x Roof Edge Right 59-3/4
4 x Ridge Clip 85.25
4 x Weather Seal
Tight at centre
F13.1
Weather
Seal
F13.2
Panels
Fascia Beam
Assembly
Flush
Flush
#8 x 1” Roong
Screws (x 13)
Fascia Beam
Assembly
F13.3
Weather
Seal
F13.4
Side View
Flush
Roof Edge
Left 59-3/4
Roof Edge
Right 59-3/4
Roof Edge
Left 59-3/4
Roof Edge
Right 59-3/4
Ridge
Clip
85.25
Ridge Clip
85.25
Ridge Clip
85.25
Ridge
Clip
85.25
#7 x 3/4”
Wood Screws
(x 4 per side)
#7 x 3/4”
Wood Screws
(x 4 per side)
2-1/2”
6.35 cm
