Hardware
Step 14: Attach Roof Panels - Large Roof
Part 1

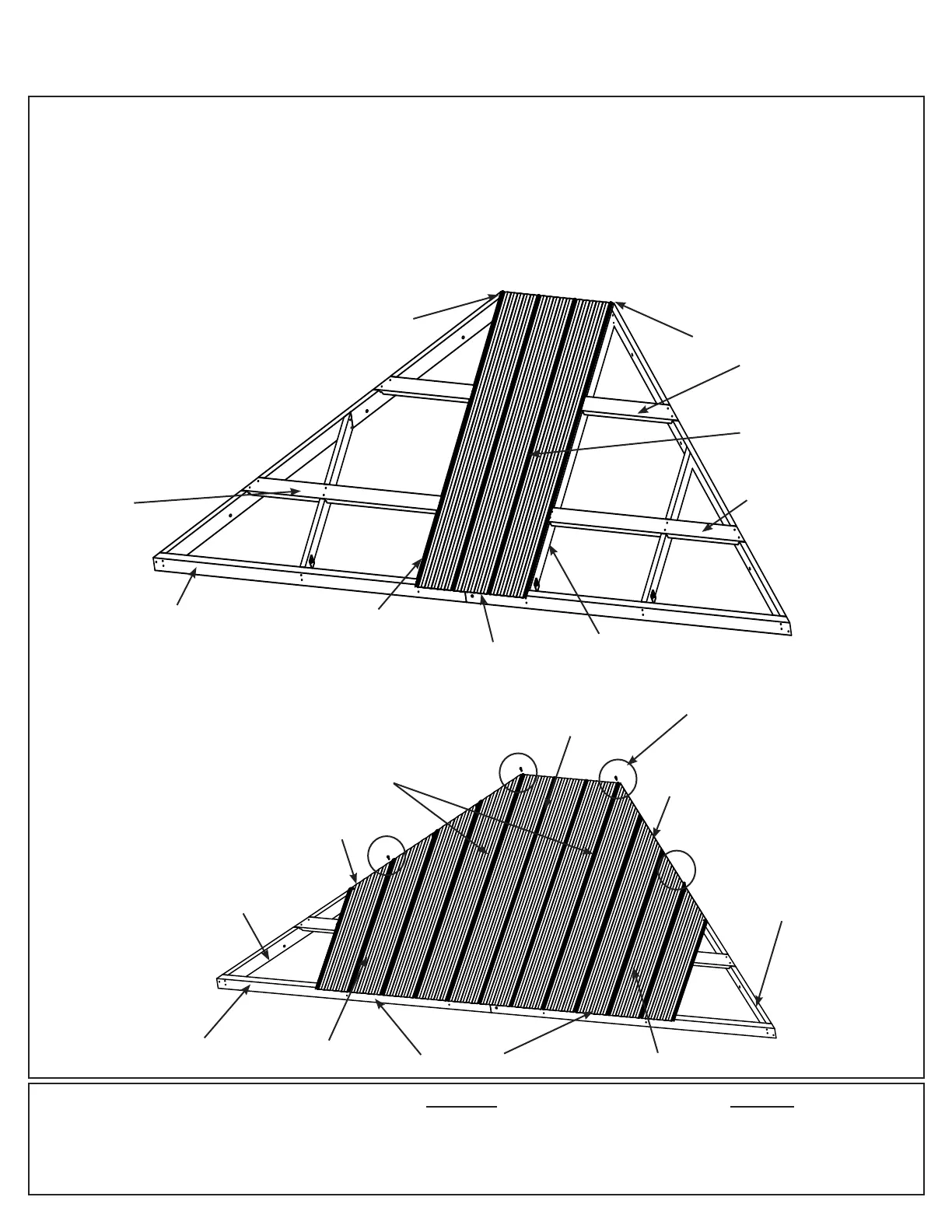

A: Place one Middle Panel on the front of one Large Roof Rafter Assembly so it slightly overhangs the top
of (1097) Top and an overhang at the bottom of the Large Fascia Beam Assembly. Holes should line up with
(1088) Rafter and (939), (1098) and (1099) Straps (F14.1)
B: Place one Long Panel Left and one Long Panel Right on each side of Middle Panel so they overlap the
Middle Panel and are ush to the sides of (1080) LT Corner Rafter and (1081) RT Corner Rafter and an
overhang at the bottom of the Large Fascia Beam Assembly. Attach with four #8 x 1” Roong Screws per panel
in the places shown below. Be sure not to overtighten screws. (F14.2)
F14.2
F14.1
8 x #8 x 1” Roong Screw
Roof Parts
2 x Middle Panel
2 x Long Panel Left
2 x Long Panel Right
Large Fascia
Beam Assembly
Panels overlap
at the seams
Long Panel
Left
Long Panel Right
DO NOT overtighten
screws, could cause
damage to roong
material
Flush
Flush
Large Fascia
Beam Assembly
(1097) Top
(hidden)
Slight
overhang
Middle
Panel
Middle Panel
Will overhang
Will overhang
(1088)
Rafter
(hidden)
(939) Strap
Long
(1088)
Rafter
(1098) Strap
Long LT
(1099) Strap
Long RT
(1080) LT
Corner Rafter
(1081) RT
Corner Rafter
#8 x 1”
Roong
Screw (x 4)
