Step 14: Attach Roof Panels - Large Roof
Part 2
F14.4
Hardware
68 x #8 x 1” Roong Screw
Roof Parts
2 x Short Panel Left
2 x Short Panel Right
C: Place one Short Panel Left so it overlaps the Long Panel Left and it is ush to the sides of (1080) LT Corner
Rafter and one Short Panel Right so it overlaps the Long Panel Right and it is ush to the side of (1081) RT
Corner Rafter. There will be a slight overhang at the bottom of the Large Fascia Beam Assembly. There should
be no overhang at the corners. (F14.3 and F14.4)
D: Make sure all panels t properly then attach with 34 #8 x 1” Roong Screws. Be sure not to overtighten
screws (F14.3 and F14.4)
Notice there are no screws along the bottom row.
E: Repeat Steps A - D for both Large Roof Rafter Assemblies.
Long Panel Left
Long Panel Right
Short Panel
Right
Large Fascia
Beam Assembly
DO NOT overtighten
screws, could cause
damage to roong
material
Short Panel
Left
#8 x 1”
Roong
Screws
Panels ush
to corners, no
overhang
Panels overlap
at the seams
No screws along
bottom row
#8 x 1” Roong Screws
(x 34 per assembly)

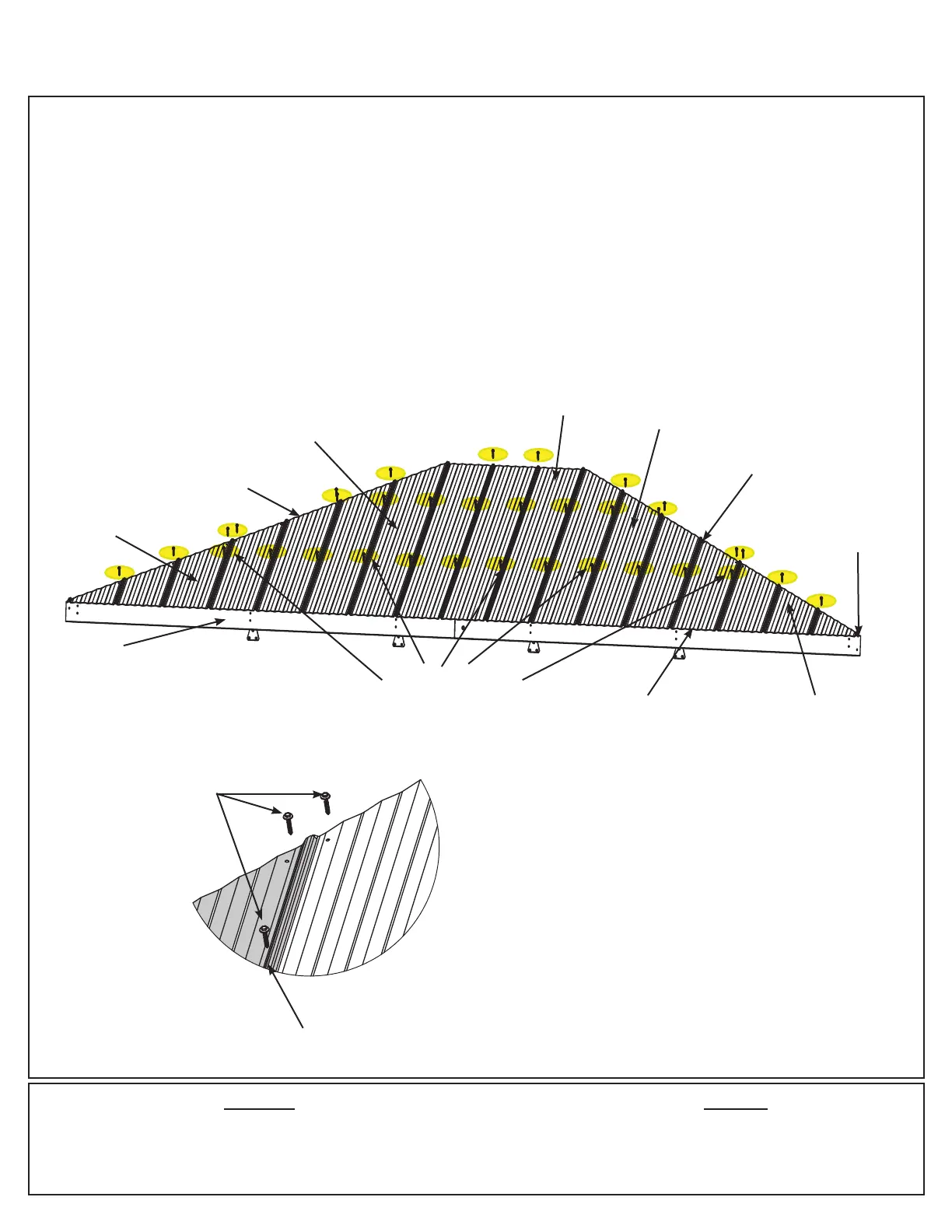

F14.3
Middle Panel
(1080) LT
Corner Rafter
(hidden)
(1081) RT
Corner Rafter
(hidden)
