Step 15: Attach Ridge Clips and Roof Edges - Large Roof
Hardware
32 x #8 x 1” Roong Screw
16 x #7 x 3/4” Wood Screw

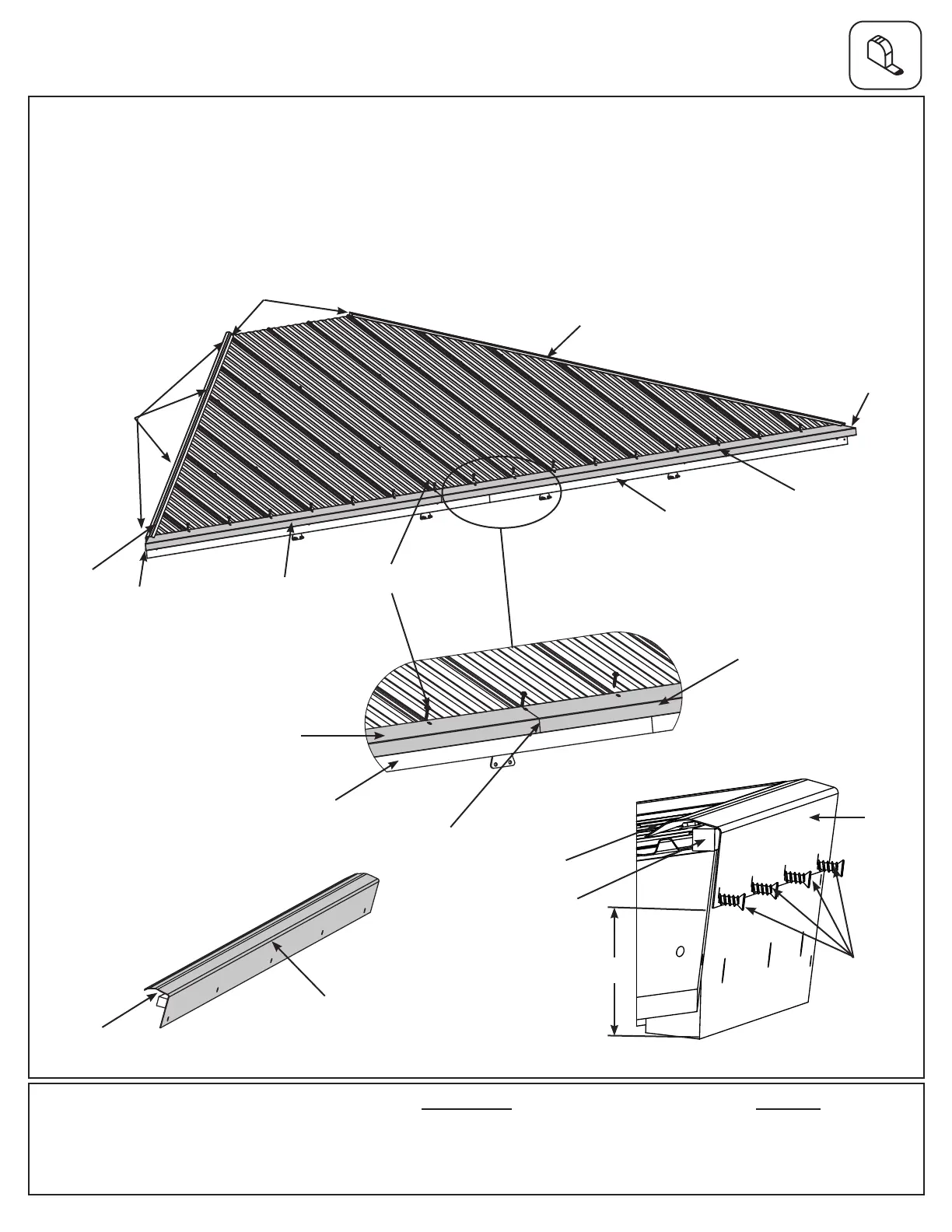

A: Place one Roof Edge Left 59-3/4 and one Roof Edge Right 83-3/4 on the bottom of each Large Roof Rafter
Assembly so the ends are ush with the outside ends of the Large Fascia Beam Assembly and meet tight in the
centre. Attach both Roof Edges with 16 #8 x 1” Roong Screws per Large Roof Rafter assembly. (F15.1 and
F15.2)
B: Place one Weather Seal on the inside of each Ridge Clip 85.25 then place one Ridge Clip 85.25 on each side
of each Large Roof Rafter Assembly so they cover the panels and attach with four #7 x 3/4” Wood Screws per
Ridge Clip 85.25. (F15.1, F15.3 and F15.4)
Components:
2 x Roof Edge Left 59-3/4
2 x Roof Edge Right 83-3/4
4 x Ridge Clip 85.25
4 x Weather Seal
Tight at centre
F15.1
F15.2
Roof Edge
Left 59-3/4
Roof Edge
Right 83-3/4
Large Fascia
Beam Assembly
Flush
Flush
#8 x 1” Roong
Screws (x 16)
Large Fascia
Beam Assembly
F15.3
F15.4
Side View
Flush
Ridge Clip
85.25
#7 x 3/4”
Wood Screws
(x 4 per side)
Weather
Seal
Roof Edge
Left 59-3/4
Roof Edge
Right 83-3/4
Ridge Clip
85.25
Panels
Weather
Seal
Ridge
Clip
85.25
#7 x 3/4”
Wood Screws
(x 4 per side)
2-1/2”
6.35 cm
Ridge Clip
85.25
