A: From inside the Post Assemblies measure 4’15/16’ (1.24 m) to mark the centre of each Short Beam Assembly.
(F16.1)
B: With all four assemblers place Small Roof Panel Assembly with Rafter Beam Brackets just in front of the Posts
then raise it up so it is over Short Beam Assembly, taking care not to drag the panel on the beams. Make sure the
middle Rafter Beam Bracket lines up to the centre mark. (F16.1)

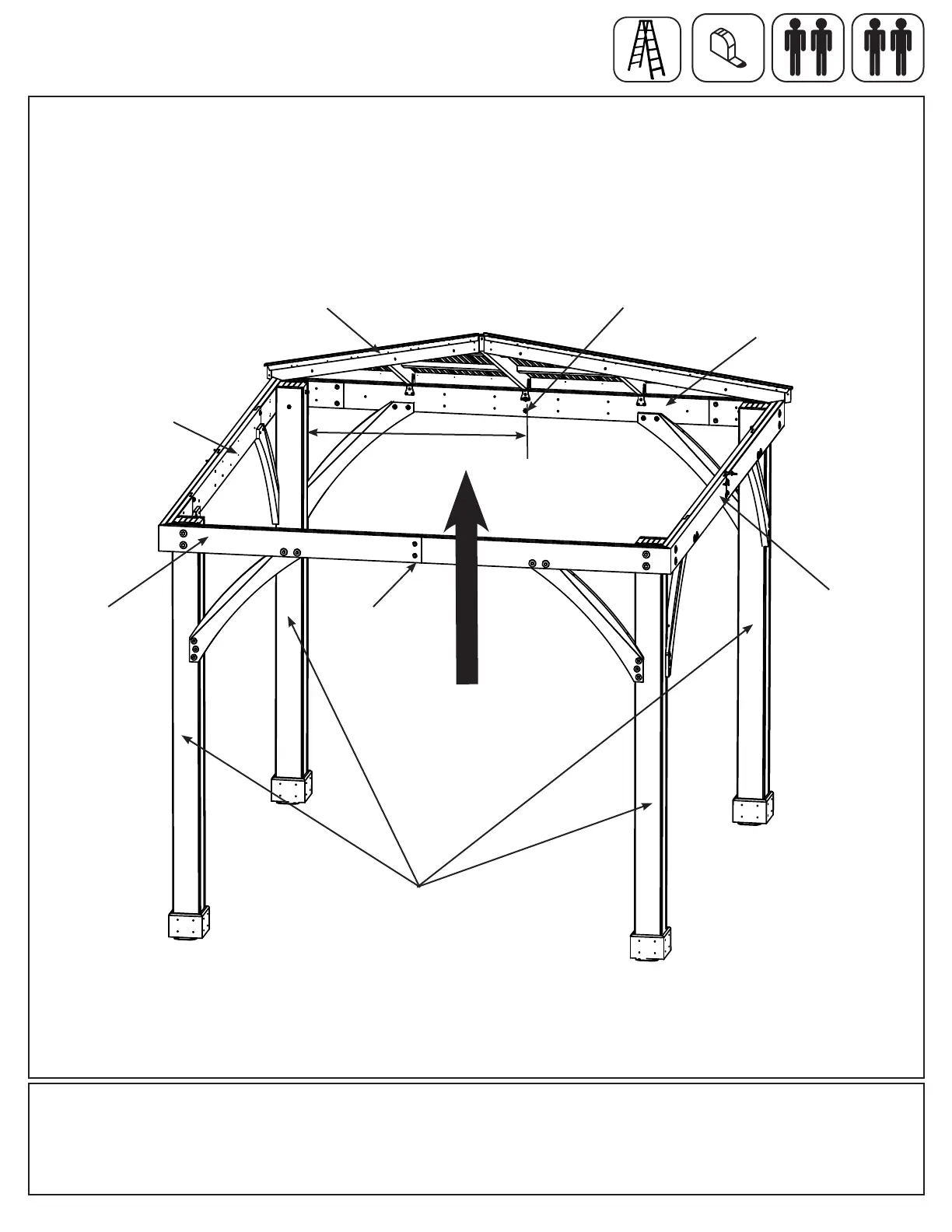

Step 16: Attach Roof Panels to Frame
Part 1
F16.1
In front of
Posts
Long Beam
Assembly
Post
Assembly
Mark centre
location
Mark centre
location (from
inside the
frame)
x 3
Short Beam
Assembly
One assembler to
support roof panel(s) at
all times until secure
Short Beam
Assembly
Long Beam
Assembly
4’15/16”
1.24 m
Small Roof Panel
Assembly
To Next Page
