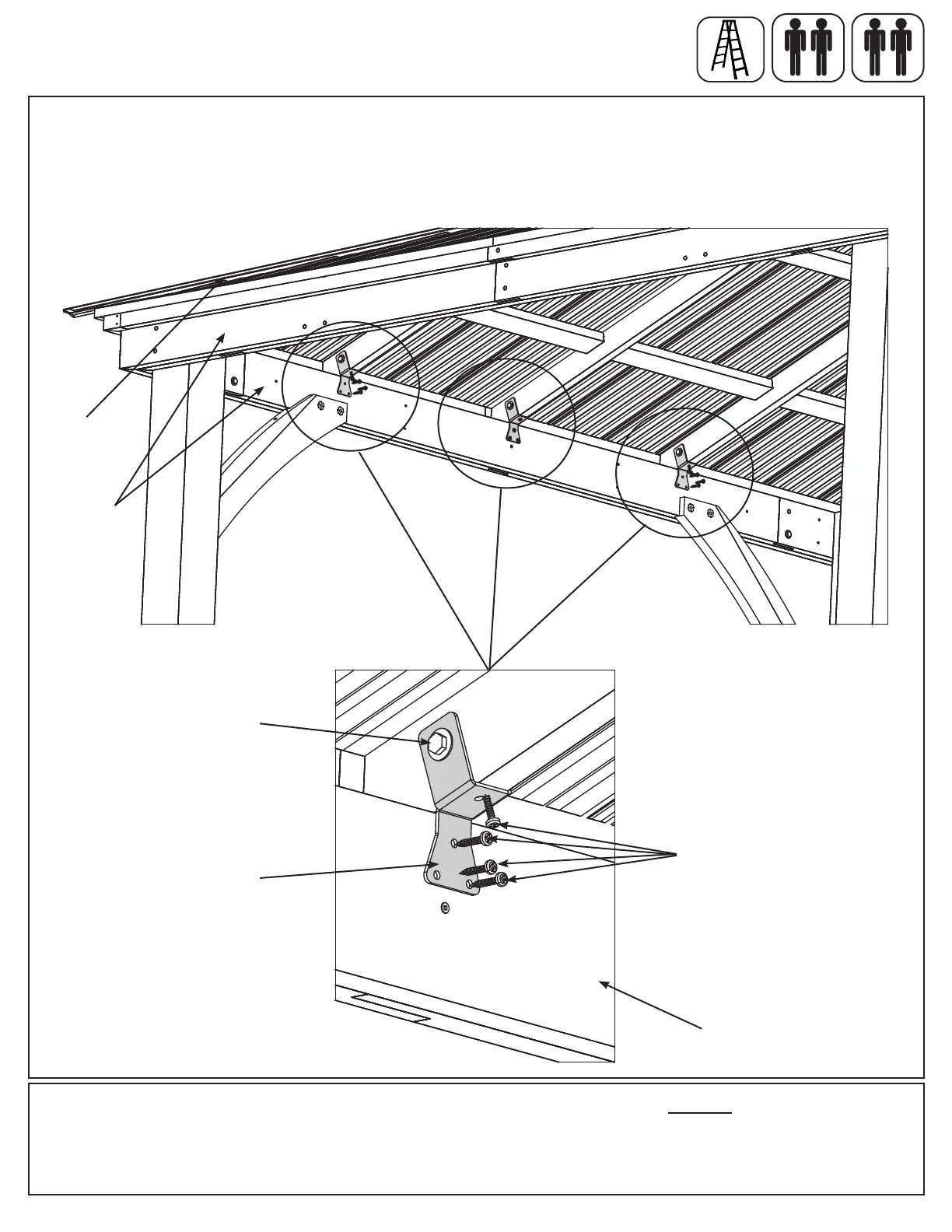

Step 22: Secure Rafter Beam Brackets
F22.1
A: From inside the assembly attach Rafter Beam Brackets to beams and rafters with four #10 x 1-1/4” Pan
Screws per bracket. (F22.1 and F22.2)
B: Tighten all bolts in Rafter Beam Brackets. (F22.1 and F22.2)
Hardware
56 x #10 x 1-1/4” Pan Screw
Inside View
Beam
Roof Panel
Assembly
F22.2
Rafter Beam
Bracket
#10 x 1-1/4”
Pan Screw
Beam
Tighten all
Rafter Beam
Bracket bolts
