Yardistry YM12935 - Step 25: Attach Tie Wrap Brackets and Ties; Tie Wrap Bracket and Tie Attachment

54 support@yardistrystructures.com
4- #10 x 1-1/4” Pan Screw
4- #10 x 2+-1/2” Pan Screw
16- #8 x 1” Pan Screw
4- Tie Wrap Bracket
4- #10 x 1-1/4” Pan Screw
4- #10 x 2+-1/2” Pan Screw
16- #8 x 1” Pan Screw
4- Tie Wrap Bracket
4- #10 x 1-1/4” Pan Screw
4- #10 x 2+-1/2” Pan Screw
16- #8 x 1” Pan Screw
4- Tie Wrap Bracket
A: Attach one Tie Wrap Bracket to each end of
one (961) Tie with one #10 x 1-1/4” Pan Screw
per bracket using the inside holes. (961) Tie is
tight to end of bracket. (F25.1, F25.2 and F25.3)
B: With a helper place (961) Tie with brackets
against a (1088) Rafter on each Large Roof Panel
so (961) Tie is tight to (1088) Rafters and level.
Attach Tie Wrap Bracket to (1088) Rafters with
two #8 x 1” Pan Screws on both sides of each
bracket. (F25.1, F25.2 and F25.3)
C: Pre-drill with a 1/8” drill bit and secure Tie
Wrap Brackets to (961) Tie and (1088) Rafter with
one #10 x 2-1/2” Pan Screw per bracket. (F25.1,
F25.2 and F25.3)
D: Repeat Steps A to C for a second (961) Tie.
Components:
4 x Tie Wrap Bracket
Hardware
4 x #10 x 1-1/4” Pan Screw
16 x #8 x 1” Pan Screw
4 x #10 x 2-1/2” Pan Screw

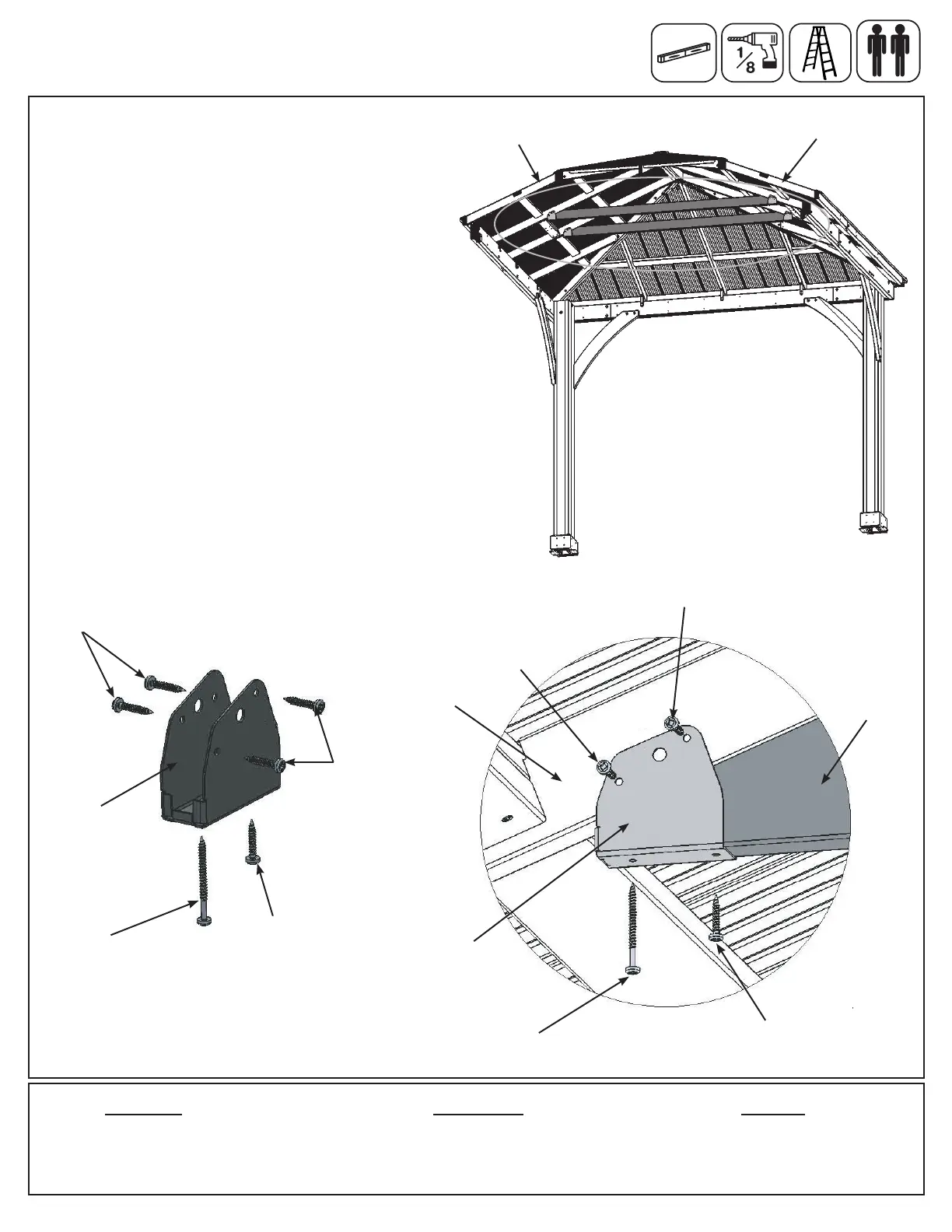

F25.1
#8 x 1”
Pan Screw
#10 x 2-1/2” Pan Screw
(pre-drill before installing)
#10 x 1-1/4”
Pan Screw
#10 x 1-1/4”
Pan Screw
(961) Tie
(1088)
Rafter
Tie Wrap
Bracket
Parts removed
for clarity
Step 25: Attach Tie Wrap Brackets and Ties
F25.2
F25.3
Tie Wrap
Bracket
#10 x 2-1/2”
Pan Screw
Large Roof
Panel
Large Roof Panel
Wood Parts
2 x (961) Tie
#8 x 1”
Pan Screw
#8 x 1”
Pan Screw
#8 x 1”
Pan Screw
