1 Introduction
1.3 System Layout
ArcWorld 50/50S/52/52S
1.3.2 Controller Base Assembly
The Controller Base Assembly includes the Top Hat and Interface, Control
Enclosure Assembly, Controller, Accessories/Air Panel, Welding Power
Supply, optional Transformer, and a Power Distribution Enclosure. (see
Fig. 1.2 for the location of these components).

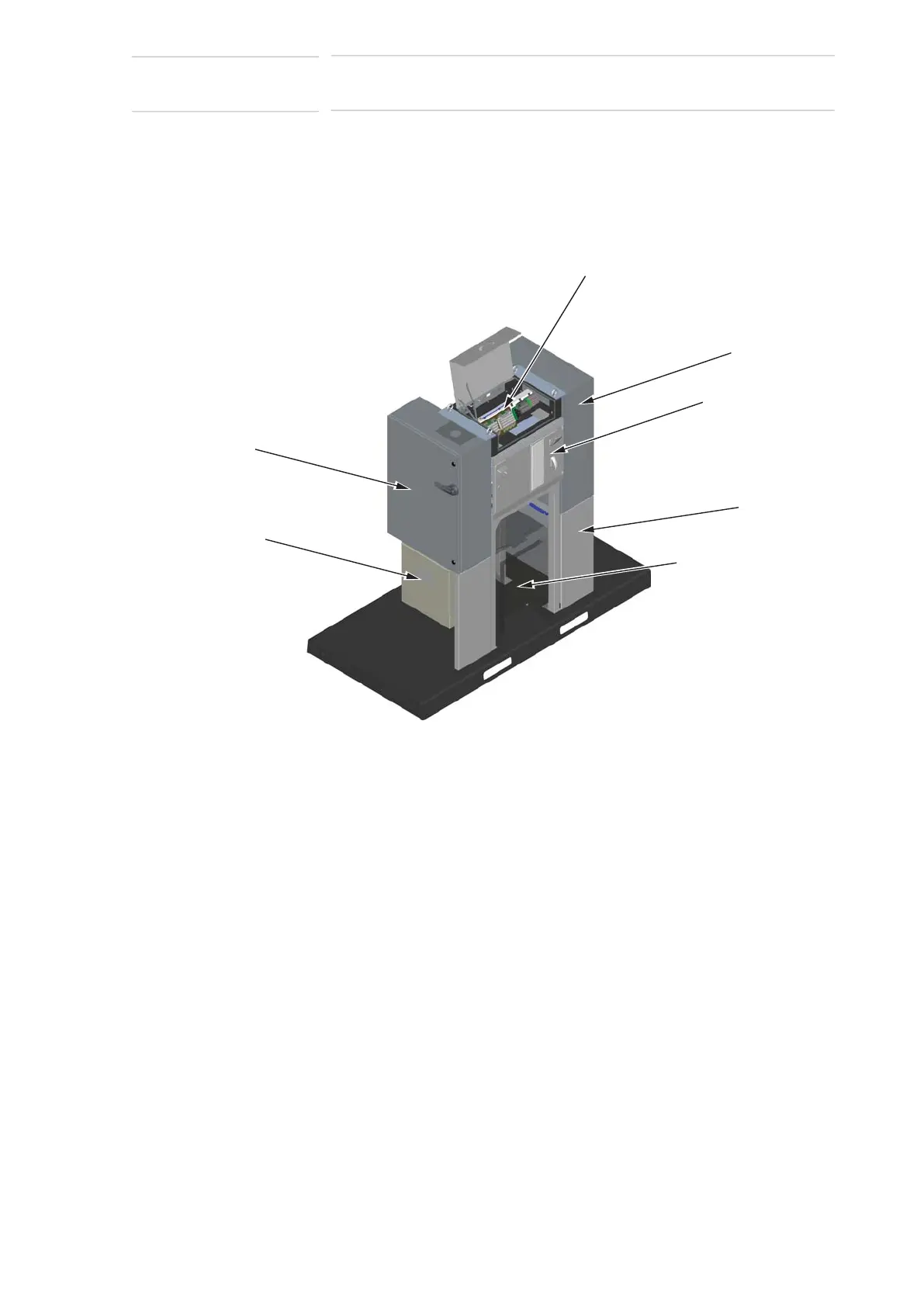

Fig. 1-2: Controller Base Assembly
• Top Hat and Interface
• FSU Relay Board
• Power Distribution Terminals
• Eight port Ethernet Switch
• Machine Safety Board
• External Axis Connection(s)
• Master Fuse Module
• Control Enclosure Assembly
• YRC1000 Controller
• Accessories/Air Panel
• Pneumatic Filter/Regulator
• Air Manifold
• Valve Assemblies
• Weld Accessories
• 110V GFCI Receptacle (Optional)
• Welding Power Supply
• Transformer (Optional)
Power Distribution
Enclosure
Optional Transformer
Controller
Top Hat and Interface
Welding Power Supply
Accessories/
Air Panel
Control Enclosure
Assembly
