3 Installation
3.4 Installing the System Components
ArcWorld 50/50S/52/52S
3.4.1 Door Latch Alignment
Adjust the location of the door latch as necessary to provide smooth
operation of the door assembly. A #14 spanner bit is provided to loosen
and adjust the location of the latch assembly. Shims can also be placed
beneath the fence posts to make gross adjustments. See Fig. 3-6 for latch
adjustments.

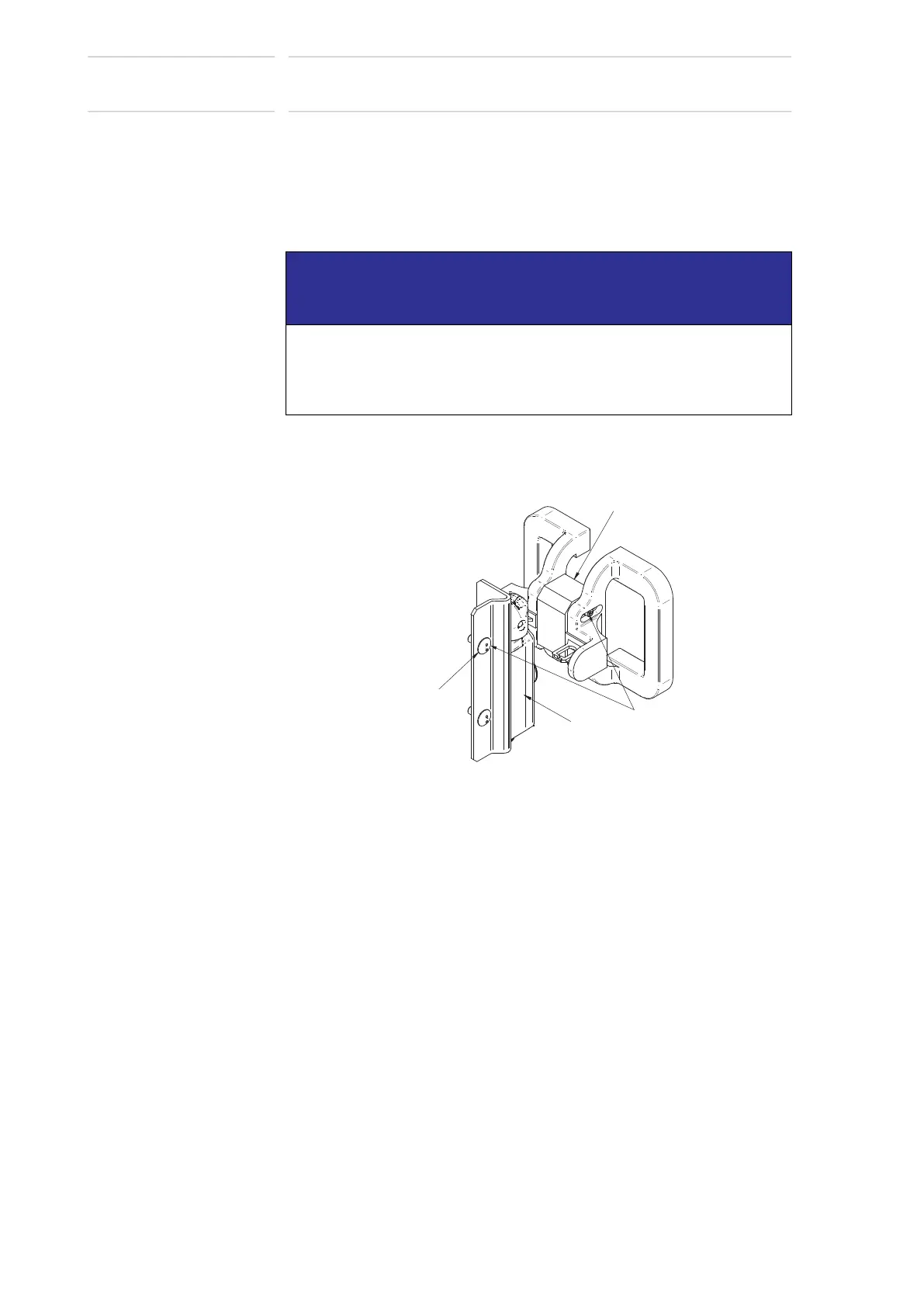

Fig. 3-6: Door Latch Alignment
NOTICE
For Lockout/Tagout of the door interlock switch:
• insert supplied key into interlock switch.
• place lock on key.
DOOR HANDLE
SPACER BLOCK
INTERLOCK
SWITCH KIT
5/16-18x3/4
PAN HEAD
SCREW
ALIGNMENT
SCREWS
