1-20
183574-1CD
183574-1CD
1 Introduction
1.4 System Overview and Variations
ArcWorld 50/50S/52/52S

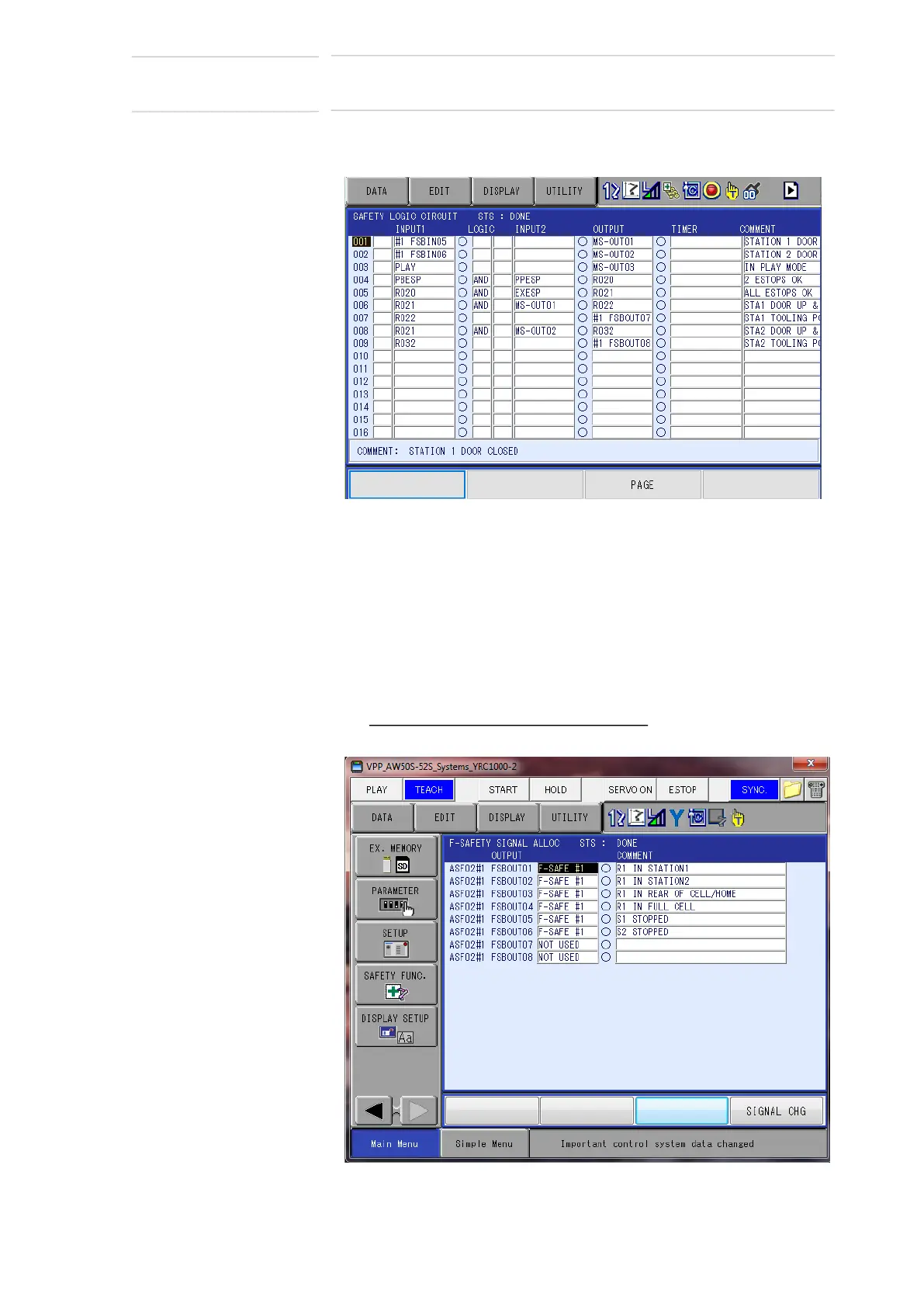

• Safety Logic Circuit:
– 52S shown
• Tooling Power Outputs
– The FSU breakout card is configured with logic to control
tooling power at Station 1 and Station 2. The tooling power
outputs will be energized in these conditions:
• Any EMERGENCY STOP button is NOT pressed
• Corresponding barrier door is fully closed (door is
determined to be completely down with safety sensor
detecting this condition)
– Safety Logic Circuit Ext Signal Allocation
(AW52S Shown)
To Next Page
