2 INSTALLATION
19

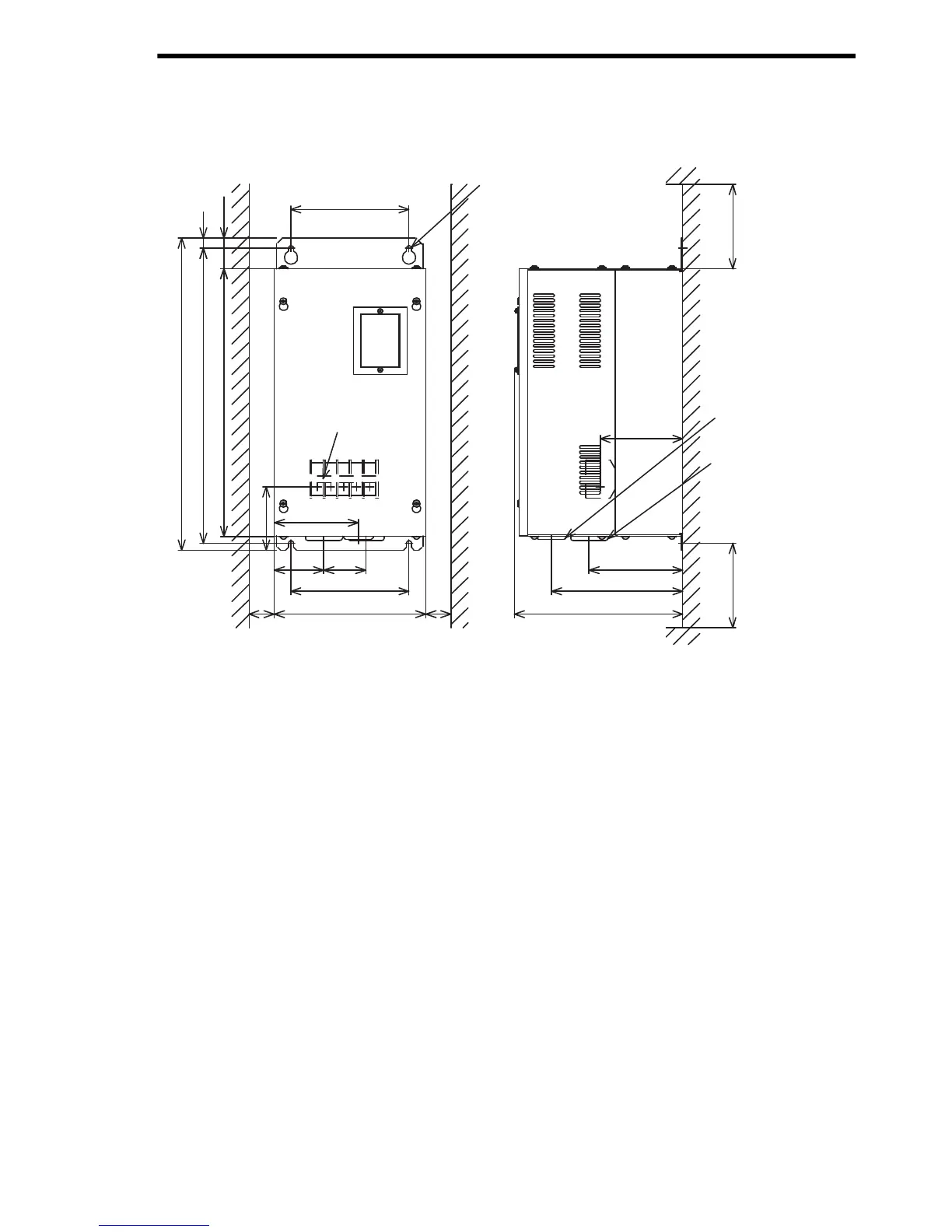

Fig. 3 Braking Unit Dimensions in inches (mm) CDBR-2045B
5.51 (140)
(59)
7.09 (180)
4.37 (111)
6.14 (156)
7.87 (200)
3.86 (98)
3.94 (100)
2.95 (75)
12.48 (317) 13.78 (350) 14.57 (370)
1.44 (36.5)
0.47 (12)
5.51 (140)
MAIN CIRCUIT
TERMINAL M5
2−LEAD WIRE OUTLET
1.38 (35) DIA RUBBER
BUSH
4−M6
MTG HOLE
3.94 (100) OR MORE
WIRE OUTLET 1.10 (28)
DIA RUBBER BUSH
3.94 (100) OR MORE
2.32
1.97 (50)
1.18 (30)
OR MORE
1.18 (30)
OR MORE
