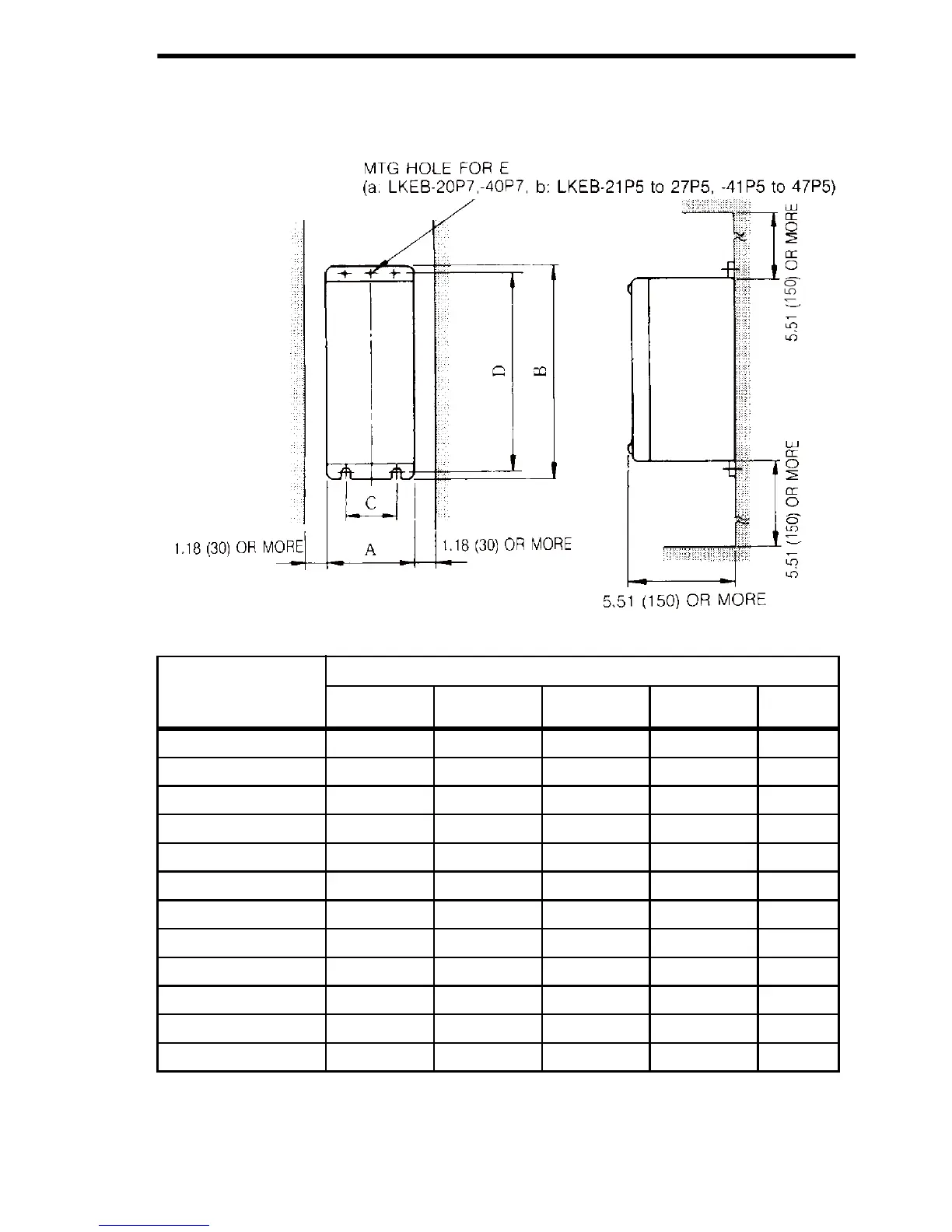

Fig. 7 Braking Resistor Unit Dimensions in inches (mm) [for 0.5 to 10HP (0.4 to
7.5kW)]
a
b
b
Braking Resistor
Unit Model
(LKEB-)
Dimensions in inches (mm)
ABCDE
20P7 4.13 (105) 10.83 (275) 1.97 (50) 10.24 (260) M5
21P5 5.12 (130) 13.78 (350) 2.95 (75) 13.19 (335) M5
22P2 5.12 (130) 13.78 (350) 2.95 (75) 13.19 (335) M5
23P7 5.12 (130) 13.78 (350) 2.95 (75) 13.19 (335) M5
25P5 9.84 (250) 13.78 (350) 7.87 (200) 13.19 (335) M6
27P5 9.84 (250) 13.78 (350) 7.87 (200) 13.19 (335) M6
40P7 4.13 (105) 10.83 (275) 1.97 (50) 10.24 (260) M5
41P5 5.12 (130) 13.78 (350) 2.95 (75) 13.19 (335) M5
42P2 5.12 (130) 13.78 (350) 2.95 (75) 13.19 (335) M5
43P7 5.12 (130) 13.78 (350) 2.95 (75) 13.19 (335) M5
45P5 9.84 (250) 13.78 (350) 7.87 (200) 13.19 (335) M6
47P5 9.84 (250) 13.78 (350) 7.87 (200) 13.19 (335) M6
