YASKAWA CDBR-2015B User Manual

24

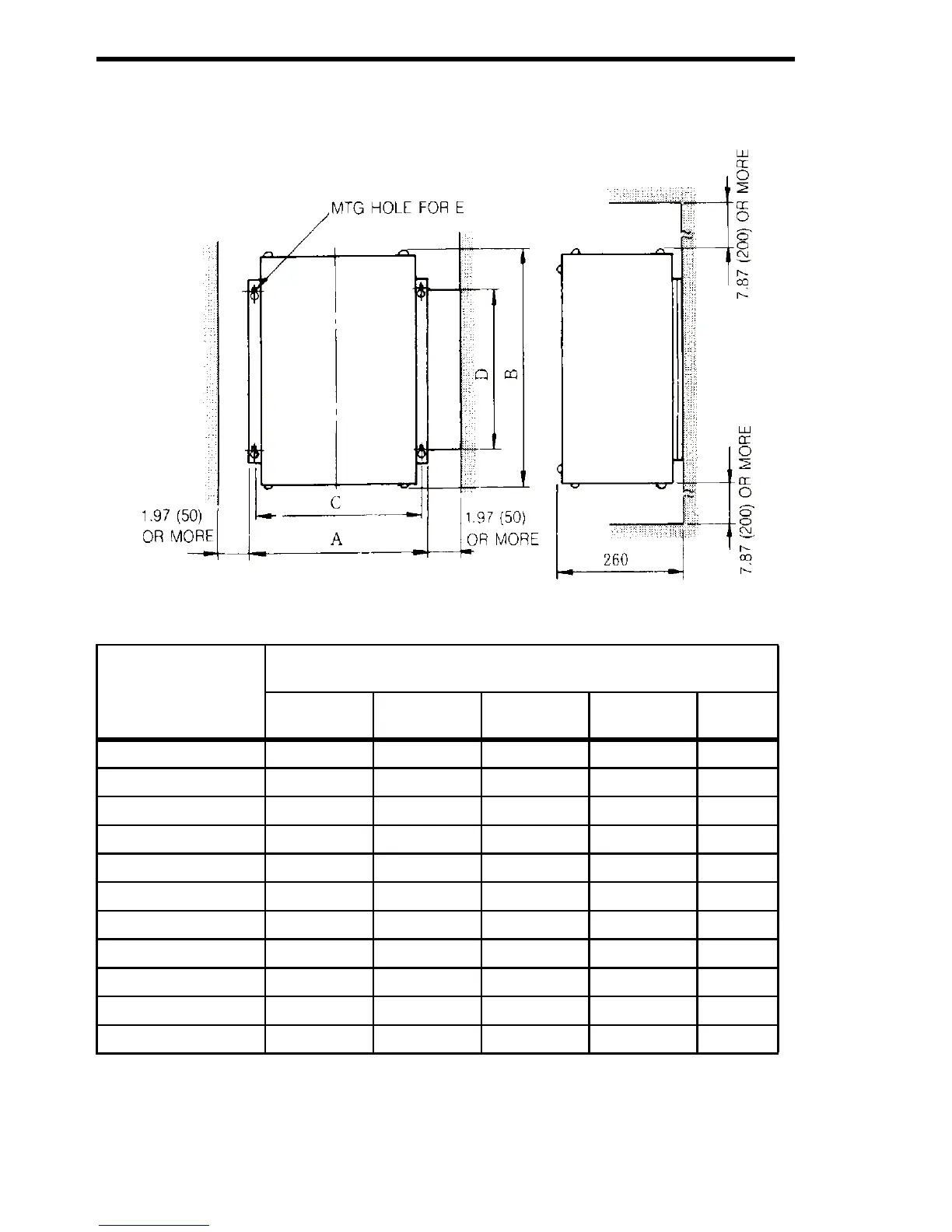

Fig. 8 Braking Resistor Unit Dimensions in inches (mm) [for 15 to 60HP (11 to
45kW)]
Braking Resistor
Unit Model
(LKEB-)
Dimensions in inches (mm)
ABCDE
2011 10.48 (266) 21.38 (543) 9.69 (246) 13.39 (340) M8
2015 14.02 (356) 21.38 (543) 13.23 (336) 13.39 (340) M8
2018 17.56 (446) 21.38 (543) 16.77 (426) 13.39 (340) M8
2022 17.56 (446) 21.38 (543) 16.77 (426) 13.39 (340) M8
4011 13.78 (350) 16.22 (412) 12.99 (330) 12.80 (325) M6
4015 13.78 (350) 16.22 (412) 12.99 (330) 12.80 (325) M6
4018 17.56 (446) 21.38 (543) 16.77 (426) 13.39 (340) M8
4022 17.56 (446) 21.38 (543) 16.77 (426) 13.39 (340) M8
4030 14.02 (356) 37.64 (956) 13.23 (336) 29.13 (740) M8
4037 17.56 (446) 37.64 (956) 16.77 (426) 29.13 (740) M8
4045 17.56 (446) 37.64 (956) 16.77 (426) 29.13 (740) M8
