2 Mechanical Installation
YASKAWA Europe TOMP_C710606_75A V1000 IP66 - Quick Start Guide EN 11
Main Circuit Wiring
Note: Main circuit wires should be multiconductor 600 V vinyl insulated line with a continuous maximum allowable temperature of over 70qC (such as ÖLFLEX® CLASSIC
100/100CY by Lapp Kabel).
Note: For single phase input, use 3 wire cable, and for 3-phase input, use 4 wire cable.
Note: Always use shielded motor cables.
Control Circuit Wiring
Note: Main circuit wires should be multiconductor shielded line with a continuous maximum allowable temperature of over 70qC (such as ÖLFLEX® CLASSIC 110/115CY
and UNITRONIC® LiYCY (TP) by Lapp Kabel).

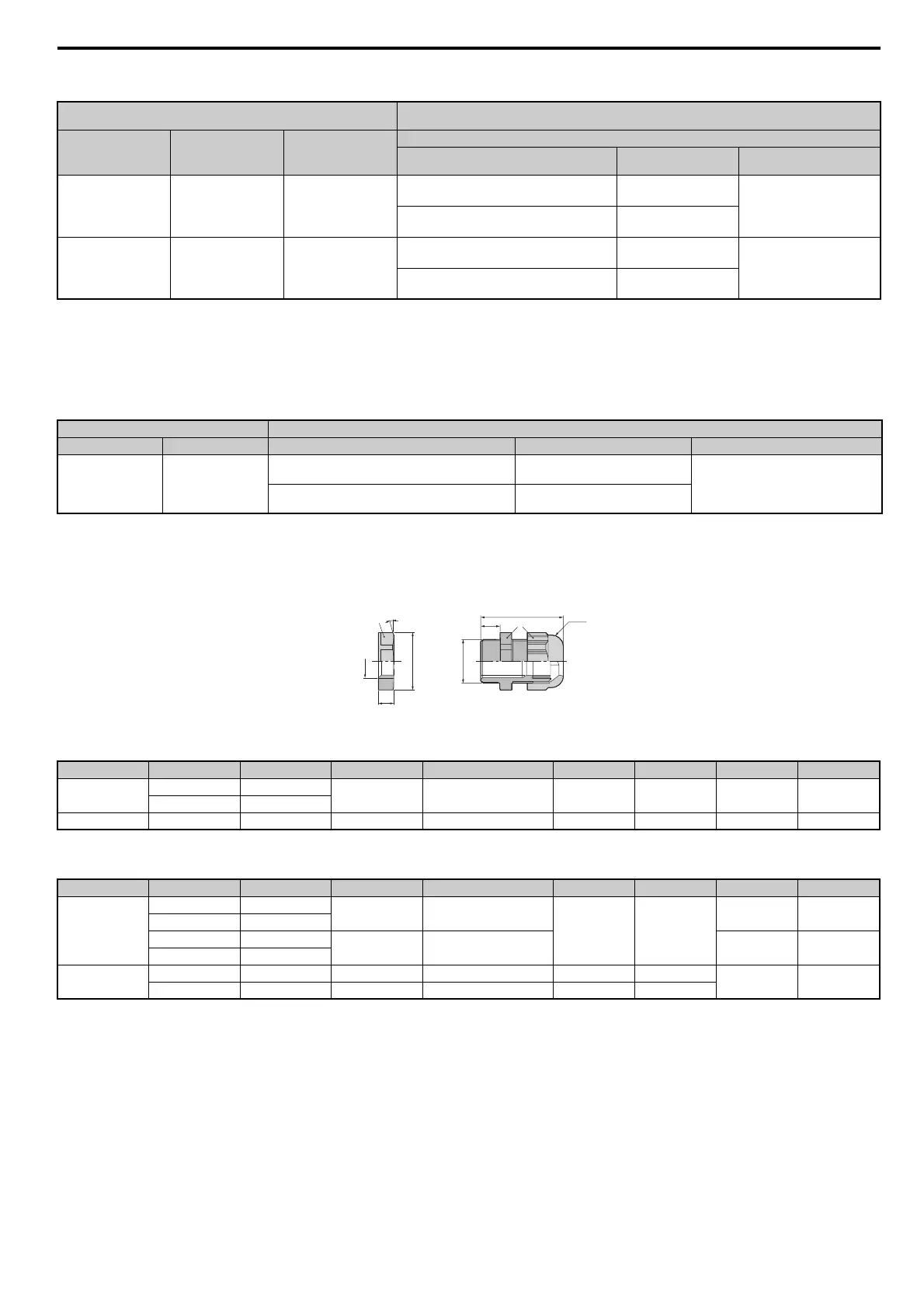

Dimensions - Lapp Kabel SKINTOP
Cable Glands for Control Wiring (glands are plastic)
Cable Glands for Main Circuit Input and Output Wiring (glands are plastic)
Drive Side Wiring Hole Diameter (mm) <1>
<1> Separate holes have been provided for input, output, and option wiring (total of 4 holes).
<2> Note that the cable gland body and locknut are usually sold separately.
Recommended Cable Glands
(Lapp Kabel)
Drive Size Input Output
Input / Output Wiring
Cable Gland No./Model <2>
Cable Diameter
(mm)
Tightening Torque
(Nm)
A 28.8 28.8
Body: 53015150/STR 21
Locknut: 53019050/GMP-GL21
9 to 16
Body: 5.0
Locknut: 7.5
Body: 53015050/ST 21
Locknut: 53019050/GMP-GL21
13 to 18
B3737
Body: 53015160/STR 29
Locknut: 53019060/GMP-GL29
11 to 22
Body: 5.0
Locknut: 7.5
Body: 53015060/ST 29
Locknut: 53019060/GMP-GL29
14 to 25
Drive Side Wiring Hole <1>
<1> Sealing grommets fitted to control circuit wiring holes on reception.
<2> Note that the cable gland body and locknut are usually sold separately.
Recommended Cable Glands for I/O Wiring (Lapp Kabel)
Diameter (mm) Number of Holes Cable Gland No./Model <2> Cable Diameter (mm) Tightening Torque (Nm)
23 2
Body: 53015140/STR 16
Locknut: 53019040/GMP-GL16
6 to 12
Body: 3.3
Locknut: 5.0
Body: 53015040/ST 16
Locknut: 53019040/GMP-GL16
9 to 14
Part No. Model PG Size Wrench Size SW (mm) A (mm) B (mm) C (mm) D (mm)
Body
53015140 STR 16
16 27 - - 44 10
53015040 ST 16
Locknut 53019040 GMP-GL 16 16 30 33 6 - -
Part No. Model PG Size Wrench Size SW (mm) A (mm) B (mm) C (mm) D (mm)
Body
53015150 STR 21
21 34
--
49 11
53015050 ST 21
53015160 STR 29
29 42 56 11
53015060 ST 29
LockNut
53019050 GMP-GL 21 21 36 39 7
--
53019060 GMP-GL 29 29 46 50 7
15
°
B
SW
φ
A
PG
Cap
C
SW
D
PG
Locknut Body
TOMP_C710606_75A_0_0_prePrint.pdf 43 21.12.2010 13:52:23
