3 Function Settings
3.2 Switch Settings
3-2
167646-1CD
HW1481264
Interface Board for Welding
Power Supply

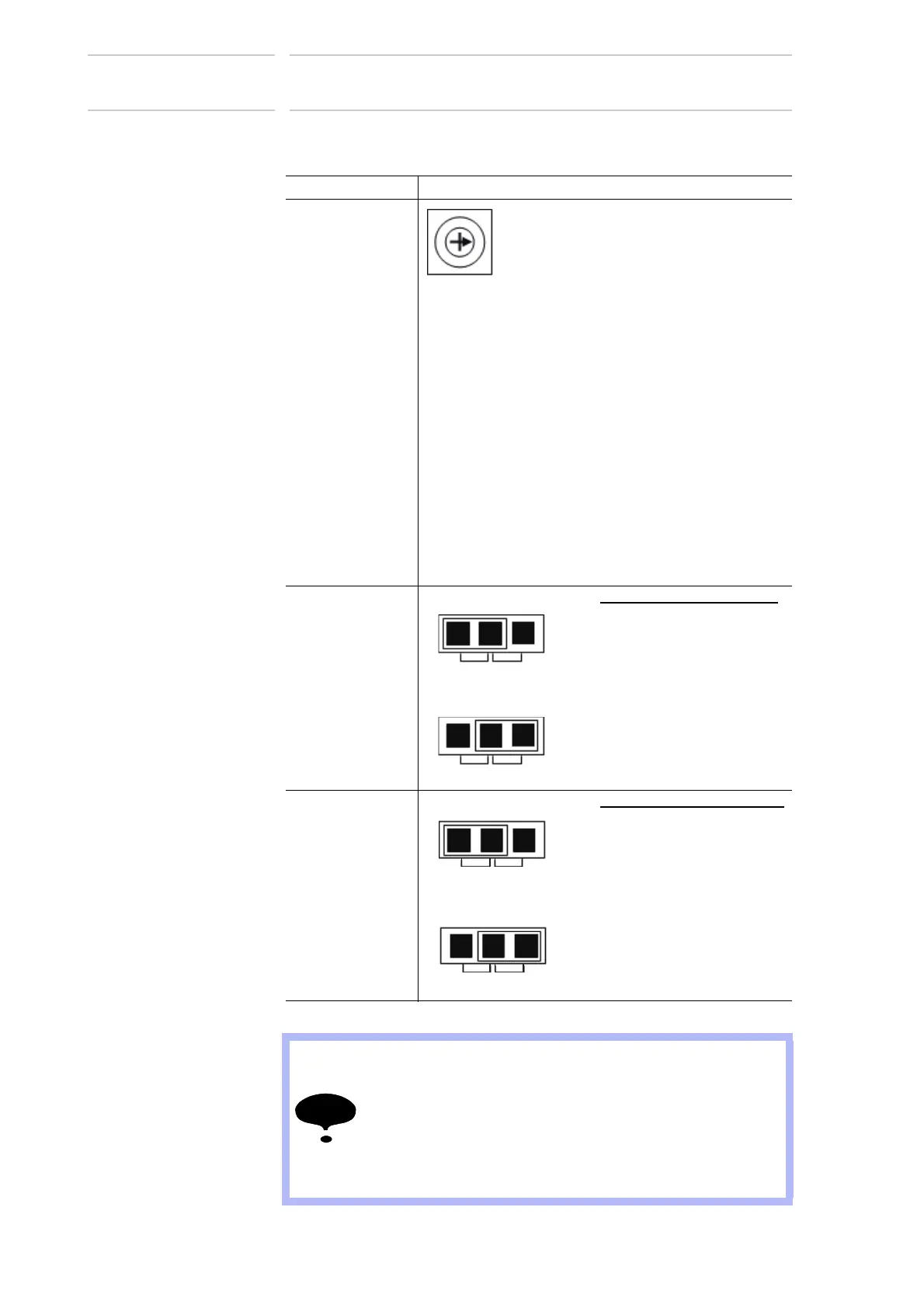

3.2 Switch Settings
Switch How to set
S1
Station setting
Sets the station.
The relations of the switch settings and the stations are
shown below.
Set the arrow to the number corresponding to the desired
station by using a precision screwdriver (Phillips or
flathead).
0: Not available
1: ST#01 (factory setting)
2: ST#02
3: ST#03
4: ST#04
5: ST#05
6: ST#06
7: ST#07
8: ST#08
9: ST#09
A: ST#10
B: ST#11
C: ST#12
D: ST#13
E: Not available
F: Not available
The number after ST# is the station number which is
displayed on the programming pendant screen when
setting the I/O module.
SW1
Transfer rate
setting
1 to 2 short circuit: 4 Mbps
(factory setting)
* Must be set to 4 Mbps.
2 to 3 short circuit: 10 Mbps
* Not available
SW2
I/O communication
mode setting
1 to 2 short circuit: 17 BYTE
(factory setting)
* Must be set to 17 BYTE.
2 to 3 short circuit: 32 BYTE
* Not available
• Do not set S1 to 0, E, or F. Also, do not set 2 or more
boards to the same station. Otherwise, this board cannot
be recognized correctly.
• Do not set SW1 to 10 Mbps. If it is set to 10 Mbps, this
board cannot be recognized correctly.
• Do not set SW2 to 32 BYTE. If it is set to 32 BYTE, this
board cannot be recognized correctly.
17 BYTE/32 BYTE
13
SW2
