3.1 Handling Procedure
3-1
3 Installation
3.1 Handling Procedure
3.1.1 Using a Crane to Move the Controller
Check the following before handling the NX100:
• Confirm the weight of the controller before handling, and use a wire rope with a rating that
is greater than the weight of the controller.
• Install eyebolts for handling and confirm they are securely fastened before hoisting.
• Crane, sling, and forklift operations must be performed only by autho-
rized personnel.
Failure to observe this caution may result in injury or damage.
• Avoid jarring, dropping, or hitting the controller during handling.
Excessive vibration or impacting the NX100 may adversely affect the performance of the
NX100.
CAUTION
kA
kVA
NJ2533-1 MADE!IN!JAPAN
TYPE
480V
SERIAL!No.
DATE
50/60Hz
INTERRUPT!CURRENT
POWER!SUPPLY
NX100/
ERCR-
3PHASE
NX100
NJ1530
ＯＲＤＥＲ ＮＯ．
ＳＨＯＵＬＤ ＨＡＶＥ ＳＡＭＥ ＯＲＤＥＲ ＮＵＭＢＥＲ．
ＴＨＥ ＭＡＮＩＰＵＬＡＴＯＲ ＡＮＤ ＣＯＮＴＲＯＬＬＥＲ
ENABLE
PLAY!!!MODE
ON
O
F
F
WARNING
High!Voltage
with!power!ON.
Do!not!open!the!door
M
E
N
C
G
R
E
O
S
T
P
E
Y

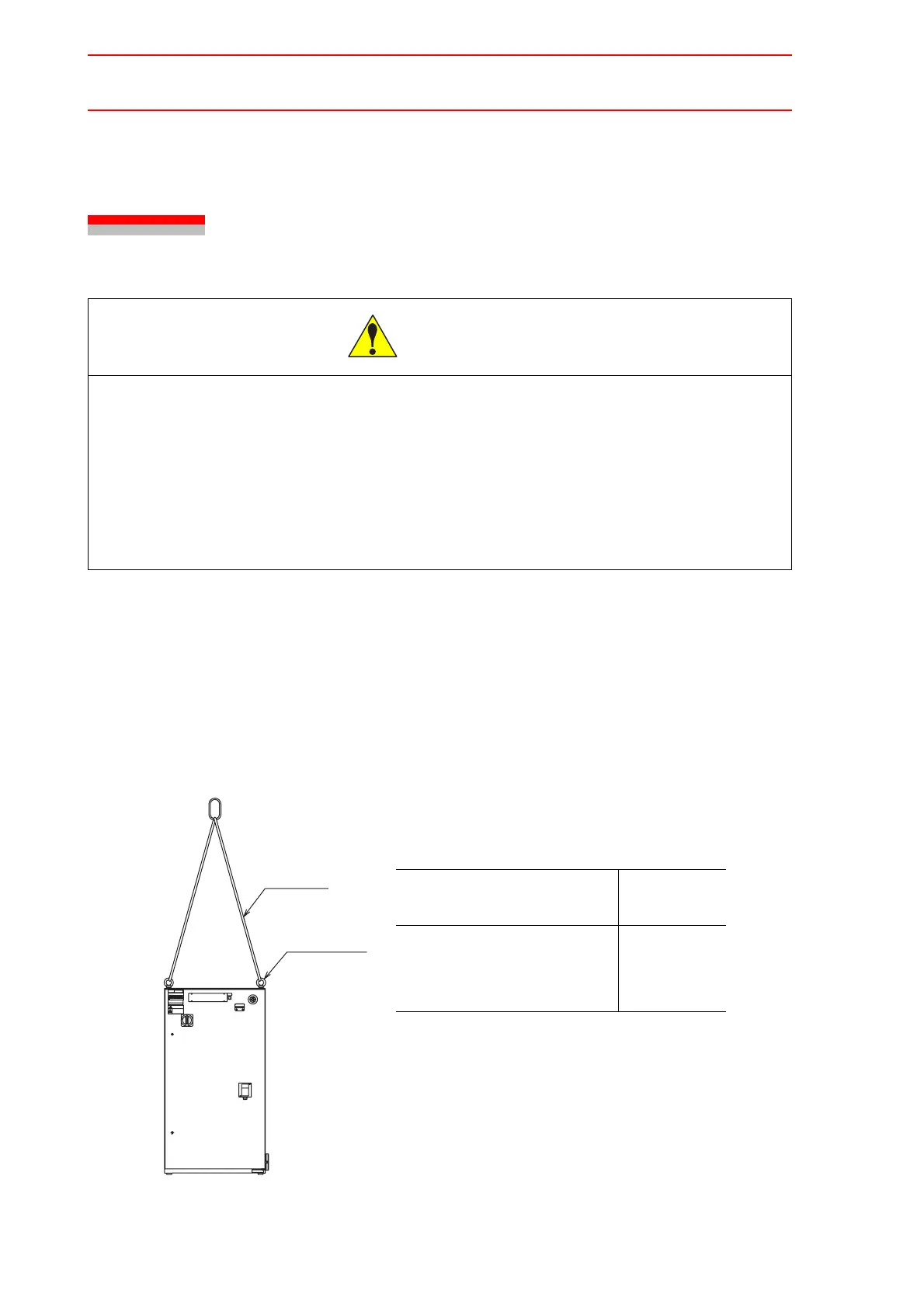

Wire!Rope
M16!Eyebolts
THE WEIGHT OF NX100 (approx)
NX100 equivalent model
Approx.
weight (kg)
HP3, EA1400N, HP6, HP20,
EA1900N, UP20MN, UP50N,
ES165N, HP165, ES200N,
ES165RN, ES200RN
250
