3.4 Mounting the Controller
3-5
3.4 Mounting the Controller
Attach the controller to the floor using user-supplied brackets made according to the specifica-
tions shown below.
• Do not climb on top of the NX100.
Failure to observe this caution could lead to injury or mechanical failure.
Refer to the Instruction Manual for information on installation of the manipulator.
CAUTION
Tapped!Holes!for
M10!Screws!on!
the!NX100!Side
40
30
50
30
50
(mm)
2-12!mm
diameter!
holes
kA
kVA
NJ2533-1 MADE!IN!JAPAN
TYPE
480V
SERIAL!No.
DATE
50/60Hz
INTERRUPT!CURRENT
POWER!SUPPLY
NX100/
ERCR-
3PHASE
NX100
NJ1530
ENABLE
PLAY!!!MODE
WARNING
High!Voltage
with!power!ON.
Do!not!open!the!door
ON
O
F
F
M
E
N
C
G
R
E
O
S
T
P
E
Y

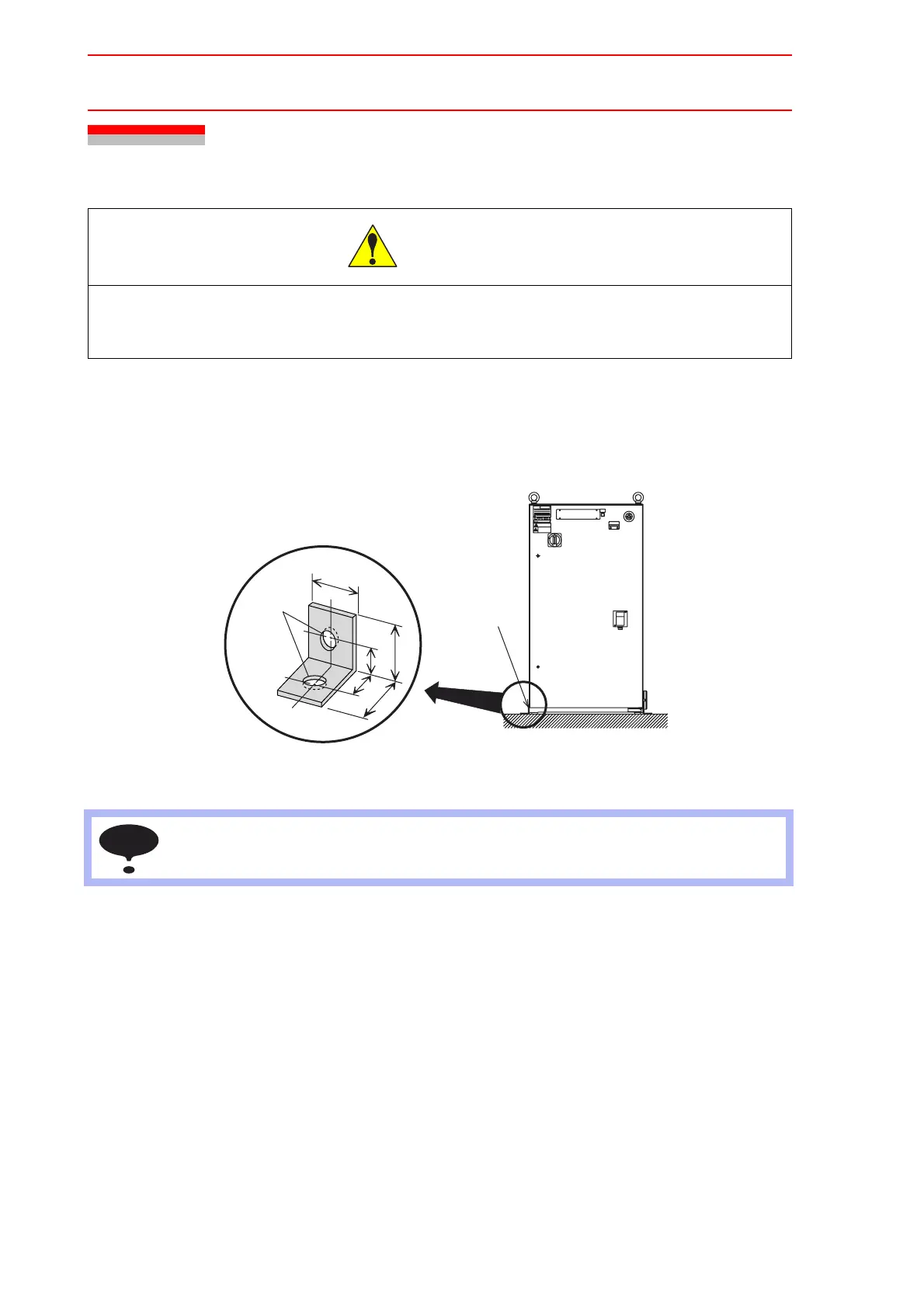

Attaching the NX100 (mm)
External Dimensions (mm)
