Appendix A System Registers Lists

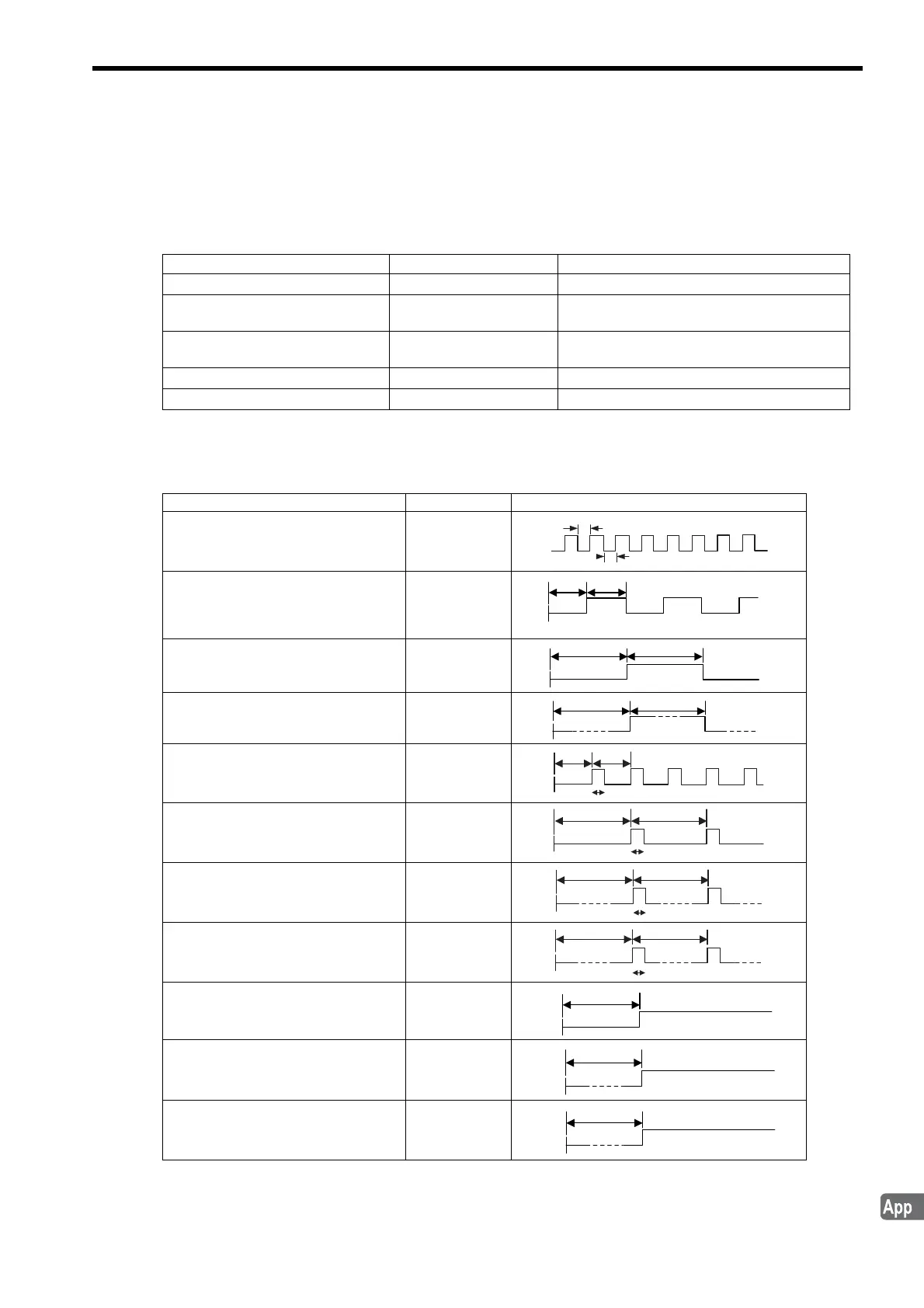

A.1 System Service Registers
A-3
Appendices
Appendix A System Registers Lists
A.1 System Service Registers
( 1 ) Shared by All Drawings
( 2 ) DWG.H Only
Operation starts when high-speed scan starts.
Name Register No. Remarks
Reserved (Reserved for the system) SB000000
(Not used)
First High-speed Scan SB000001
ON for only the first scan after high-speed scan is
started.
First Low-speed Scan SB000003
ON for only the first scan after low-speed scan is
started.
Always ON SB000004
Always ON (= 1)
Reserved (Reserved for the system) SB000005 to SB00000F
(Not used)
Name Register No. Remarks
1-scan Flicker Relay SB000010
0.5-s Flicker Relay SB000011
1.0-s Flicker Relay SB000012
2.0-s Flicker Relay SB000013
0.5-s Sampling Relay SB000014
1.0-s Sampling Relay SB000015
2.0-s Sampling Relay SB000016
60.0-s Sampling Relay SB000017
1.0 s After Start of Scan Relay SB000018
2.0 s After Start of Scan Relay SB000019
5.0 s After Start of Scan Relay SB00001A
1 scan
1 scan
0.5s
0.5s
1.0s 1.0s
2.0s 2.0s
0.5s 0.5s
1 scan
1.0s 1.0s
1 scan
1 scan
2.0s 2.0s
1 scan
60.0s 60.0s
1.0s
2.0s
5.0s
