3.4 Self-configuration and Definition Files
3.4.4 Current Value and Setting Data in SVB
3-33
Self-configuration and Created Definition Files
( 6 ) Changing Parameters in the SERVOPACK Tab Page

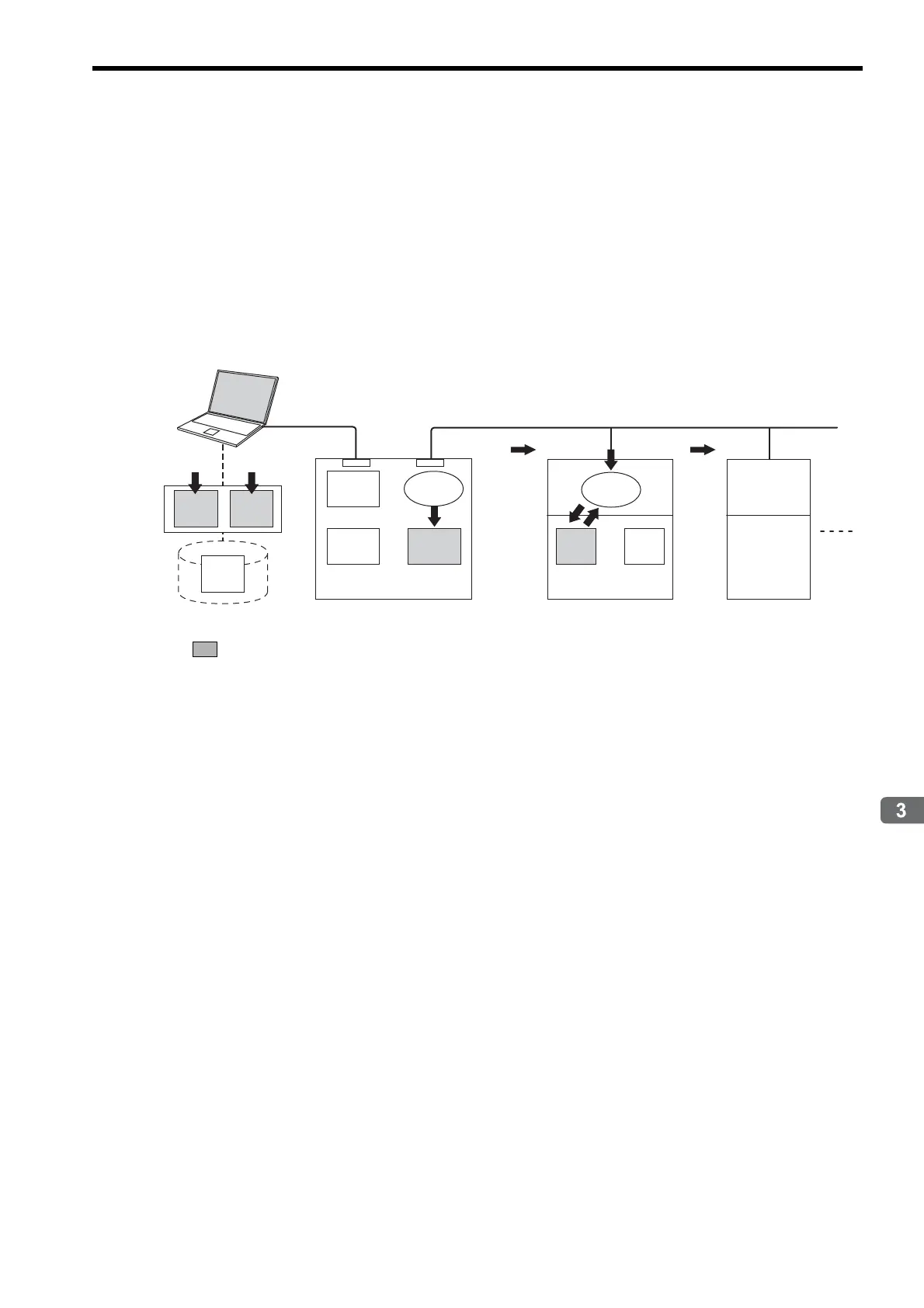

The data flow for SERVOPACK parameters is as follows when parameters for the cursor position are changed from the
SERVOPACK Tab Page in the SVB Definition Window for MPE720:
• The MPE720 writes parameters of the relevant axis to the followings when the ENTER Key is pressed on the
computer. (The parameters other than those of the relevant axis will not be written.)
• Input Data (set data) on the SERVOPACK Tab Page
• SDRAM of the Machine Controller
• RAM of the SERVOPACK
• After having completed writing, the MPE720 updates the values in Input Data on the SERVOPACK Tab Page
with the parameter values stored in the RAM of the SERVOPACK.
 indicates data has been written.
MECHATROLINK
RAM
EEP
-ROM
SRAM
SDRAM
Input
Data
MPE720 㧔online㧕
HDD in personal computer
Display
Current
Value
Input
Data
Flash
Memory
SERVOPACK Parameters
(All Axes)
Parameters
System
Software
Control
Software
SERVOPACK SERVOPACK
Send Send
Machine Controller
