ELECTRICAL
The high voltage wiring for each unit
should be connected to the top of the
disconnect breaker located at the top left
in the Control Box.
The electrical supply for the WFC-SC5
can be anything between 86 and 265
volts AC. There are two power supply
boards in the Control Box that will take
voltage within this range and supply
proper output voltage. One power supply
generates 24vdc to power the Solution
Pump and provide 24 volt power to other
components that require it. The other
power supply provides 5vdc to power the
circuit boards and touch screen display
module.

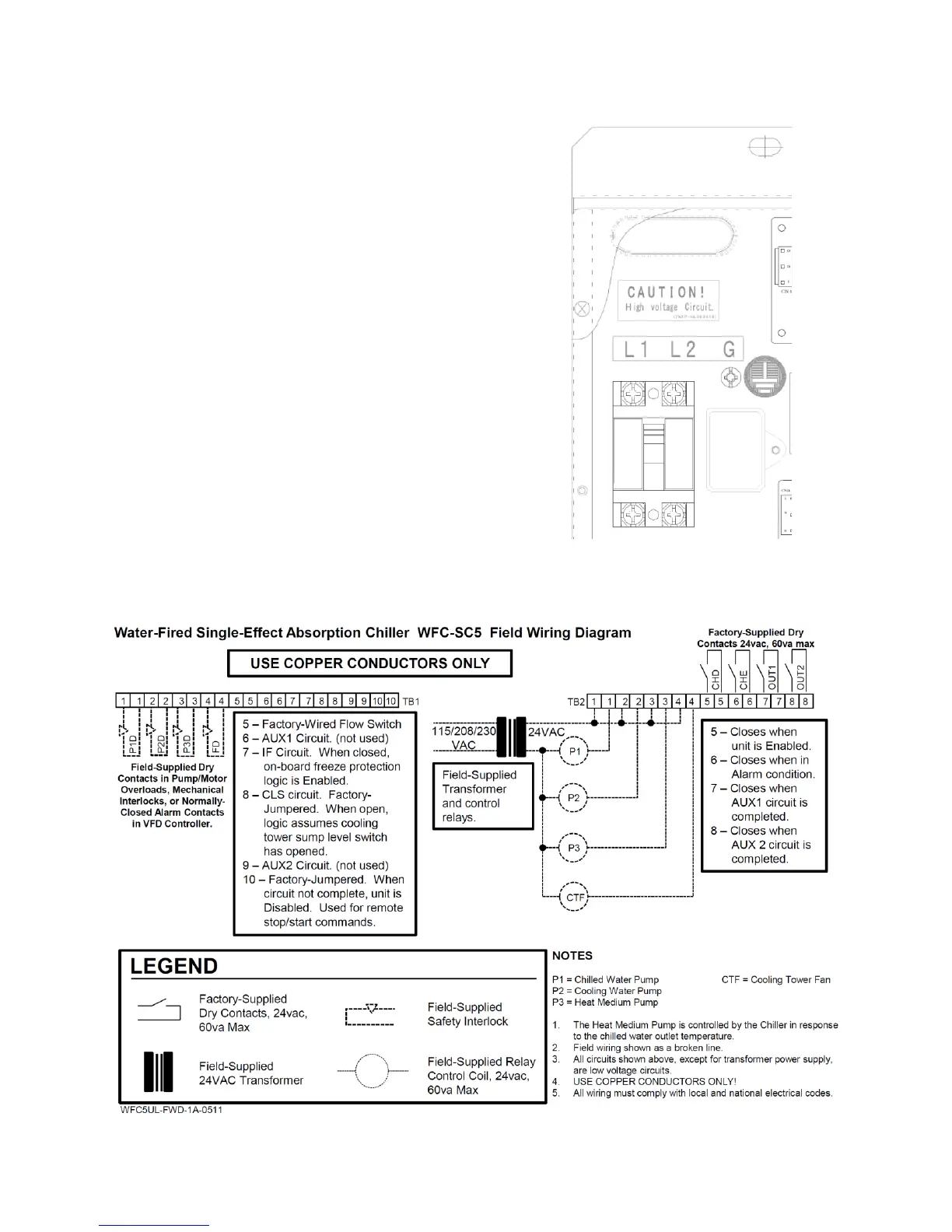

Figure 11 – Disconnect Breaker
TYPICAL FIELD WIRING DIAGRAM
Figure 12 – Typical Field Wiring Diagram
