WFC- SC(H) Series .Installation
- 6 -

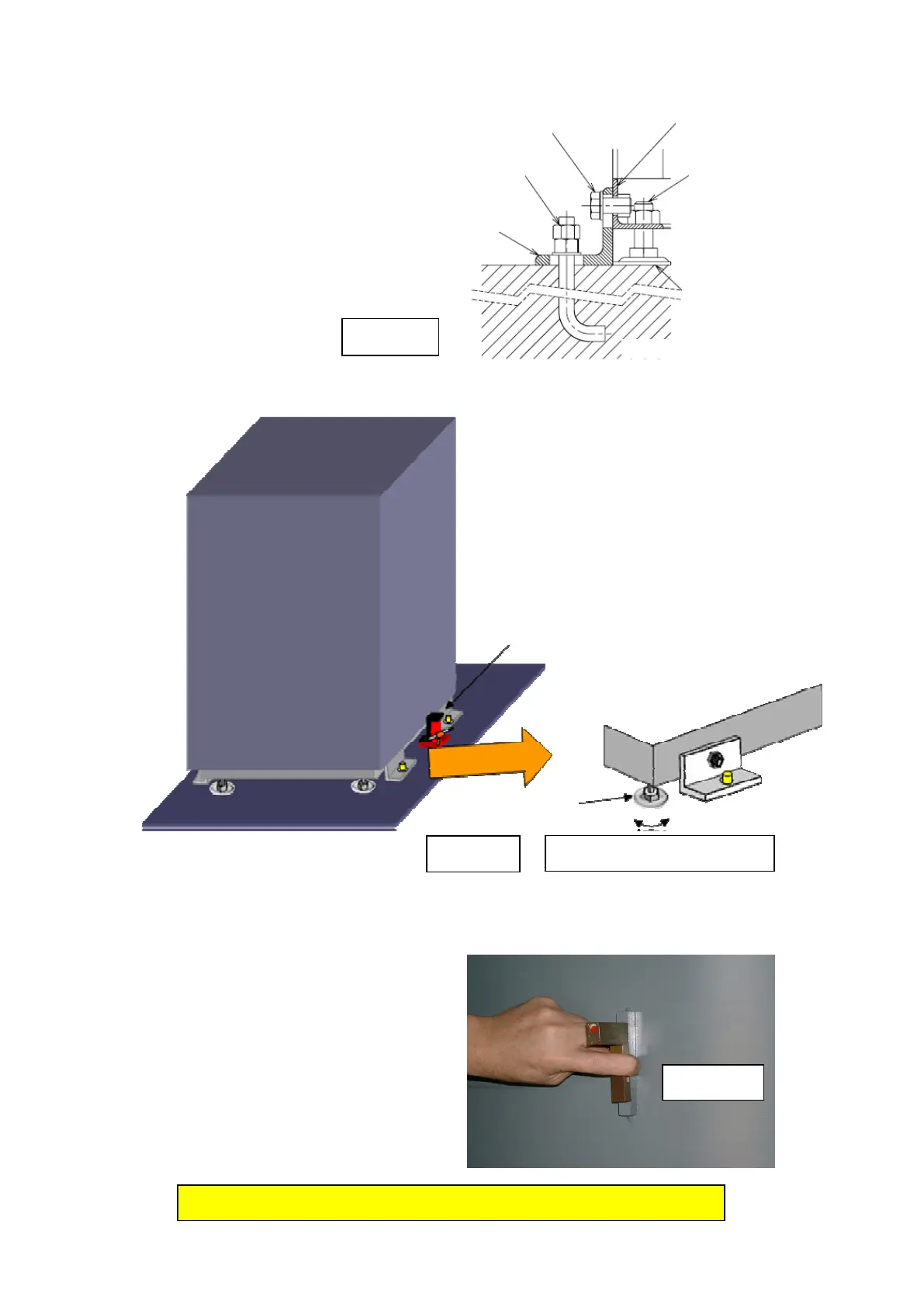

< For SC50 >
Fix the chiller with fixing plate and
anchor bolt.
The fixing plate and the anchor
bolts are delivered as chiller
accessory（Refer fig７）
Lift the chiller with a hydraulic jack
and level the chiller with the
leveling bolt. Base plate to be under
the leveling bolt. (Refer fig8）
< Common >
A spirit level must be used to monitor level as shims are inserted. Level reference bars
are provided on the upper vessel portion of the chiller-heater. The spirit level must be
placed on these as indicated in figure 9.
to obtain longitudinal and transverse
level. Should the installation comprise
more than one chiller-heater located side-
by side, it is important that all machines
be individually level and level with
respect to each other. It is of further
importance that all machines are leveled
before any piping connections are
attempted
Figure 9
Figure 7
Insert Base plate
Leveled by adjusting bolt
Hydraulic jack
with claws
Figure 8
Adjust the chiller level to be within 2/1000 front/back and side to side horizontal.
M20 Bolt & washer
(Standard accessory)
Washer
(Provided by the customer)
Fixing plate
(Standard accessory)
Adjusting bolt
(Standard accessory)
Base plate
(Standard accessory)
Concrete Foundation
WFC
