Yealink MVC640 All-In-One Quick Start Guide

8

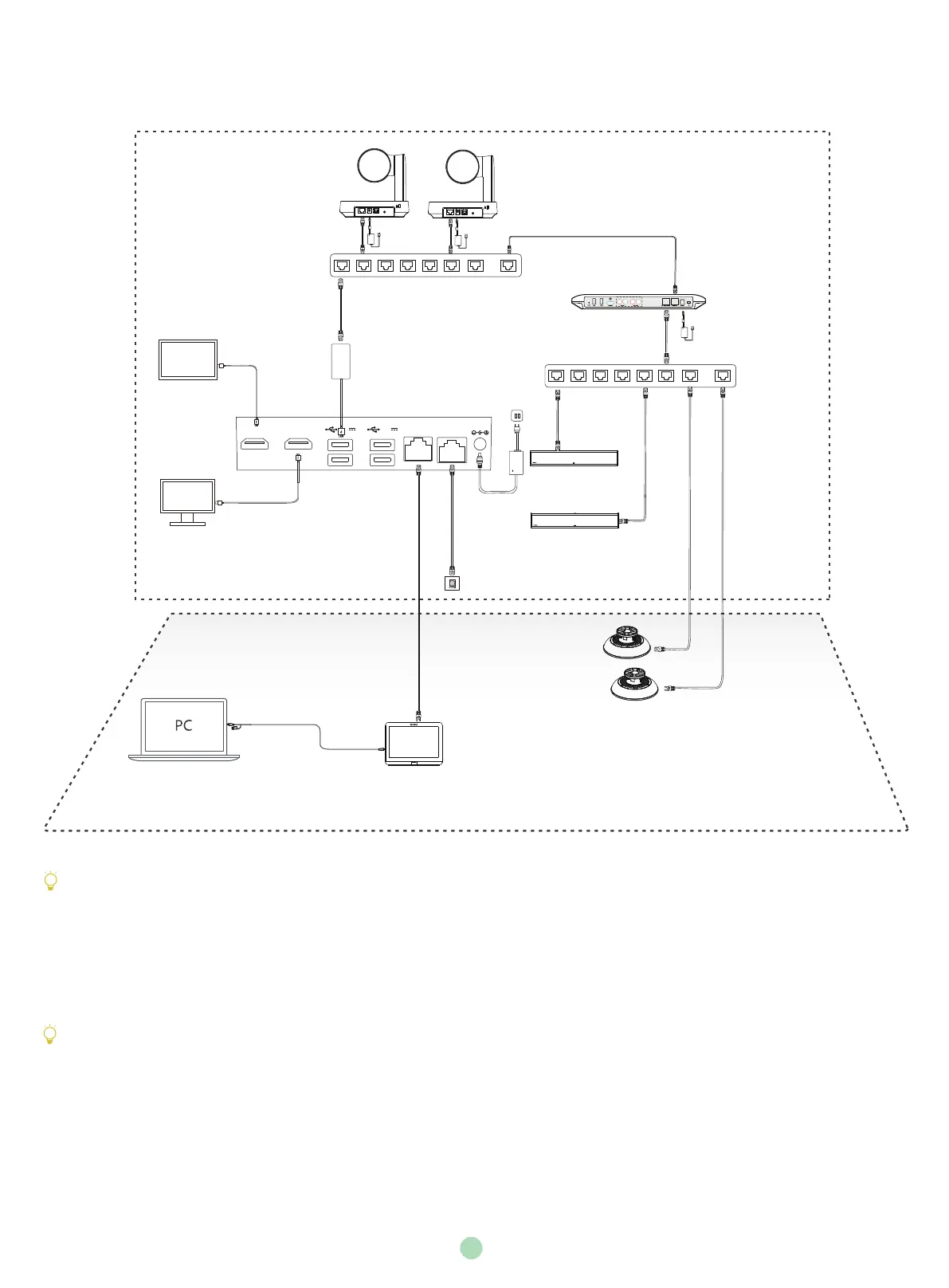

MVC940 Connection
连接MVC940 - MVC940 Verbindungen - Conexiones MVC940 - Connexions MVC940
When starting up the system for the first time, you need to connect a mouse to complete the initial configuration. We recommend that you use the
wireless mouse and keyboard kit.
首次启动时，你需要在MCore上接一个鼠标来完成系统初始化配置，我们推荐使用无线键鼠套装。
Beim ersten Start des Systems müssen Sie eine Maus anschließen, um die Ersteinrichtung vorzunehmen.Wir empfehlen die Verwendung eines
kabellosen Maus- und Tastaturkits.
Cuando se inicia el sistema por primera vez, debe conectar un ratón para completar la configuración inicial.
Recomendamos usar un kit inalámbrico de ratón y teclado.
Lorsque vous démarrez le système pour la première fois, vous devez connecter une souris pour terminer la con�guration initiale.
Nous vous recommandons d'utiliser le kit de clavier et souris sans �l.
Projector
Display
MTouchⅡ
...
CAT5e
CAT5e
CAT5e
CAT5e
Camera-Hub
HDMI
MCore
CAT5e
USB3.0 to RJ45 Adapter
USB3.0转RJ45转接头
USB3.0-RJ45-Adapter
Adaptador USB3.0 a RJ45
Adaptateur USB 3.0 vers RJ45
USB Tpye-C Cable (with an HDMI adapter)
USB Tpye-C线 (带HDMI转接头）
USB Typ-C-Kabel (mit HDMI-Adapter)
Cable USB Tpye-C (con un adaptador HDMI)
Câble USB type C (avec adaptateur HDMI)
HDMI
Switch
交换机
Schalter
Cambiar
Commutateur
UVC84
VCH DC48V Video out Line out
UVC84
VCH DC48V Video out Line out
Ethernet Cable
网线
Ethernet-Kabel
Cable Ethernet
Câble Ethernet
MSpeakerⅡ
...
MSpeakerⅡ
CAT5e
CAT5e
VCM38/VCM34
CAT5e
CAT5e
VCM38/VCM34
CAT5e
IEEE 802.3af
compliant PoE Switch
IEEE 802.3af 标准
PoE交换机
PoE-Switch entspricht
IEEE 802.3af
Switch PoE compatible
con IEEE 802.3af
Commutateur IEEE
802.3af compatible PoE
...
(Optional)
(可选)
(Optional)
(Opcional)
(Facultatif)
(Optional)
(可选)
(Optional)
(Opcional)
(Facultatif)
(Optional)
(可选)
(Optional)
(Opcional)
(Facultatif)
(Optional)
(可选)
(Optional)
(Opcional)
(Facultatif)
If you connect a PoE switch to the UVC84, , the AC power adapter is not required.
如果使用PoE交换机连接UVC84，无需再给UVC84额外供电。
Wenn Sie einen PoE-Switch an den UVC84 anschließen, ist das Netzteil nicht erforderlich.
Si conecta un conmutador PoE al UVC84, no se requiere el adaptador de alimentación de CA.
Si vous connectez un commutateur PoE à l'UVC84, l'adaptateur secteur n'est pas nécessaire.

Yealink MVC640 Specifications

General

Bluetooth	Yes
Pan range	-100 - 100 °
Product type	Group video conferencing system
Product color	Black, Grey
Tilt angle range	-45 - 90 °
Number of persons	- person(s)
Signal-to-Noise Ratio (SNR)	63 dB
Processor family	Intel® Core™ i5
Computer system type	Mini PC
Operating system installed	Windows 10 IoT Enterprise
Internal memory	8000 MB
Storage media type	SSD
Total storage capacity	128 GB
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB connector type	USB Type-A, USB Type-B
Ethernet LAN (RJ-45) ports	1
HDMI output ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Telepresence	-
Display diagonal	8 \
Touchscreen type	Capacitive
Display resolution	1280 x 800 pixels
Megapixel	- MP
Camera type	Single camera
Digital zoom	3 x
Optical zoom	12 x
Focus adjustment	Auto
Image sensor size	- \
Focal length range	3.9 - 46.8 mm
Aperture range (F-F)	1.6 - 2.8
Camera shutter speed	1/60 - 1/10000 s
Minimum illumination	0.1 lx
Diagonal field of view	80 °
Vertical field of view	45 °
Horizontal field of view	73 °
Maximum frame rate	30 fps
Speaker power	10 W
Frequency range	100 - 20000 Hz
Microphone pick-up range	6 m
Output voltage Total Harmonic Distortion (THD)	1 %
Number of microphone arrays	3
Current	0.7 A
AC input voltage	100-240 V
DC input voltage	48 V
Power source type	AC
Harmonized System (HS) code	85176990

Weight and Dimensions

Weight	7600 g
