Yealink SIP-T27G Auto Provisioning Guide

Getting Started
5
Obtaining Template Files
You can ask the distributor or Yealink FAE for template files. You can also obtain them online:
http://support.yealink.com/documentFront/forwardToDocumentFrontDisplayPage.
To download template boot, configuration and resource files:
1. Go to Yealink Document Download page and select the desired phone model.
2. Download and extract the combined template files to your local system.

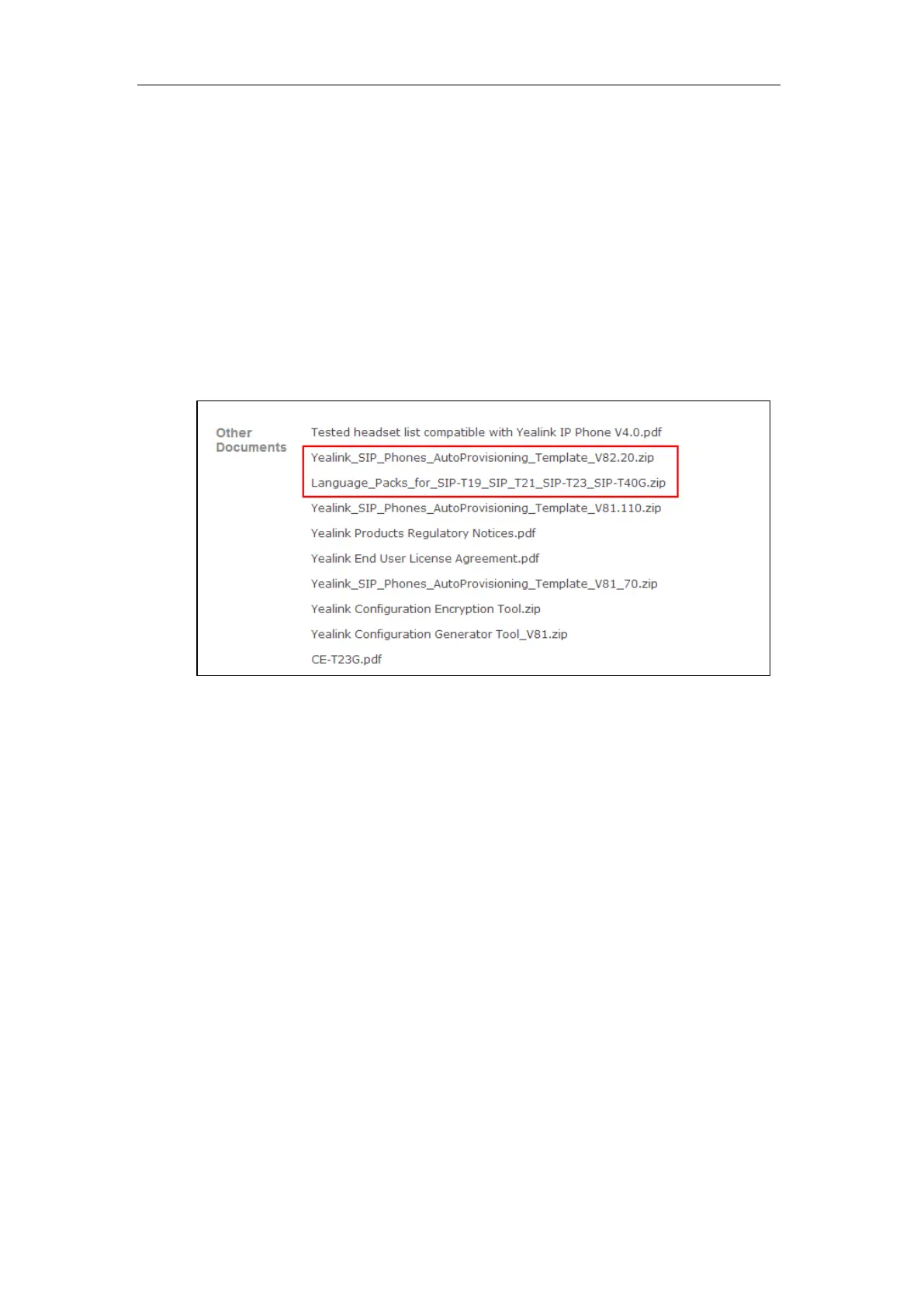

For example, the following illustration shows the template files available for SIP-T23G IP
phones running firmware version 82.
3. Open the folder you extracted and identify the files you want to edit.
Obtaining Phone Information
Before provisioning, you also need the IP phone information. For example, MAC address and the
SIP account information of the IP phone.
MAC Address: The unique 12-digit serial number of the IP phone. You can obtain it from the
bar code on the back of the IP phone.
SIP Account Information: This may include SIP credentials such as user name, password and IP
address of the SIP server. Ask your system administrator for SIP account information.

Yealink SIP-T27G Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black, Gold
Wall mountable	Yes
Display diagonal	3.66 \
Display resolution	240 x 120 pixels
RJ-9 ports quantity	2
USB 2.0 ports quantity	1
Voice codecs	CNG, G.711, G.722, G.723.1, G.726, G.729, G.729ab, VAD, iLBC
Dual-Tone Multi-Frequency (DTMF) modes	SIP info
Lines quantity	8 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	6
Bluetooth	-
Security algorithms	AES, MD5
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af
Ethernet LAN interface type	Gigabit Ethernet
Volume control	Digital
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	210 mm
Width	265 mm
Height	170.5 mm
