Yealink SIP-T27G Auto Provisioning Guide

Obtaining the Provisioning Server Address
35

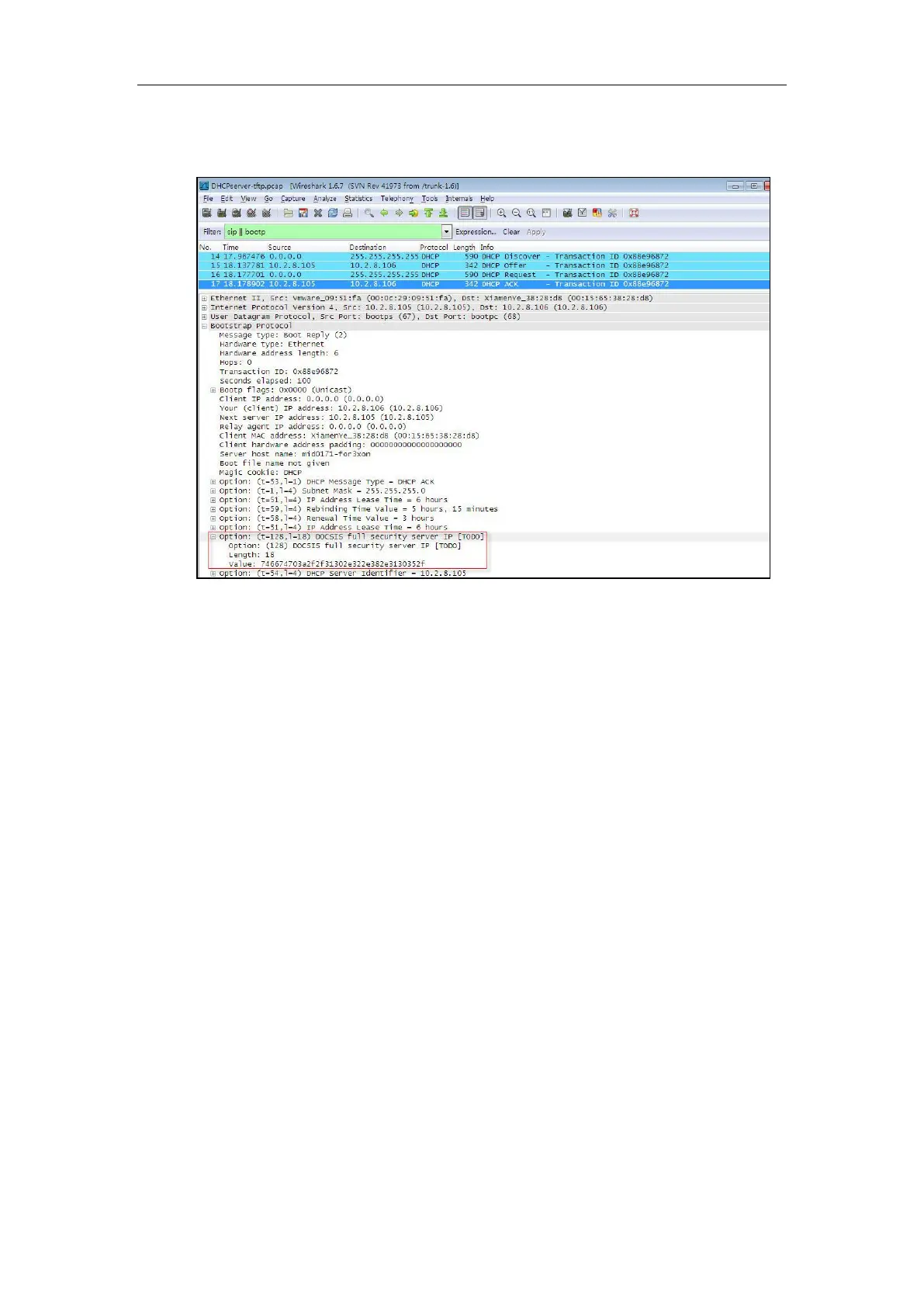

The following figure shows the example messages of obtaining the TFTP server address from an
IPv4 custom DHCP option:
Right click the root node of the custom option (e.g., option 128) shown on the above figure, and
select Copy->Bytes->Printable Text Only. Paste the copied text in your favorite text editor to
check the address, for example, tftp://192.168.1.100/.
Phone Flash
Yealink IP phones can obtain the provisioning server address from the IP phone flash. To obtain
the provisioning server address by reading the IP phone flash, make sure the configuration is set
properly.
To configure the IP phone flash via web user interface:
1. Click on Settings->Auto Provision.

Yealink SIP-T27G Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black, Gold
Wall mountable	Yes
Display diagonal	3.66 \
Display resolution	240 x 120 pixels
RJ-9 ports quantity	2
USB 2.0 ports quantity	1
Voice codecs	CNG, G.711, G.722, G.723.1, G.726, G.729, G.729ab, VAD, iLBC
Dual-Tone Multi-Frequency (DTMF) modes	SIP info
Lines quantity	8 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	6
Bluetooth	-
Security algorithms	AES, MD5
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af
Ethernet LAN interface type	Gigabit Ethernet
Volume control	Digital
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	210 mm
Width	265 mm
Height	170.5 mm
