Yealink SIP-T27G Auto Provisioning Guide

Yealink IP Phones Auto Provisioning Guide
44

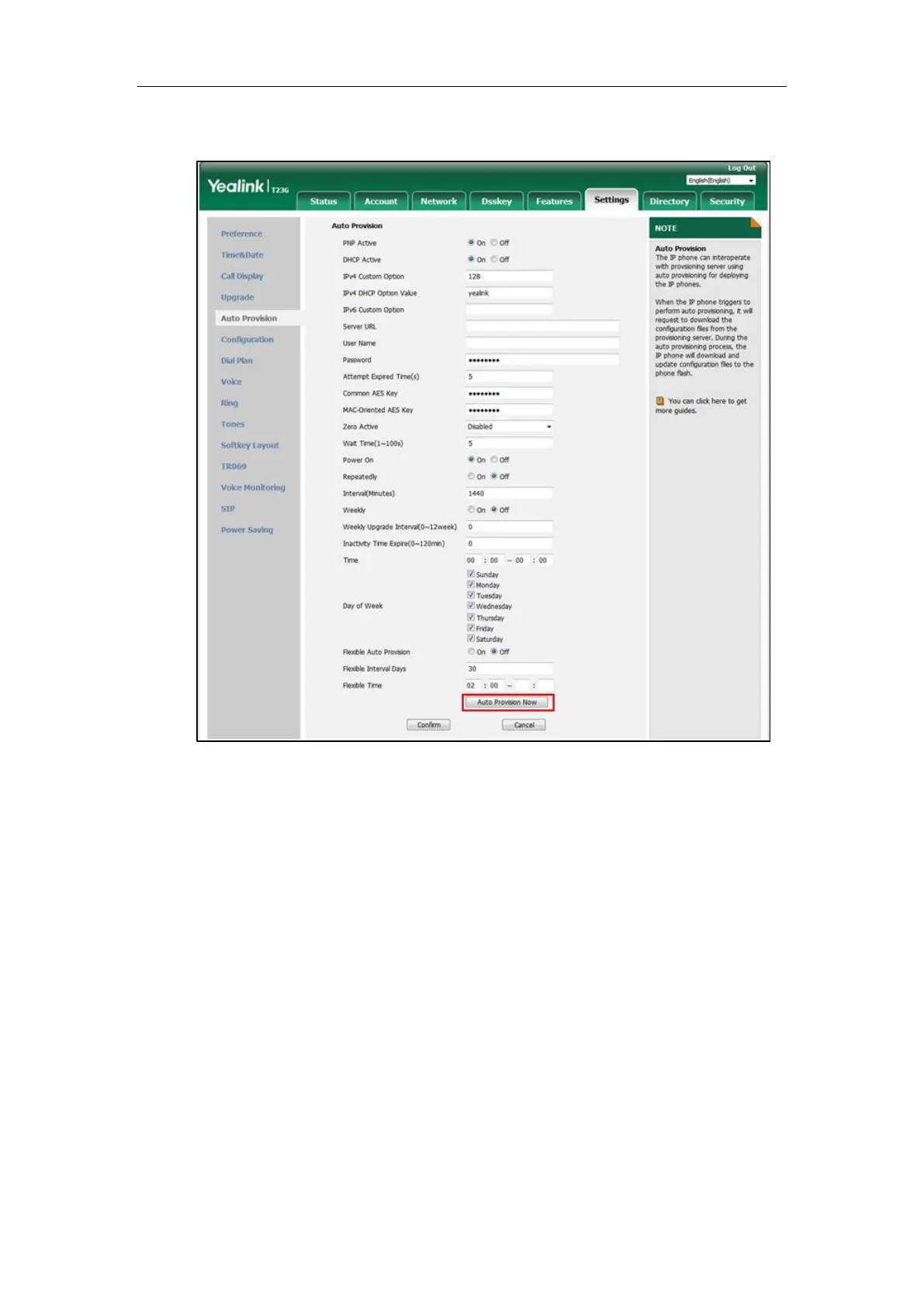

2. Click Auto Provision Now.
The IP phone will perform auto provisioning immediately.
Multi-mode Mixed
You can activate more than one method for auto provisioning. For example, you can activate the
“Power On” and “Repeatedly” modes simultaneously. The IP phone will perform auto
provisioning when it is powered on and at a specified interval.
SIP NOTIFY Message
The IP phone will perform auto provisioning when receiving a SIP NOTIFY message which
contains the header “Event: check-sync”. Whether the IP phone reboots or not depends on the
value of the parameter “sip.notify_reboot_enable”. If the value is set to 1, or the value is set to 0
and the header of the SIP NOTIFY message contains an additional string “reboot=true”, the IP
phone will reboot immediately. For more information on the parameter
“sip.notify_reboot_enable”, refer to the latest IP Phones Description of Configuration Parameters

Yealink SIP-T27G Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black, Gold
Wall mountable	Yes
Display diagonal	3.66 \
Display resolution	240 x 120 pixels
RJ-9 ports quantity	2
USB 2.0 ports quantity	1
Voice codecs	CNG, G.711, G.722, G.723.1, G.726, G.729, G.729ab, VAD, iLBC
Dual-Tone Multi-Frequency (DTMF) modes	SIP info
Lines quantity	8 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	6
Bluetooth	-
Security algorithms	AES, MD5
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af
Ethernet LAN interface type	Gigabit Ethernet
Volume control	Digital
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	210 mm
Width	265 mm
Height	170.5 mm
