Yealink SIP-T27G Auto Provisioning Guide

Yealink IP Phones Auto Provisioning Guide
64

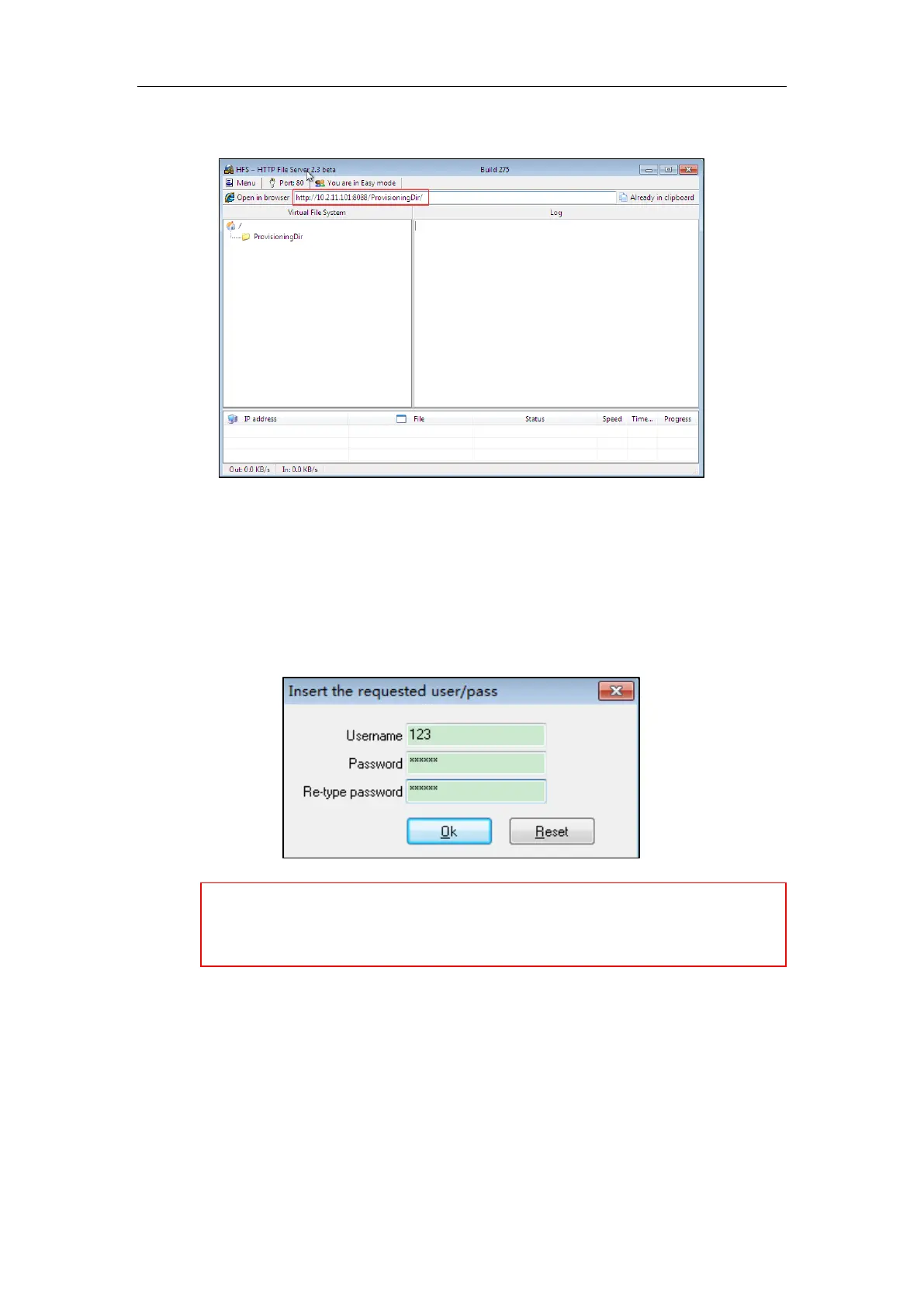

4. Locate the root directory from your local system.
5. Check the server URL (e.g., http://10.2.11.101:8088/ProvisioningDir) by clicking “Open in
browser”.
6. (Optional.) Right click the root directory name (e.g., ProvisioningDir), and then select Set
user/pass….
7. (Optional.) Enter the desired user name and password for the root directory in the
corresponding fields and then click OK.
Yealink IP phones also support the Hypertext Transfer Protocol with SSL/TLS (HTTPS) protocol for
auto provisioning. HTTPS protocol provides the encrypted communication and secure
identification. For more information on installing and configuring an Apache HTTPS Server, refer to
the network resource.

Yealink SIP-T27G Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black, Gold
Wall mountable	Yes
Display diagonal	3.66 \
Display resolution	240 x 120 pixels
RJ-9 ports quantity	2
USB 2.0 ports quantity	1
Voice codecs	CNG, G.711, G.722, G.723.1, G.726, G.729, G.729ab, VAD, iLBC
Dual-Tone Multi-Frequency (DTMF) modes	SIP info
Lines quantity	8 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	6
Bluetooth	-
Security algorithms	AES, MD5
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af
Ethernet LAN interface type	Gigabit Ethernet
Volume control	Digital
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	210 mm
Width	265 mm
Height	170.5 mm
