Yealink SIP-T41S Getting Started

Recovery Mode on Yealink IP phones
11
For W52P/W56P/W60B Base
For the W52P/W56P/W60B base, there is no screen to show information for you. The W52P/W56P/W60B
base uses 192.168.0.100 as its default IP address, so you need to configure a static IP address for your
local PC where you have the TFTP server installed.
Procedures

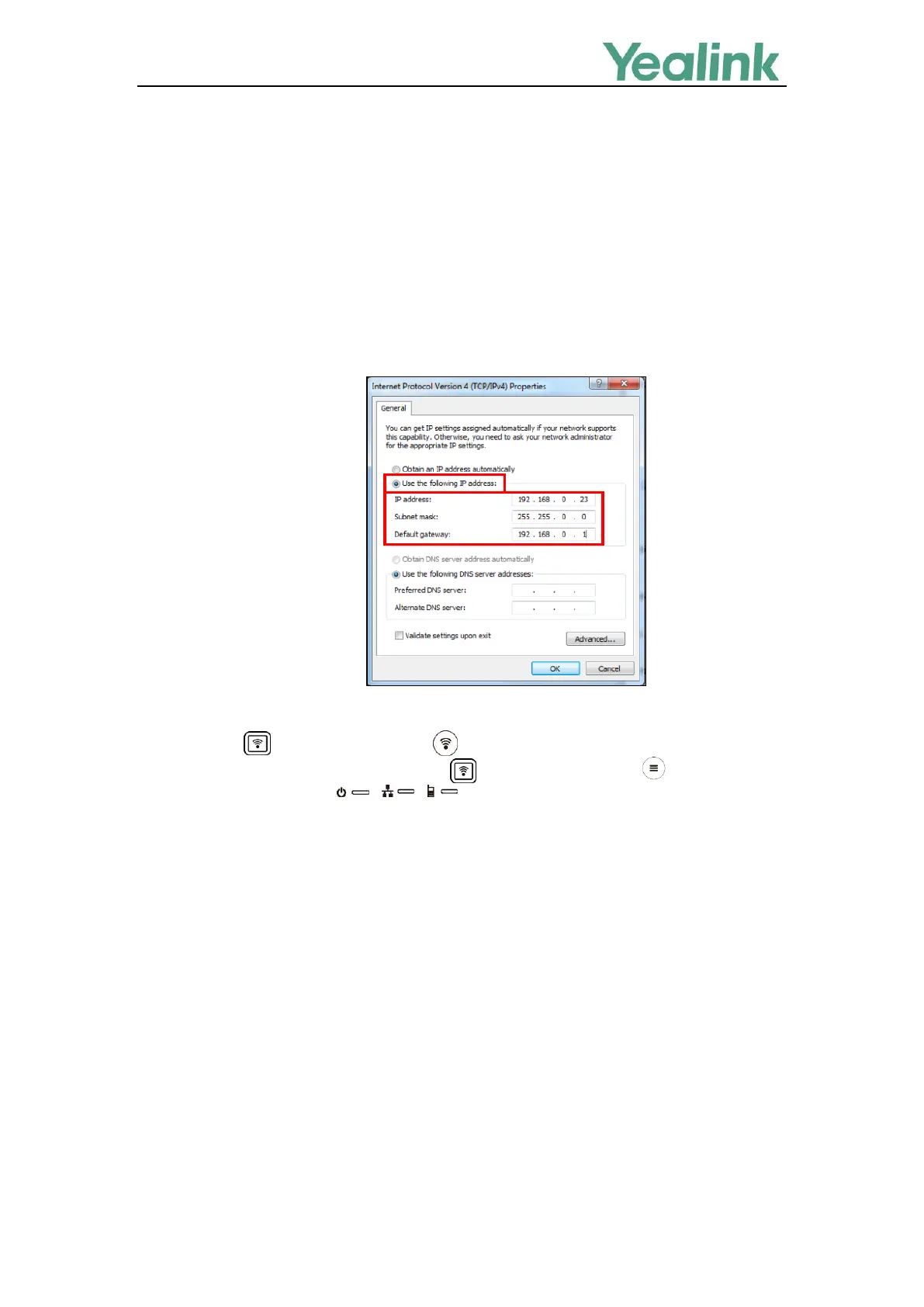

1. Configure the static IP address on your local PC.
It must be configured as below:
2. Click OK twice to save the settings.
3. Long press (for W52P/W56P base) or (for W60B base) and reconnect the power adapter
to trigger the recovery mode. Do not release (for W52P/W56P base) or (for W60B base)
until three LED indicators ( -> -> in turn) are all turned on.
The W52P/W56P/W60B base will download and upgrade the firmware from the TFTP server.
You can view the syslog of the TFTP server to check if the W52P/W56P/W60B base downloads the
firmware successfully as shown below:

Yealink SIP-T41S Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Keypad illumination	Yes
Wi-Fi	No
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Supported network protocols	SIP v1, SIP v2, LLDP/CDP/DHCP, OpenVPN, IEEE802.1X, IPv6, FTP/TFTP/HTTP/HTTPS
Volume control	Digital
Number of programmable keys	6
Lines quantity	6 lines
Phonebook capacity	1000 entries
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Input frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	1.2 A
AC adapter output voltage	5 V
Display diagonal	2.7 \
Display resolution	192 x 64 pixels
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Voice codecs	CNG, G.711Mu, G.711a, G.723.1, G.726, G.729ab, VAD, iLBC
Certification	CE
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	189 mm
Width	212 mm
Height	175 mm
Package depth	223 mm
Package width	246 mm
Package height	120 mm
