Yealink SIP-T46U Recovery Guide

Recovery Mode on Yealink IP phones
4
Configuring the HTTP Server
This section shows how to configure a HTTP server for the windows system using the HFS tool. You can
download the HFS software online: http://www.snapfiles.com/get/hfs.html. If there is a HTTP server
installed on your local system, you can skip this section and go to the next.
Procedures
1. Create an HTTP root directory on the local system.
2. Place resource files to this root directory.
3. Double click the hfs.exe to start the application.

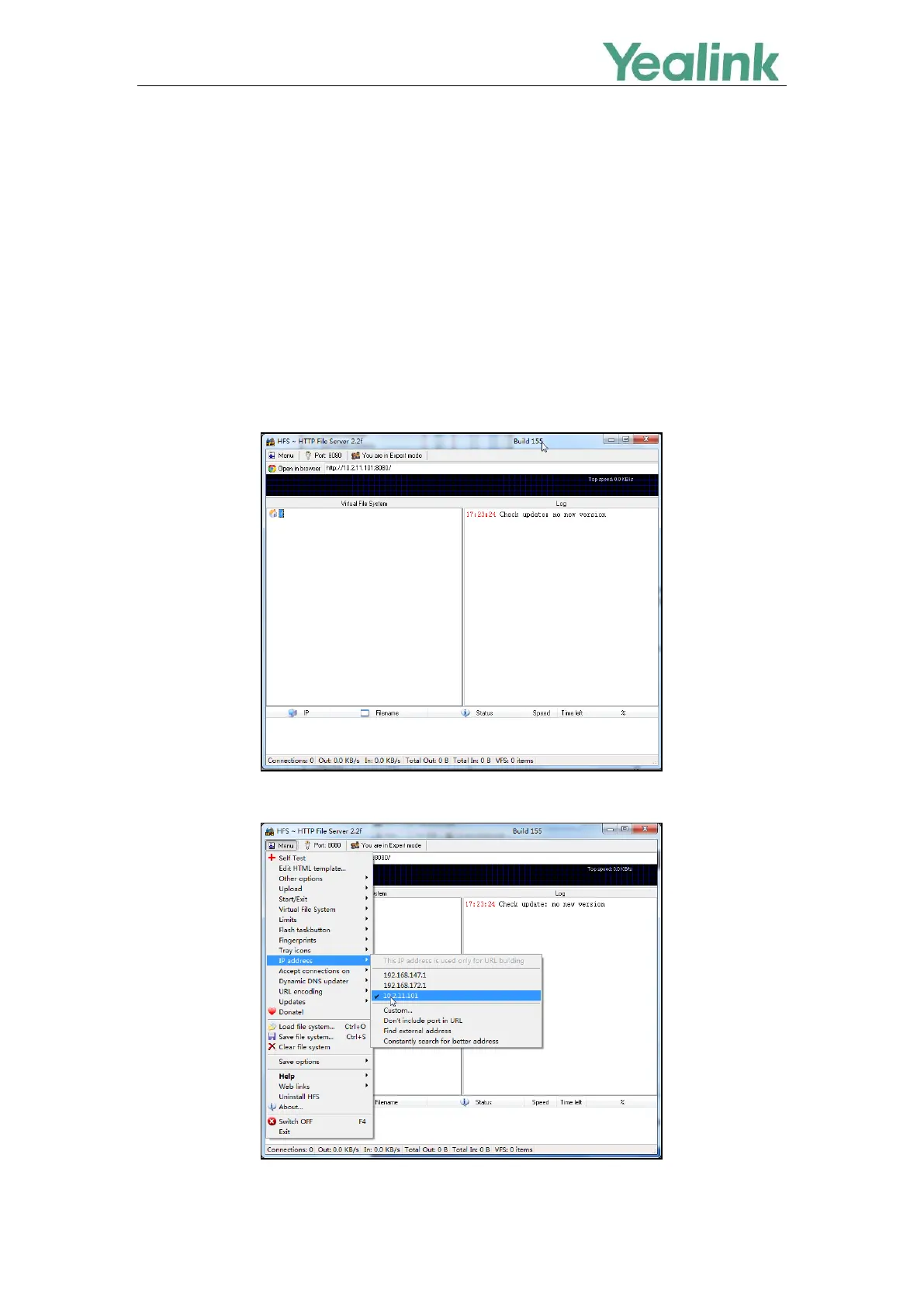

The main configuration page is shown as below:
4. Click Menu in the main page and select the IP address of the PC from IP address.

Yealink SIP-T46U Specifications

General

Handset type	Wireless handset
Product type	IP Phone
Product color	Gray
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Expansion module support	Yes
Ethernet LAN (RJ-45) ports	2
Security algorithms	AES, HTTPS, SRTP, TLS
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Front camera	-
AC adapter input voltage	100 - 240 V
Display diagonal	4.3 \
Display resolution	480 x 272 pixels
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Voice codecs	AGC, AJB, AMR-WB, CNG, G.711, G.722, G.723.1, G.726, G.729ab, VAD, iLBC
Number of handles included	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	213 mm
Width	244 mm
Height	185 mm
