Yealink SIP-T54W Auto Provisioning Guide

Yealink IP Phones Auto Provisioning Guide
32
The default value is 5.
4. Click Confirm to accept the change.

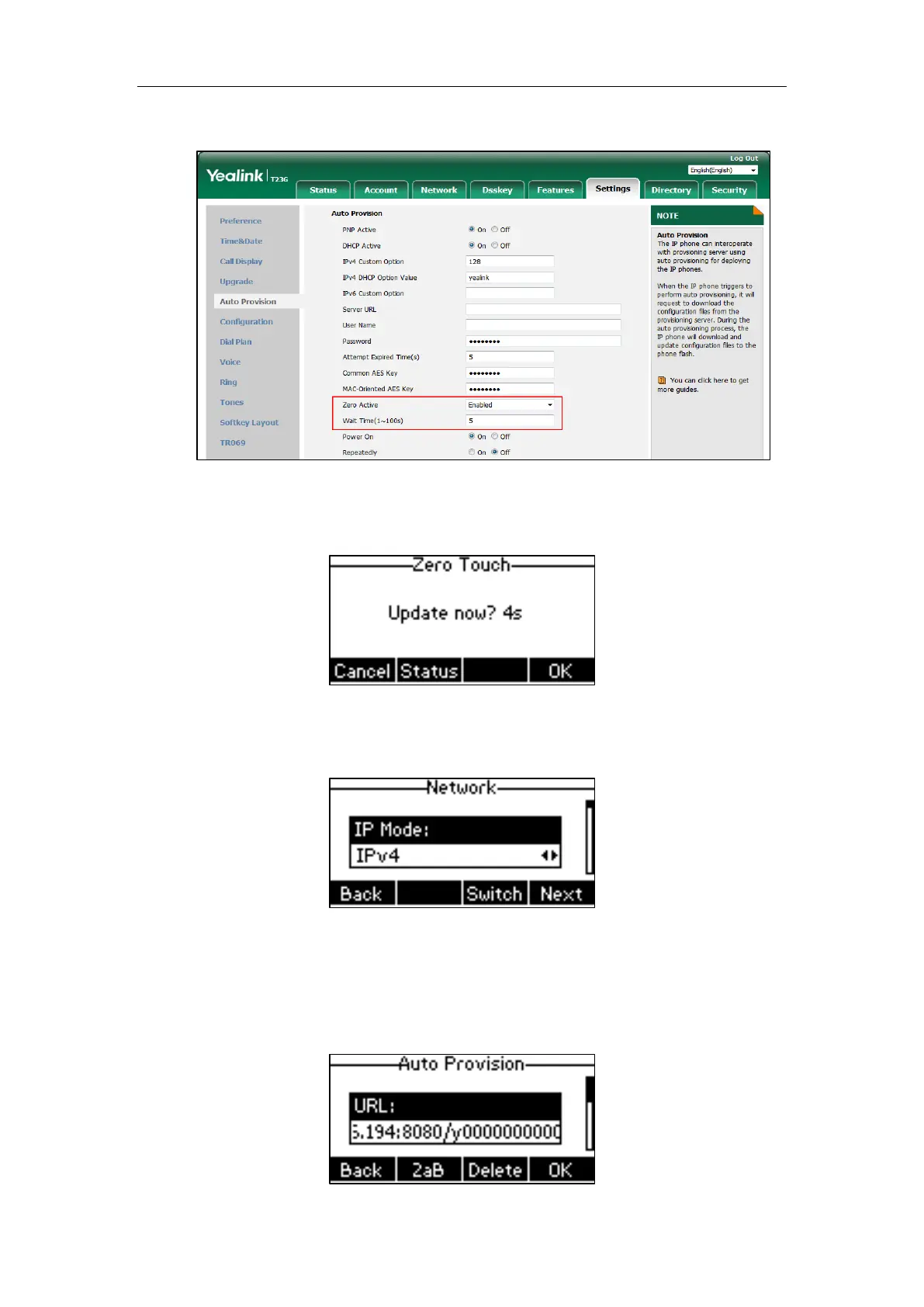

When Zero Touch is enabled, there will be a configuration wizard during startup:
Press the OK soft key.
The network parameters are configurable via phone user interface:
Press the Next soft key after finishing network settings.
Configure the provisioning server address, authentication user name (optional) and password
(optional) in the Auto Provision screen.
An example of screenshot is shown as below:

Yealink SIP-T54W Specifications

General

Connectivity	Dual-port Gigabit Ethernet
SIP Accounts	16
Opus Codec Support	Yes
Audio Features	HD voice with Yealink Acoustic Shield technology
Expansion Module	Supports up to 3 EXP50 expansion modules
Power over Ethernet (PoE)	Yes
Headset Support	Yes, RJ9 headset port, USB headset support, Bluetooth headset support
Resolution	480 x 272 pixels
Bluetooth	Yes, Bluetooth 4.2
USB Ports	2 (USB 2.0)
