Yealink W76P User Manual

5
Charge the handset
+ After setting up the handset and charger, place the handset in the charger.
+ The handset battery takes about 3 hours to fully charge. The charging status is displayed on the top right hand corner
of the LCD screen.
Attach the Belt Clip
+ Push the clip onto the back of the handset.
+ Insert the clip into the designated notches in the handset.
After the base station starts up successfully and the handset is registered to the base station, all LEDs on the base station
will illuminate green in sequence.
1. Paging Key - Locates a misplaced handset.
Toggles the registration mode.
Resets the base station to factory settings.
2. Registration LED - Indicates the mode of the base station.
+ Fast flashing green - paging mode.
+ Slow flashing green - registration mode.
+ Solid green - there is at least one handset registered to the base.
+ Off - the base is powered off or no handsets are registered to base.
3. Network Status LED - Indicates the network status.
+ Slow flashing green - network is unavailable.
+ Solid green - network is available.
+ Off - base is powered off.
4. Power Indicator LED - Indicates the power status of the base station.
+ Slow flashing green - base is going through a firmware upgrade.
+ Solid green - base is powered on.
+ Off - base is powered off.

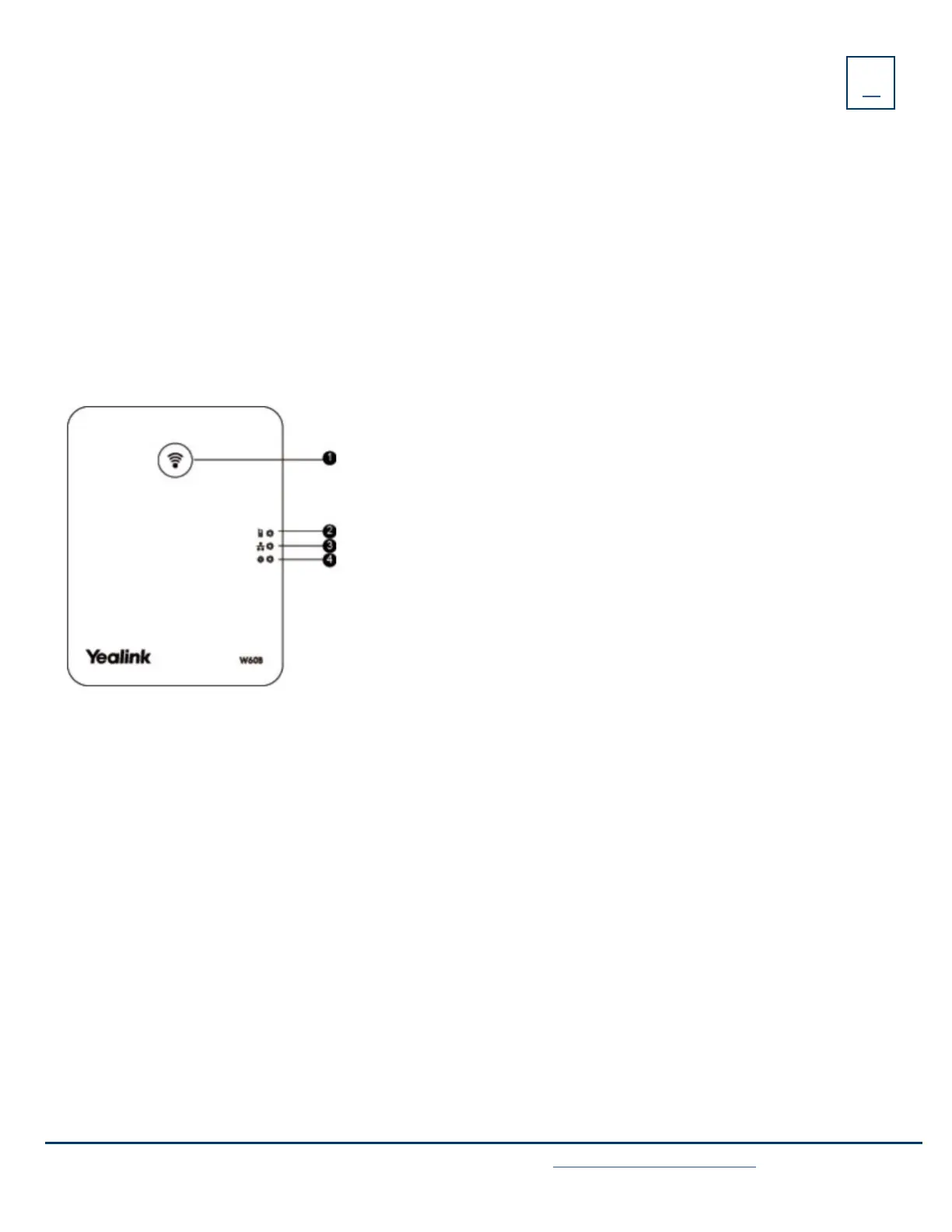

W70B BASE STATION FEATURES
Need support? Connect with us at www.northland.net/support or
Dial 4357 (HELP) or 315-671-6262 to speak to a Northland Training Representative
IMPORTANT NOTE: If installing multiple base stations, they must be at least 6 feet apart.

Yealink W76P Specifications

General

Mounting	Desk/Wall
Device lock	Yes
Handset type	Wireless handset
Product type	IP mobile phone
Product color	Gray
Wi-Fi	-
Networking standards	IEEE 802.1af
Ethernet LAN data rates	10, 100 Mbit/s
Frequency band	1.9 GHz
Lines quantity	20 lines
Phonebook capacity	1000 entries
AC adapter input voltage	100 - 240 V
Number of function keys	6
Display diagonal	2.4 \
Display resolution	240 x 320 pixels
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Number of handles included	- pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Base dimensions	130 x 100 x 25.1 mm
Handset dimensions (WxDxH)	175 x 53 x 20.3 mm
